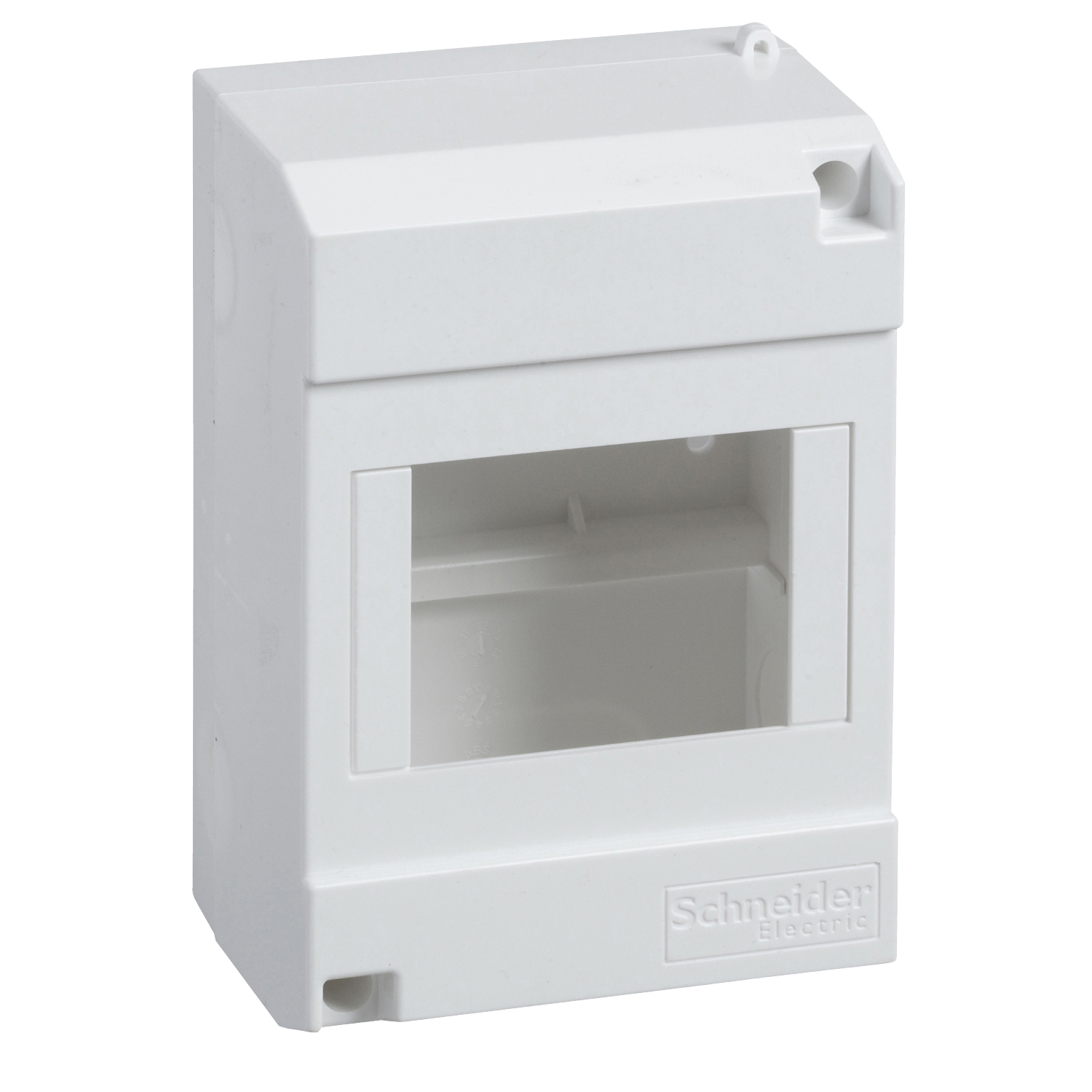

Schneider 10206 | Micro Pragma surface enclosure – IP30 – 1x4modules – reversible transparent door

Description

Schneider 10206 | Micro Pragma surface enclosure – IP30 – 1x4modules – reversible transparent door

1. Technical Specifications 10206

• Product Reference: Schneider Electric 10206

• Series: Micro Pragma

• Enclosure Type: Surface-mounted modular enclosure

• Number of Rows: 1

• Modules per Row: 4

• Total Module Capacity: 4 DIN modules

• Mounting Type: Wall/surface mounting

• Door Type: Transparent, reversible hinged door

• Ingress Protection (IP Rating): IP30 (protection against solid objects >2.5mm, no water protection)

• Impact Resistance (IK Rating): IK07 (protection against medium impacts)

• Material: High-grade plastic (thermoplastic, self-extinguishing)

• Color: White enclosure with clear door

• Insulation Class: Class II (double insulated)

• Ambient Operating Temperature: -5°C to +60°C

• Conformity: IEC 60670-24, CE compliant, RoHS compliant

• Halogen-Free: Yes

2. Key Features

• Compact and elegant design suitable for residential and light commercial applications

• Accommodates up to 4 modular devices on a single DIN rail

• Reversible transparent door allows flexible installation and easy access from either side

• IP30 protection makes it suitable for indoor environments with minimal dust exposure

• IK07 impact resistance ensures basic protection against accidental bumps or handling

• Easy to install on any flat wall surface with rear mounting holes

• Removable front cover allows convenient device wiring and configuration

• Provides safe housing for low-voltage circuit protection and control devices

• Lightweight construction and modern appearance ideal for visible interior spaces

• Manufactured from halogen-free material to reduce toxic emissions in case of fire

3. Applications

• Ideal for small-scale electrical distribution in residential flats, homes, and offices

• Used to house circuit protection devices such as miniature circuit breakers (MCBs) and residual current devices (RCDs)

• Suitable for mounting doorbell transformers, timers, relays, or lighting controllers

• Applicable in utility closets, corridors, or interior rooms requiring compact protection enclosures

• Useful for extensions or branch circuits that require a small local panel

• Can be used in home automation and control systems where minimal module space is required
