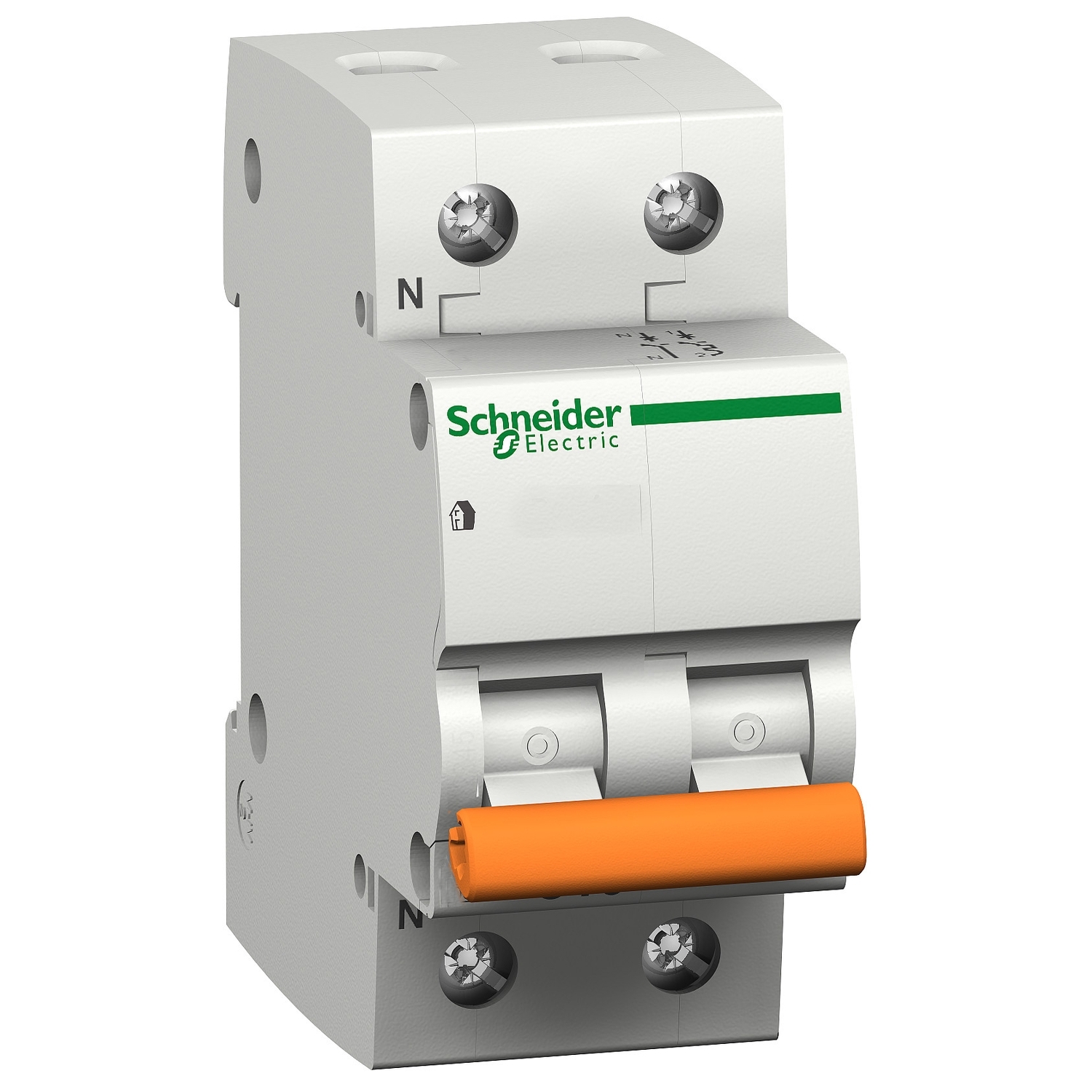

Schneider 12496 | Miniature circuit breaker (MCB), Domae, 2P, 20A, C curve, 4500A (IEC/EN 60898-1)

Description

Schneider 12496 | Miniature circuit breaker (MCB), Domae, 2P, 20A, C curve, 4500A (IEC/EN 60898-1)

Technical Specifications

• Manufacturer: Schneider Electric

• Product Type: Miniature Circuit Breaker (MCB)

• Series: Domae

• Number of Poles: 2P (Double Pole)

• Rated Current: 20 Amperes

• Tripping Curve: C Curve

• Breaking Capacity: 4500 A

• Standard Compliance: IEC/EN 60898-1

• Rated Voltage: Up to 230/400V

• Mounting Type: DIN Rail

• Protection Degree: IP20 (when installed inside an enclosure)

• Mechanical Life: Up to 20,000 operations

• Width: 2 DIN modules

Key Features

1. High Safety Level
   Offers efficient protection against both overloads and short circuits, ensuring the safety of electrical installations and connected devices.

2. Compact Design
   Small and space-saving, ideal for use in limited-space panels and distribution boards.

3. Easy Installation
   Quick and secure DIN rail mounting makes installation and replacement fast and hassle-free.

4. Clear Status Indication
   Equipped with a visible indicator to show whether the breaker is ON or OFF, enhancing ease of monitoring.

5. Reliable Tripping Performance
   The C Curve allows it to tolerate moderate inrush currents while still providing prompt disconnection in fault conditions.

6. Durability and Long Service Life
   Designed for long-term use with high mechanical endurance and minimal maintenance requirements.

7. Environmental Compliance
   Made with materials that meet environmental safety standards, contributing to a more sustainable electrical system.

Applications

• Residential Installations
  Ideal for home circuits such as lighting, socket outlets, and small household appliances.

• Commercial Spaces
  Suitable for use in offices, shops, and light commercial buildings to protect electrical circuits.

• Pre-Wired Electrical Boards
  Commonly used in ready-made distribution boards for quick and safe protection.

• Construction Projects
  A reliable solution for electrical safety in new residential and commercial building projects.

• Small Solar Systems
  Can be used in low-power solar panel installations to protect individual circuits.
