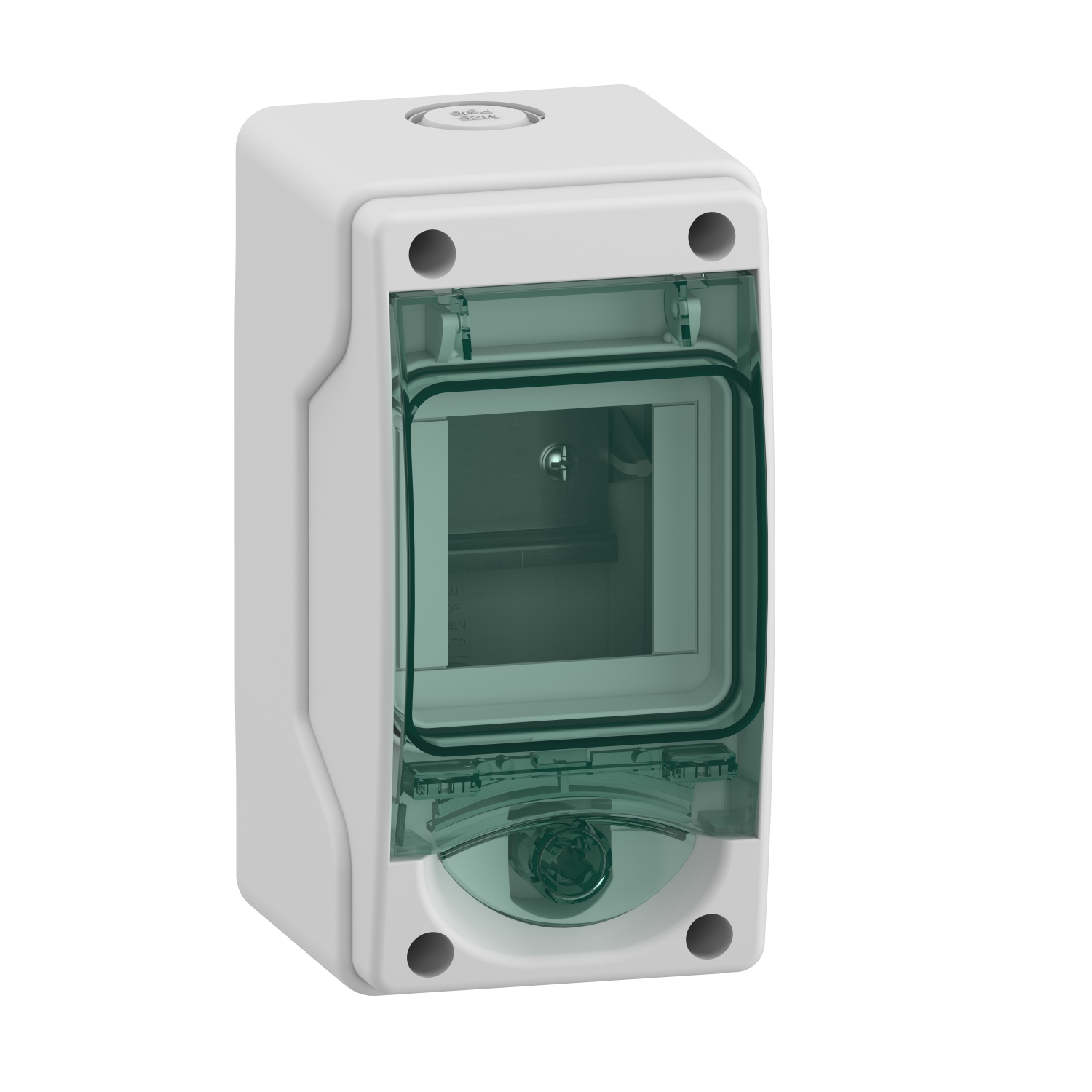

Schneider 13975 | mini Kaedra – for modular device – 1 openings – 3 modules
1. Technical Specifications 13975
-
Product Reference: Schneider Electric 13975
-
Product Series: Mini Kaedra
-
Enclosure Type: Modular enclosure for DIN rail-mounted devices
-
Mounting Style: Surface-mounted
-
Number of Openings: 1
-
Number of Modules: 3 (suitable for 3 modular-width devices)
-
Device Mounting: DIN rail
-
Ingress Protection (IP): IP65 (dust tight and protected against water jets)
-
Impact Resistance (IK): IK09 (high protection against mechanical impact)
-
Material: High-quality thermoplastic (polycarbonate or ABS)
-
Cover Type: Transparent, hinged front cover
-
Color: Light grey body with transparent cover
-
Insulation Class: Class II (double insulation)
-
Ambient Operating Temperature: -25°C to +60°C
-
Compliance Standards: IEC 60670-24, CE marked, RoHS compliant
-
Halogen-Free: Yes
2. Key Features
-
Compact and space-saving design, ideal for small electrical circuits or installations
-
Suitable for up to 3 DIN rail modular devices such as MCBs, RCDs, or control relays
-
Transparent hinged cover allows for quick inspection of devices without opening the enclosure
-
IP65 protection ensures safe use in dusty and wet environments
-
IK09 rating offers strong impact resistance, protecting the installed components from mechanical damage
-
High-quality UV-resistant material ensures long-lasting performance even in outdoor applications
-
Double insulation (Class II) provides enhanced user safety and electrical protection
-
Easy cable entry through knockouts for fast and clean wiring
-
Halogen-free design reduces toxic smoke in case of fire, making it suitable for safety-critical areas
-
Lightweight construction for easy and quick wall or panel installation
3. Applications
-
Ideal for small electrical distribution setups in commercial, industrial, or residential areas
-
Used to mount protective devices like miniature circuit breakers (MCBs), earth leakage circuit breakers (RCDs), or control modules
-
Suitable for external or semi-outdoor installations such as gates, lighting circuits, or pumps
-
Commonly used in workshops, garages, agricultural buildings, and temporary setups
-
Can be used in solar or low-voltage DC systems where limited number of protection devices are needed
-
Perfect for adding circuit protection near point-of-use loads in decentralized installations
