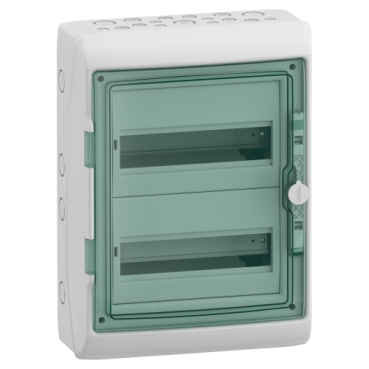

Schneider 13983 | Kaedra – for modular device – 2 x 12 modules – 1+1 terminal blocks

Description

Schneider 13983 | Kaedra – for modular device – 2 x 12 modules – 1+1 terminal blocks

1. Technical Specifications 13983

• Product Reference: Schneider Electric 13983

• Product Series: Kaedra

• Type: Modular enclosure for DIN-rail devices

• Mounting Type: Surface-mounted

• Number of Rows: 2

• Modules per Row: 12

• Total Modular Capacity: 24 modules

• Terminal Blocks: 2 (1 for neutral, 1 for earth)

• Cover Type: Transparent hinged cover

• Degree of Protection (Ingress): IP65 (dust-tight and water jet resistant)

• Impact Resistance: IK09 (high resistance to mechanical impact)

• Material: High-strength polycarbonate (UV-resistant)

• Color: Light grey

• Electrical Insulation Class: Class II (double insulation)

• Operating Temperature Range: -25°C to +60°C

• Conformity Standards: IEC 60670-24, RoHS, CE certified

• Halogen-Free: Yes (environmentally safe)

2. Key Features

• Robust and compact design suitable for harsh environments

• High IP65 rating ensures excellent protection against dust and water, ideal for outdoor and humid areas

• IK09 impact rating provides strong mechanical protection, preventing damage to internal components

• Transparent cover allows easy visual inspection of installed devices without opening the panel

• Easy cable entry and exit with pre-marked knockout holes for cable glands

• Equipped with neutral and earth terminal blocks to simplify wiring and organization

• Supports a wide range of modular devices such as MCBs, RCDs, contactors, timers, and surge protection devices

• High dielectric strength for user safety and system reliability

• Resistant to corrosion, UV radiation, and chemical exposure

• Halogen-free materials make it safer in case of fire and environmentally friendly

3. Applications

• Suitable for low-voltage electrical distribution in industrial and commercial facilities

• Ideal for mounting protective devices such as miniature circuit breakers (MCBs), residual current devices (RCDs), and surge arresters

• Commonly used in control panels for machines and industrial equipment

• Perfect for use in wet, dusty, or corrosive environments such as workshops, farms, chemical plants, and water treatment stations

• Recommended for outdoor installations in solar power systems and renewable energy setups

• Used in residential buildings where enhanced enclosure protection is needed

• Also applicable for temporary power distribution in construction sites, events, and mobile installations
