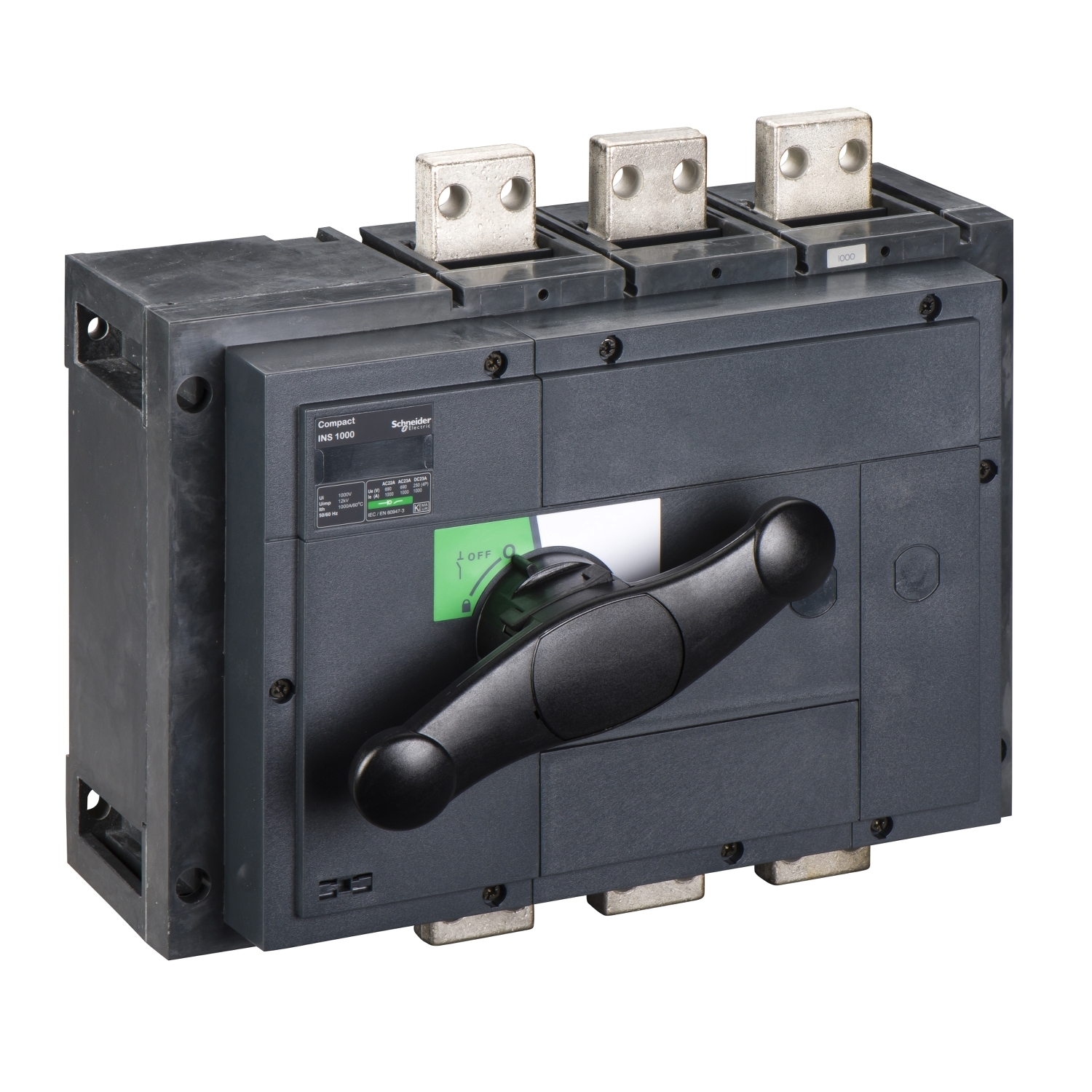

Schneider 31332 | switch disconnector, Compact INS1000 , 1000 A, standard version with black rotary handle, 3 poles
Technical Specifications
-
Manufacturer: Schneider Electric
-
Product Reference: 31332
-
Device Type: Switch Disconnector
-
Series: Compact INS1000
-
Rated Current (In): 1000 A
-
Number of Poles: 3P (Three Pole)
-
Rated Operational Voltage (Ue): Up to 690V AC
-
Utilization Category: AC-22A (for mixed resistive and inductive loads)
-
Switching Mechanism: Manual operation with rotary handle
-
Handle Type: Standard black rotary handle (front mounting)
-
Conformity Standards: IEC 60947-3
-
Mounting Method: Panel-mounted
-
Protection Degree:
-
Handle Front: IP40
-
Terminals (when enclosed): IP20
-
-
Mechanical Endurance: Up to 10,000 cycles
-
Electrical Endurance: Up to 2,000 cycles at full load
-
Terminal Capacity: Supports large cross-section cables and busbar connections
-
Padlocking Capability: Yes, for safety during maintenance
-
Dimensions: Optimized for space-saving installation in switchboards
Key Features
-
High-Current Isolation
Designed to isolate circuits carrying up to 1000A, suitable for large-scale electrical distribution systems. -
Secure Manual Operation
Features a robust rotary handle with clear ON/OFF status indication, ensuring safe and visible disconnection. -
Three-Pole Configuration
Provides complete disconnection of all three phases in one action, ensuring safe isolation in three-phase systems. -
Durable and Reliable Design
Built to withstand frequent operations and harsh environmental conditions in industrial settings. -
Standard Rotary Handle
Ergonomically designed front-mounted black handle allows easy and intuitive operation. -
Flexible Mounting and Accessories
Compatible with various accessories such as auxiliary contacts, terminal shields, and external handles for door interlocking. -
Clear Position Indication
Visual status ensures operators can easily confirm the switch position, enhancing safety during operation or service.
Applications
-
Main Isolation Switch in Power Panels
Acts as the primary disconnection device in large distribution boards and control panels. -
Industrial and Commercial Buildings
Suitable for isolating large sections of electrical infrastructure in factories, warehouses, and office buildings. -
Energy and Utility Systems
Commonly used in substations, energy management systems, and large renewable energy setups. -
Motor Control Centers (MCCs)
Ensures safe disconnection of motor circuits during maintenance or emergency events. -
Emergency Shutdown Systems
Installed as part of an E-stop system to quickly and safely disconnect high-current circuits. -
Critical Infrastructure Protection
Used in data centers, hospitals, and other essential facilities where reliability and safety are critical.
