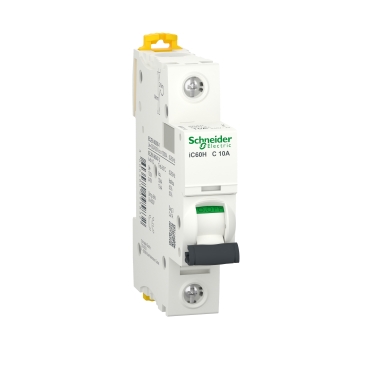

Schneider A9F87110 | Miniature circuit-breaker, Acti9 iC60H, 1P, 10 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)

• • 2. Technical Specifications A9F87110

    • Product Type: Miniature Circuit Breaker (MCB)

    • Model: A9F87110

    • Series: Acti9 iC60H

    • Poles: 1P (Single Pole)

    • Rated Current: 10 A

    • Tripping Curve: Type C

    • Breaking Capacity (IEC 60898-1): 10,000 A

    • Breaking Capacity (IEC 60947-2): 15,000 A

    • Rated Voltage: Up to 240/415 V AC

    • Frequency: 50/60 Hz

    • Mechanical Life: Up to 20,000 operations

    • Electrical Life: Up to 10,000 operations

    • Degree of Protection: IP20 (when installed inside an enclosure)

    • Insulation Voltage: 500 V

    • Ambient Operating Temperature: -25°C to +70°C

    • Installation Method: DIN rail

    • Compliance Standards: IEC 60898-1, IEC 60947-2

    3. Key Features

    1. Reliable Overcurrent Protection: Designed to trip under overload or short-circuit conditions to safeguard wiring and equipment.

    2. C Curve Sensitivity: Allows brief inrush currents from devices like lights and motors without nuisance tripping.

    3. Compact and Modular Design: Easily mounted on standard DIN rails, ideal for use in residential, commercial, and industrial panels.

    4. Enhanced Safety Indicators: Clear visual indicators to display circuit breaker status (ON/OFF/tripped).

    5. High Breaking Capacity: Withstands high fault currents (up to 15 kA) for added protection in high-risk environments.

    6. Long Operational Life: Durable design supports extensive mechanical and electrical usage.

    7. Wide Operating Temperature: Built to perform in challenging environmental conditions.

    4. Applications

    • Residential Circuits: Suitable for lighting and small appliance circuits in homes.

    • Small Commercial Installations: Ideal for branch circuits in offices, retail shops, and public areas.

    • Control Panels: Commonly used in control boards for protection of control wiring and small devices.

    • Light Industrial Applications: Supports safe operation in low-load sections of industrial environments.

Renewable Energy Subsystems: Can be used in low-current sections of solar or wind energy systems.
