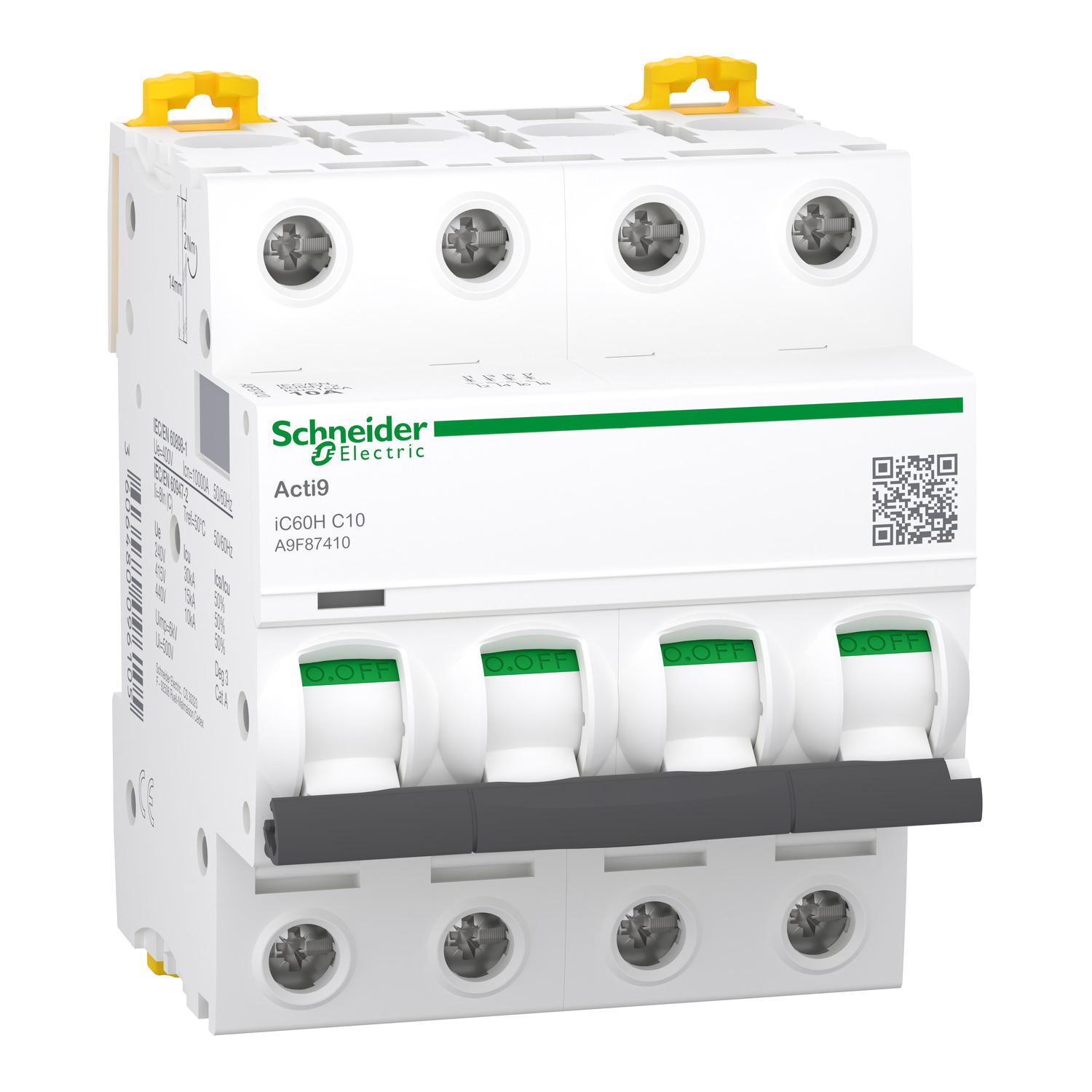

Schneider A9F87410 | Miniature circuit-breaker, Acti9 iC60H, 4P, 10 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)

Technical Specifications A9F87410

• Product Type: Miniature Circuit Breaker (MCB)

• Series: Acti9 iC60H

• Reference Code: A9F87410

• Number of Poles: 4P (Four-pole)

• Rated Current (In): 10 A

• Tripping Curve: C Curve (suitable for moderate inductive loads)

• Breaking Capacity:

  • 10 kA according to IEC 60898-1

  • 15 kA according to IEC 60947-2

• Rated Operational Voltage: 400/415 V AC

• Frequency: 50/60 Hz

• Degree of Protection: IP20 (higher with enclosure)

• Mechanical Endurance: Up to 20,000 operations

• Electrical Endurance: Up to 10,000 operations under load

• Mounting: DIN rail mounting

• Isolation Class: Class II (double insulation)

. Key Features

• High Breaking Capacity: Offers strong short-circuit protection with a high interrupting capacity, ensuring electrical safety even in demanding environments.

• C Curve Sensitivity: Designed to trip between 5 to 10 times the rated current, suitable for loads with moderate inrush currents such as motors and transformers.

• Compact and Modular: Space-saving design suitable for modern distribution boards.

• Easy Installation: Compatible with standard DIN rail mounting systems.

• Reliable Indicators: Part of the Acti9 system, featuring clear status indicators for trip position and safe disconnection.

• Environmentally Friendly: Made with recyclable materials and compliant with environmental standards.

• Accessory Compatibility: Supports a wide range of add-ons including auxiliary contacts, earth leakage modules, and remote control devices.

. Applications

The Schneider A9F87410 MCB is versatile and can be used in various sectors, including:

a. Residential Applications

• Protection of lighting circuits, sockets, and household appliances.

• Ensures safety from overcurrents and short circuits in home installations.

b. Commercial Buildings

• Widely used in malls, office complexes, and hotels to protect HVAC systems, elevators, lighting, and general power circuits.

c. Industrial Installations

• Ideal for protecting small motors, control panels, and distribution boards in manufacturing facilities and workshops.

d. Electrical Distribution Boards

• A preferred choice for sub-panels and main distribution boards due to its performance and compact size.

e. Renewable Energy Systems

• Can be integrated into solar PV systems and wind installations to protect AC circuits in hybrid or grid-tied setups.
