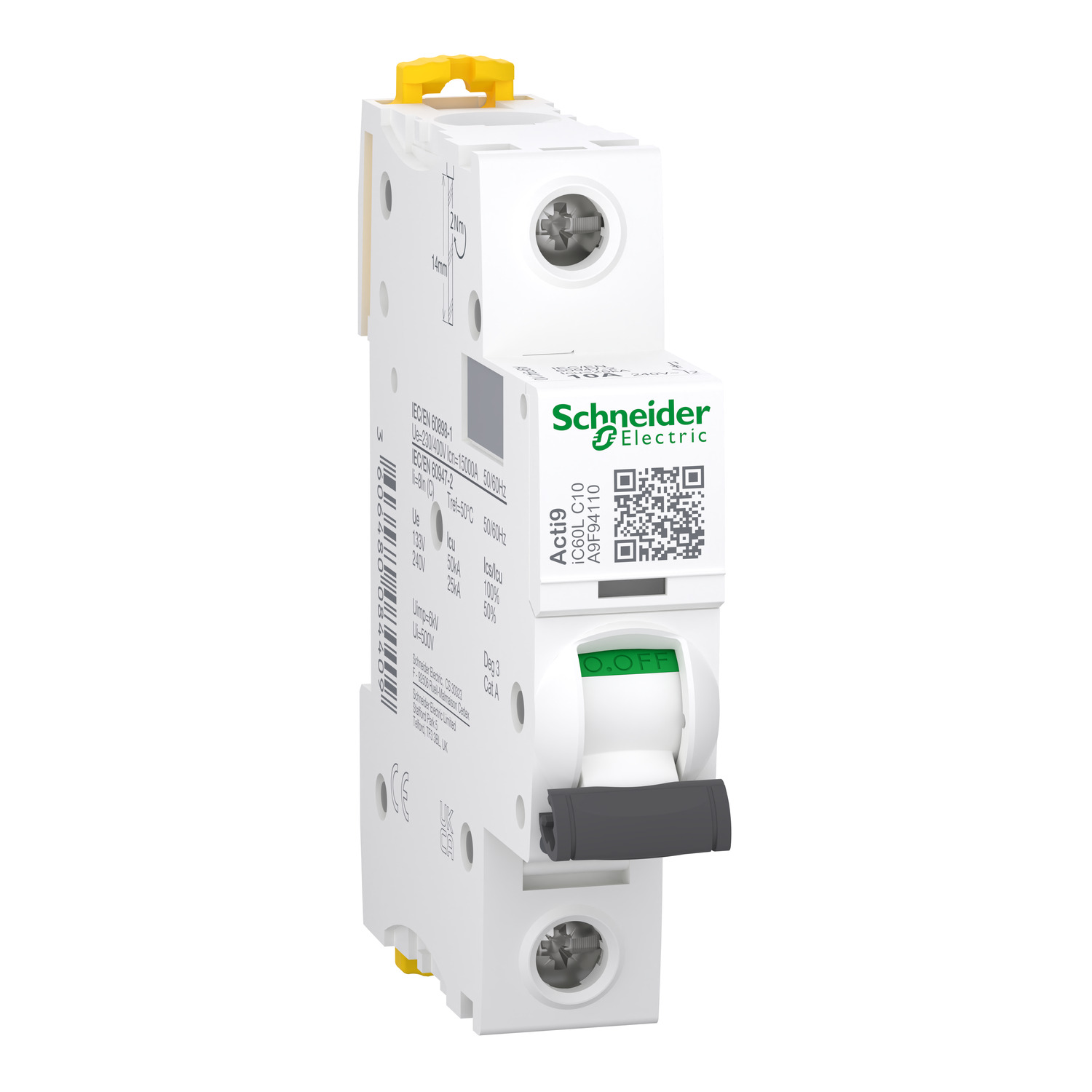

Schneider A9F94110 | Miniature circuit-breaker, Acti9 iC60L, 1P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)

Description

Schneider A9F94110 | Miniature circuit-breaker, Acti9 iC60L, 1P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)

Technical Specifications A9F94110

• Product Series: Acti9 iC60L

• Model Number: A9F94110

• Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 1P (Single Pole)

• Rated Current (In): 10 Amps

• Tripping Curve: C Curve (suitable for general-purpose loads with moderate inrush current)

• Breaking Capacity (IEC 60898-1): 15,000 A

• Breaking Capacity (IEC 60947-2): 25,000 A

• Rated Voltage: Up to 230/240V AC (single phase)

• Mounting: DIN rail compatible

• Standards Compliance: IEC 60898-1, IEC 60947-2

• Weight: Approx. 120–150 grams

2. Key Features

• High breaking capacity for maximum safety in demanding environments.

• C curve provides reliable protection for most standard residential and commercial applications.

• Compact design, easy to install in distribution boards and control panels.

• Supports accessory modules from the Acti9 range.

• VisiSafe technology offers clear visual indication of contact position for added safety during maintenance.

• Enhanced endurance and consistent tripping performance over time.

3. Applications

• Suitable for residential, commercial, and light industrial installations.

• Ideal for circuit protection in lighting, sockets, and standard equipment circuits.

• Can be used in individual device protection in automation and control systems.

• Effective for use in electrical panels where high short-circuit capacity is required.

• Recommended for projects requiring compliance with advanced international electrical standards
