Description

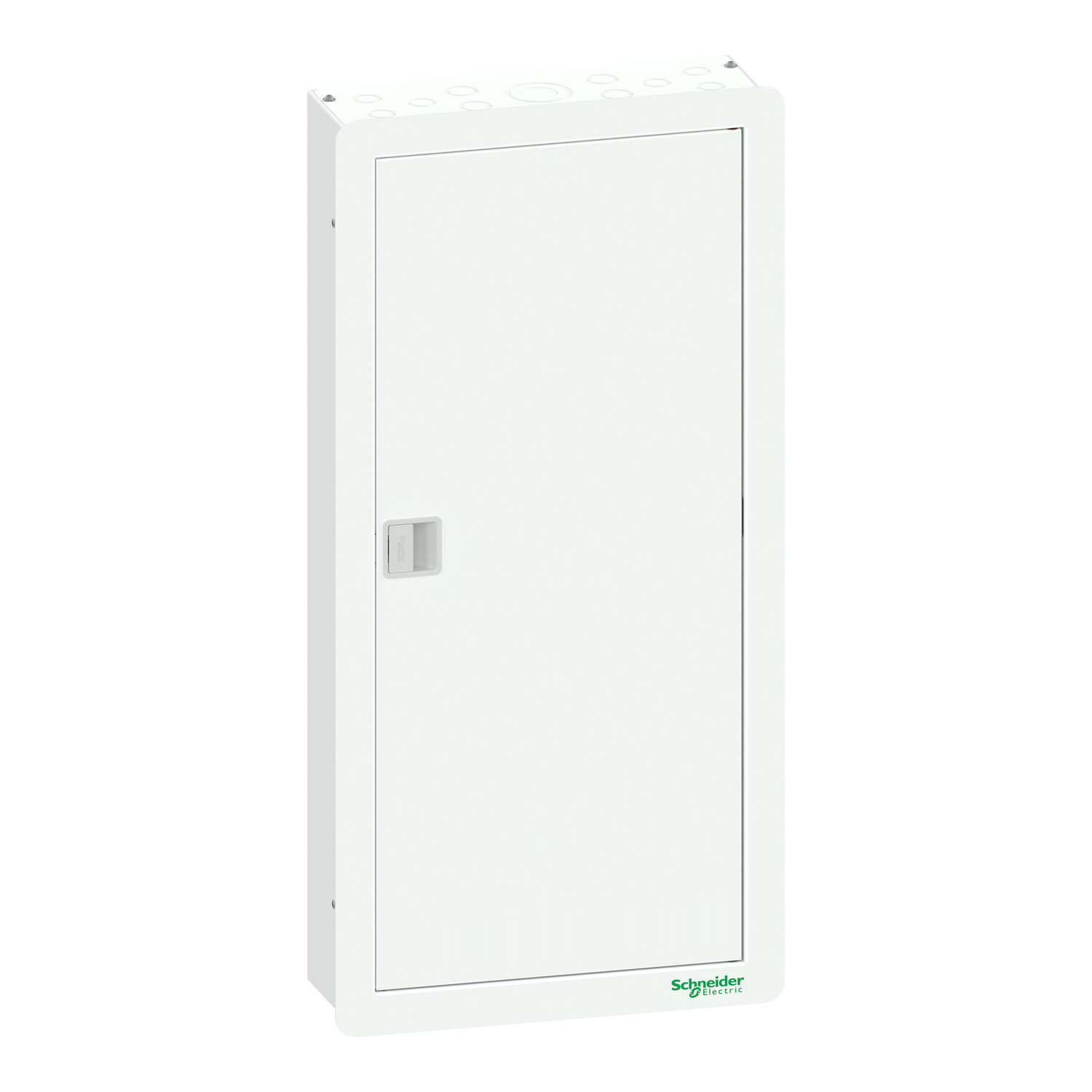

Schneider A9HV336XNSX250 | Acti 9 Vertical TPN 36way with 3P NSX 250A incomer provision
Technical Specifications of A9HV336XNSX250
-
Product Type: TPN Vertical Distribution Board
-
Brand: Schneider Electric
-
Series: Acti9
-
Model: A9HV336XNSX250
-
Configuration: 3P + Neutral (TPN)
-
Number of Outgoing Ways: 36
-
Incomer Provision: 3P NSX 250A MCCB (device not included)
-
Maximum Incomer Rating: 250 A
-
Operating Voltage: 230/400V AC
-
Frequency: 50/60 Hz
-
Busbar Type: Fully shrouded copper busbars
-
Ingress Protection: IP43 (higher IP ratings available with accessories)
-
Material: Electro-galvanized steel, powder-coated
-
Color: Light grey (RAL 7035)
-
Cable Entry: Top and bottom knockouts
-
Mounting Type: Wall-mounted
-
Ambient Operating Temperature: -20°C to +60°C
-
Standards Compliance:
-
IEC 61439-3 – Low voltage switchgear assemblies
-
IEC 60947-2 – Circuit breakers
-
-
Compatibility: Acti9 MCBs, RCBOs, surge protection devices, energy metering modules
Key Features
-
NSX 250A MCCB Incomer Provision
Designed to house a 3P NSX 250A MCCB, offering powerful protection and coordination for high-load circuits and ensuring system safety under fault or overload conditions. -
36 Outgoing Ways
Ideal for larger installations requiring a high number of final sub-circuits, enabling structured, centralized power distribution across various applications. -
Safety-Focused Design
Features fully shrouded busbars, finger-safe terminals, and internal barriers to enhance personnel protection and reduce the risk of accidental contact with live components. -
Modular System Compatibility
Seamless integration with Schneider’s Acti9 modular devices, including MCBs, RCBOs, SPD modules, and energy meters, allowing complete customization based on project needs. -
Strong Industrial Enclosure
Heavy-duty steel enclosure with corrosion-resistant coating, suitable for rugged environments and long-term durability. -
Ease of Access and Maintenance
Front-facing modular arrangement and wide internal space for cable management and device servicing. -
Flexible Cable Management
Generous cable entry knockouts at the top and bottom for streamlined installation and organization. -
Future-Ready Design
Expandable and adaptable for evolving electrical infrastructure with optional digital monitoring, remote operation, or advanced protection solutions.
Applications
The Schneider A9HV336XNSX250 is ideally suited for demanding installations where scalability and high current capacity are essential:
-
Large Commercial Facilities
Shopping malls, business parks, and corporate headquarters that require centralized and segmented power control. -
Industrial Complexes
Factories, processing units, and plants with high electrical load requirements and complex distribution networks. -
Infrastructure and Public Sector
Airports, railway stations, hospitals, and educational institutions needing robust and safe distribution panels. -
Data Centers
Offers secure and stable power distribution to servers, cooling systems, and critical IT loads. -
Energy & Utility Networks
Power generation and distribution points requiring large feeder protection and safe branch circuit management. -
Large Residential Buildings
High-rise apartment complexes and gated communities needing extensive electrical distribution capability.
