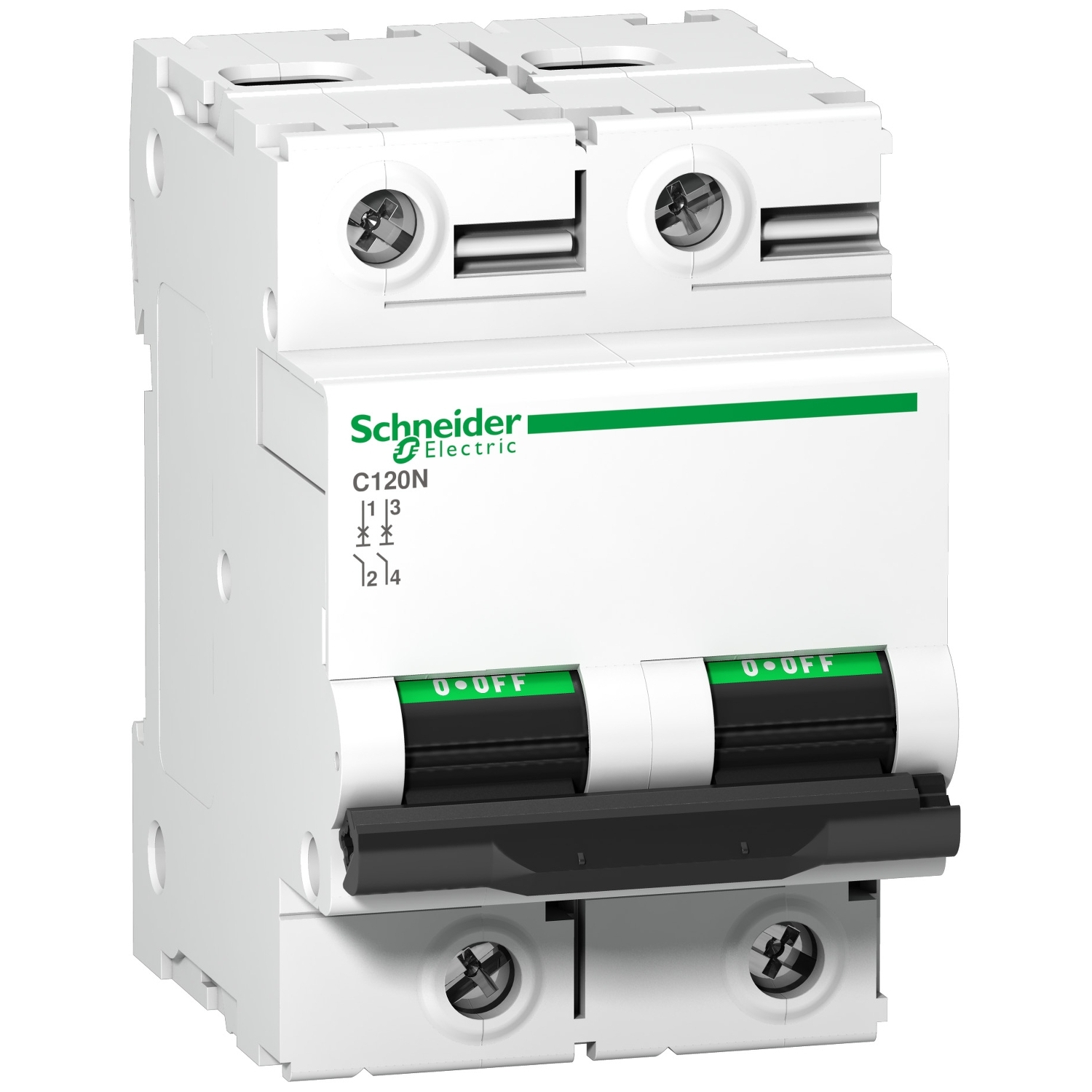

Schneider A9N18363 | Miniature circuit-breaker, Acti9 C120N, 2P, 125 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)

Description

Schneider A9N18363 | Miniature circuit-breaker, Acti9 C120N, 2P, 125 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)

Technical Specifications A9N18363

• Reference Number: A9N18363

• Product Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2P (Double Pole)

• Rated Current: 125 Amperes

• Tripping Curve: C Curve – suitable for moderate inrush current loads like motors

• Breaking Capacity (IEC 60898-1): 10,000 A

• Breaking Capacity (IEC 60947-2): 10 kA

• Rated Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Mounting Type: DIN rail

• Protection Degree: IP20 (in enclosed panels)

• Rated Insulation Voltage: Up to 500 V

Key Features:

1. High Safety Level: Equipped with thermal and magnetic trip mechanisms for protection against overloads and short circuits.

2. Reliable Operation: Robust construction ensures long-term performance, even in harsh industrial environments.

3. Easy Installation: Designed for quick mounting on standard DIN rails, saving time during panel assembly.

4. Low Maintenance: Engineered for durability and reduced need for regular inspections.

5. Standards Compliance: Fully conforms to IEC 60898-1 and IEC 60947-2 standards.

6. Versatile Application: Suitable for a wide range of commercial and industrial installations.

Applications:

• Industrial Facilities: For circuit protection in factories, machinery lines, and heavy-duty systems.

• Commercial Buildings: Protects power and lighting circuits in shopping malls, office buildings, and service centers.

• Power Distribution Panels: Can be used as a main or sub-circuit protection device.

• Motor and Load Protection: Ideal for protecting circuits with moderate startup surges due to the C curve characteristic.

• Workshops and Control Rooms: Ensures safety and continuity in mission-critical environments.
