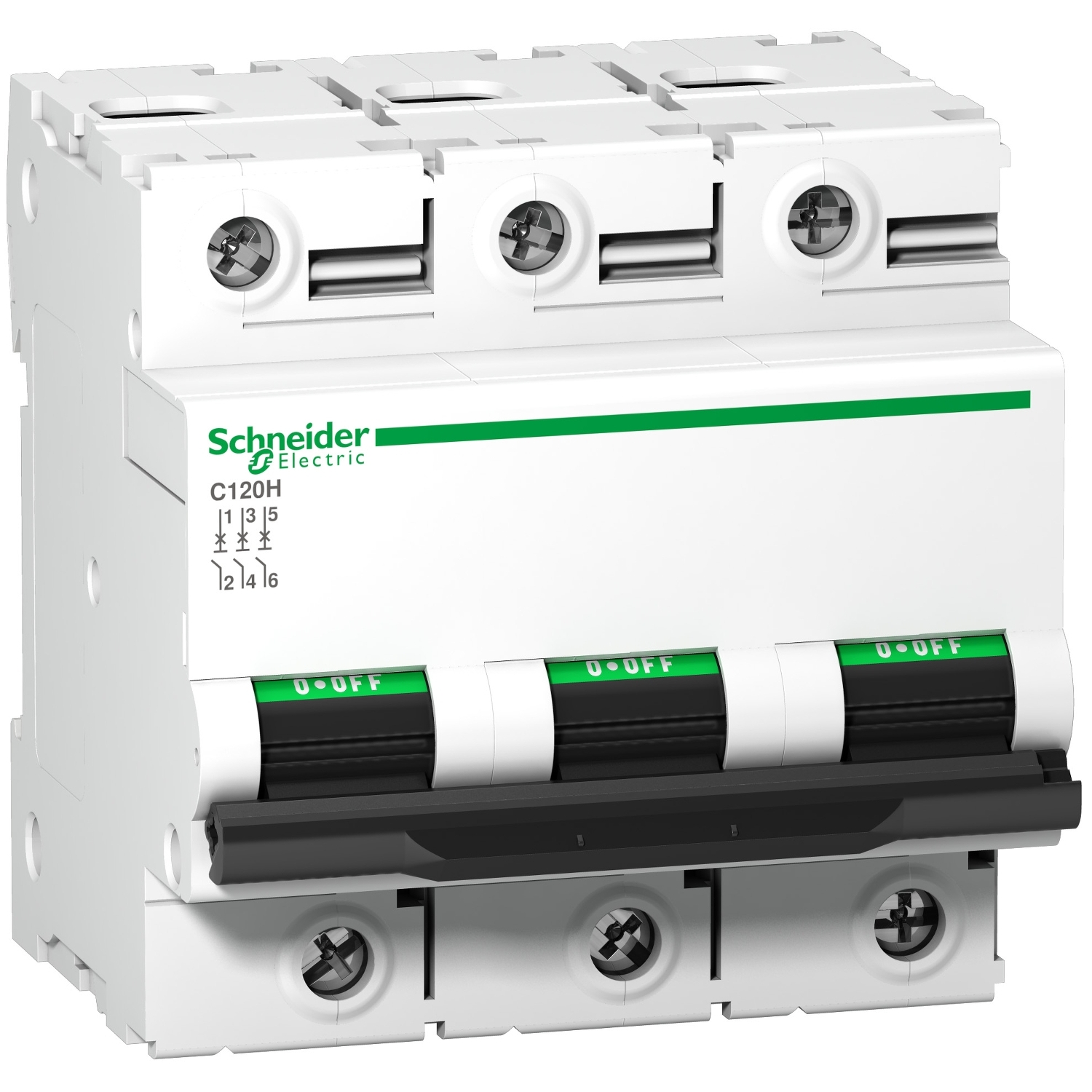

 Schneider A9N18469 | Miniature circuit-breaker, Acti9 C120H, 3P, 100 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2)

Technical Specifications A9N18469

• Product Reference: A9N18469

• Product Line: Acti9 C120H

• Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 3P (Three Pole)

• Rated Current: 100 Amperes

• Tripping Curve: C Curve – for moderate inrush current loads

• Breaking Capacity (IEC 60898-1): 15,000 A

• Breaking Capacity (IEC 60947-2): 15 kA

• Rated Operational Voltage: 400 V AC

• Insulation Voltage: 500 V

• Frequency: 50/60 Hz

• Mounting Method: DIN rail

• Degree of Protection: IP20 (when installed in a protected enclosure)

• Certifications & Standards: IEC 60898-1, IEC 60947-2

Key Features:

• High Breaking Capacity (15 kA)
  Ensures safe interruption of short-circuit currents in high-fault-current environments.

• Three-Phase Circuit Protection
  Protects all three phases simultaneously, improving system coordination and overall safety.

• C Curve Tripping Characteristics
  Offers precise protection for equipment with moderate inrush currents, such as motors, transformers, and lighting circuits.

• Dual Protection Mechanism
  Equipped with thermal (overload) and magnetic (short-circuit) trip units for full-spectrum protection.

• Compact Modular Format
  Space-efficient design allows for streamlined installation in modern distribution panels.

• Quick and Secure Installation
  DIN rail compatibility ensures fast and reliable mounting in control panels and switchboards.

• Enhanced Reliability
  Built to perform consistently under rigorous operational conditions, backed by Schneider Electric quality.

Applications:

• Industrial Power Distribution
  Suitable for motor control centers, machine protection, and plant power panels.

• Commercial Installations
  Protects circuits in malls, data centers, hospitals, office buildings, and public infrastructure.

• Three-Phase Systems
  An ideal choice for protecting balanced three-phase loads in utility and heavy-duty applications.

• Large Equipment Protection
  Ensures safety for HVAC units, compressors, pumps, and other high-load machinery.

• Critical Electrical Networks
  Provides fault isolation and equipment protection in systems where uptime and safety are essential.
