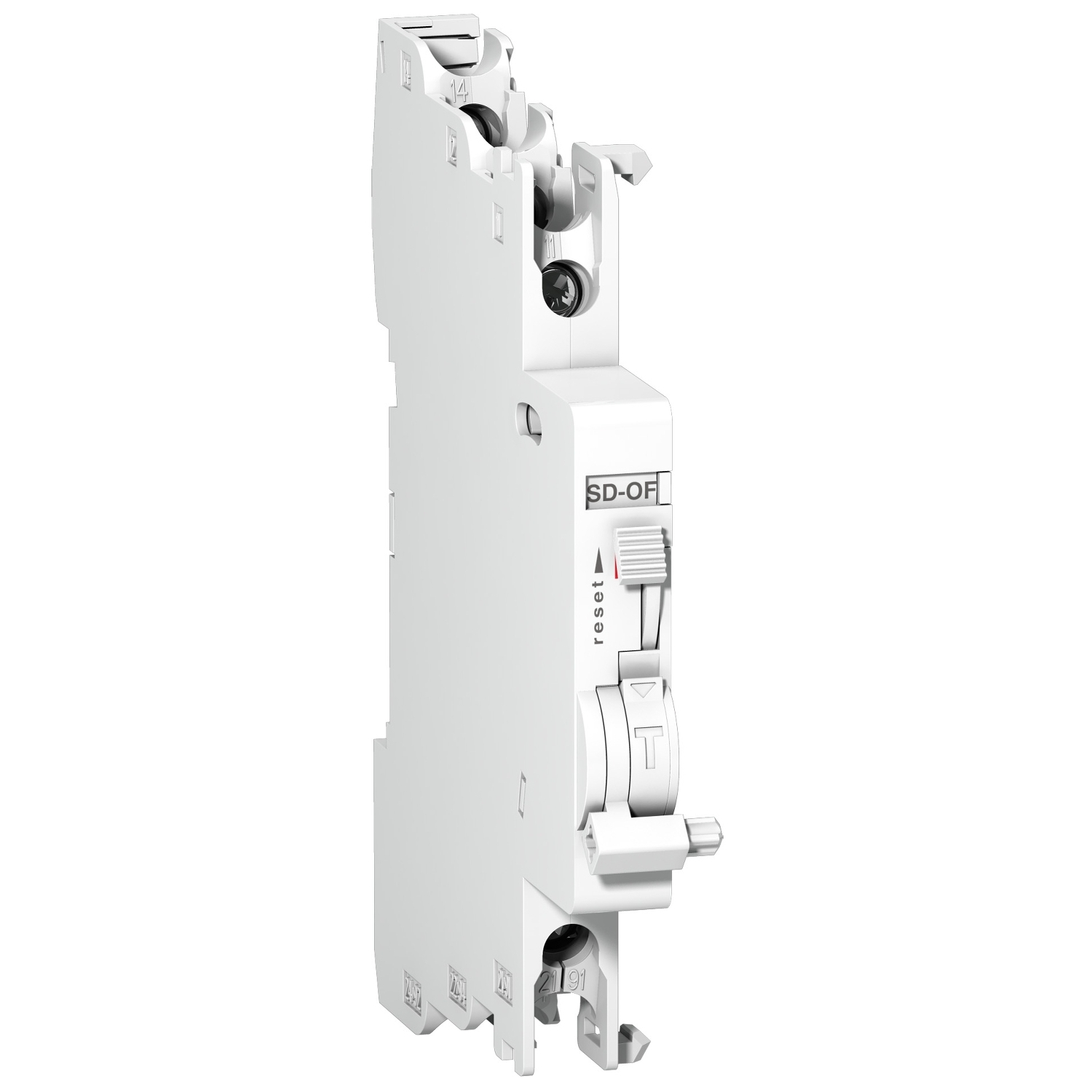

Schneider A9N26929 | Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc
Technical Specifications A9N26929
-
Product Reference: A9N26929
-
Product Line: Acti9
-
Type: Auxiliary Contact (OC Plus)
-
Functions:
-
1 x SD (Signalization of Trip)
-
1 x OF (Open/Closed Contact for Position Indication)
-
-
Compatible Devices: Acti9 MCBs and RCDs
-
Number of Modules: 1
-
Control Circuit Type: AC and DC compatible
-
Mounting Method: Side-mounted on Acti9 protective devices
-
Terminal Type: Screw-type terminals
-
Standards Compliance: IEC 60947-5-1
-
Degree of Protection: IP20 (when installed in enclosure)
Key Features:
Dual Signaling Capabilities
Provides both device position and trip status, improving diagnostics and remote supervision.
-
AC/DC Compatibility
Suitable for integration in a wide range of applications and environments. -
Compact Modular Design
Saves valuable panel space and integrates seamlessly with Acti9 devices. -
Easy Installation
Clips quickly onto the side of compatible circuit breakers or residual current devices without tools. -
Enhanced System Monitoring
Helps enable preventive maintenance and faster fault response. -
Reliable and Long-Lasting
Engineered to meet Schneider Electric’s high-performance and safety standards.
Applications:
-
Power Distribution Boards
Enables real-time monitoring of device operation and fault conditions in residential, commercial, and industrial systems. -
Building Management Systems (BMS)
Integrates with central monitoring systems for smart infrastructure. -
Industrial Automation Panels
Supports system automation with reliable status feedback to PLCs or SCADA systems. -
Critical Systems Monitoring
Ideal for data centers, hospitals, and facilities requiring uninterrupted power supervision. -
Energy and Utility Networks
Used in control rooms for better visibility of field equipment status.
