Description

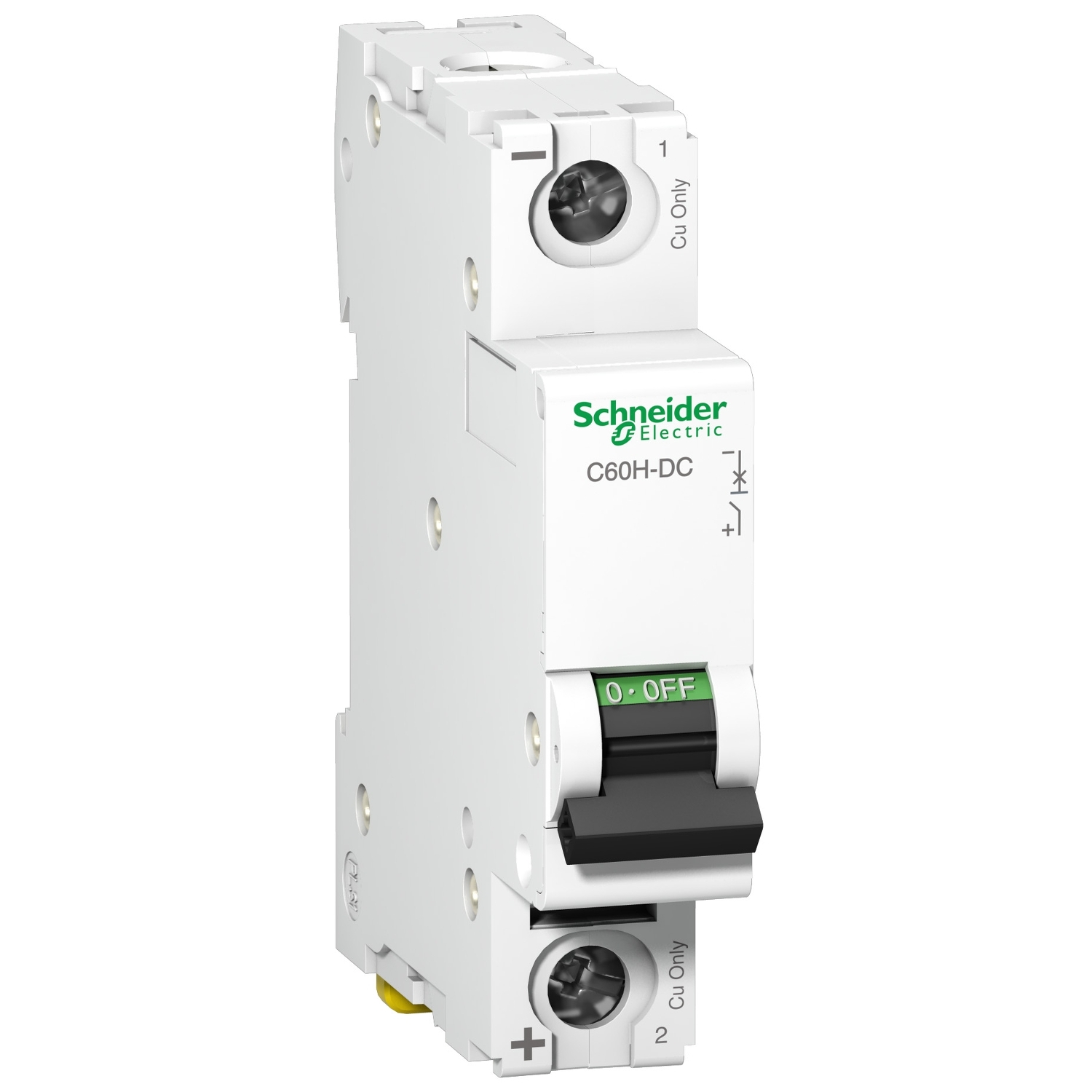

Schneider A9N61508 | miniature circuit breaker – C60H – 1 pole – 10 A – C curve
Technical Specifications A9N61508
-
Product Reference: A9N61508
-
Series: Acti9 C60H
-
Device Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 1P (Single Pole)
-
Rated Current (In): 10 A
-
Tripping Curve: C Curve (trips between 5–10 × In)
-
Breaking Capacity: Up to 6 kA (IEC/EN 60898-1)
-
Rated Operational Voltage: 230/400 V AC
-
Frequency: 50/60 Hz
-
Mounting Type: DIN rail (modular)
-
Terminal Connection: Screw terminals, top and bottom
-
Degree of Protection: IP20 (when installed in enclosure)
-
Standards:
-
IEC/EN 60898-1
-
IEC/EN 60947-2
-
Key Features:
-
Reliable 10 A Protection
Ensures safety and continuity in circuits with low to medium load demands. -
C Curve Tripping
Provides a balance between sensitivity and tolerance to inrush currents. -
Space-Saving Modular Design
Optimized for compact control panels and distribution boards. -
High Durability
Built to withstand frequent operation and harsh environments. -
Quick Installation
Easy DIN rail mounting with robust screw terminals for secure wiring. -
Global Compliance
Certified to major international standards for universal application.
Applications:
-
Residential Distribution Boards
Ideal for protecting socket and lighting circuits. -
Commercial Installations
Suitable for office lighting, signage systems, and auxiliary equipment. -
Control and Automation Panels
Protects circuits powering controllers, relays, and I/O devices. -
Small Motor Loads
Supports protection of devices with moderate start-up currents. -
Backup and Emergency Systems
Reliable operation for low-current standby circuits or critical loads.
