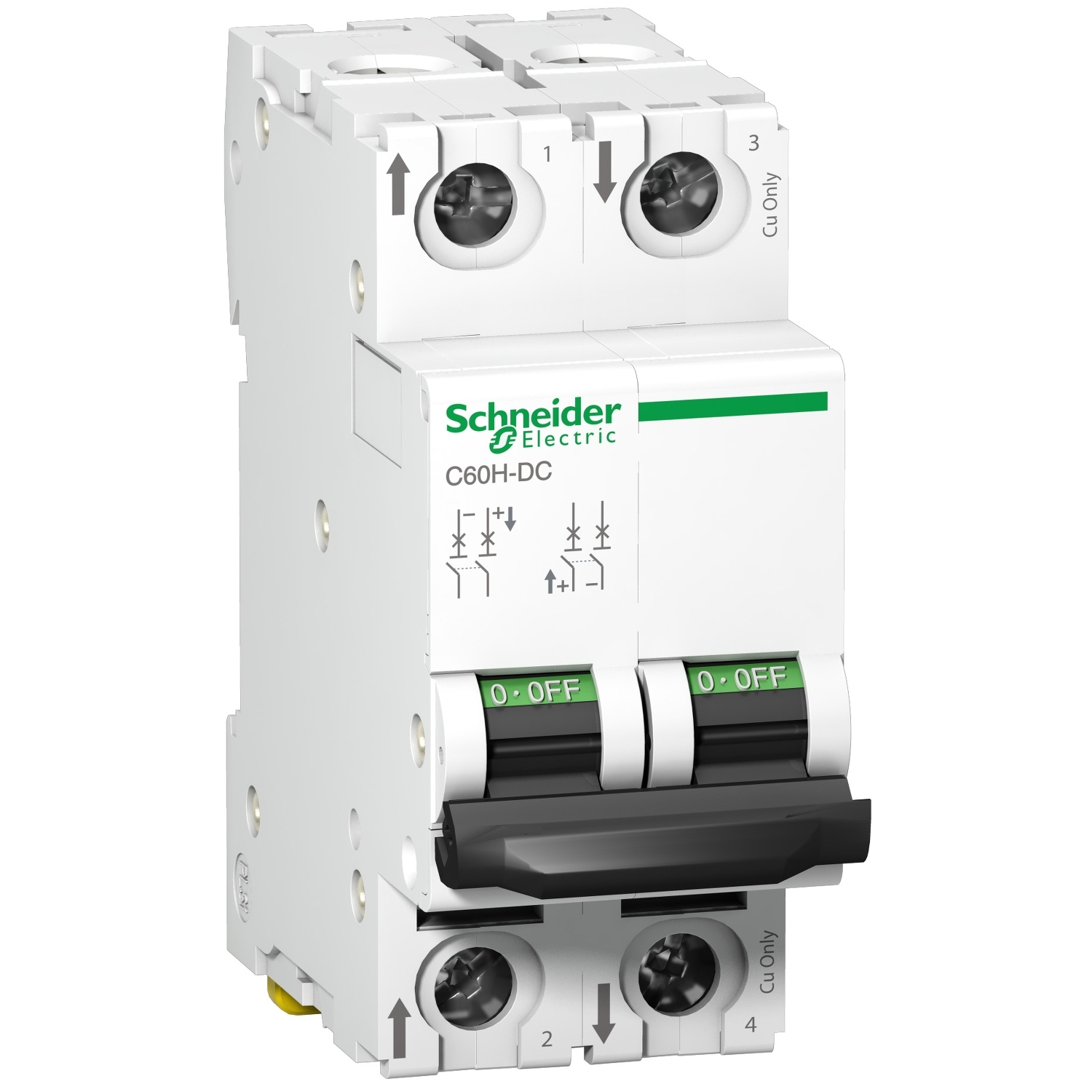

Schneider A9N61532 | miniature circuit breaker – C60H – 2 poles – 20 A – C curve
. Technical Specifications A9N61532
-
Manufacturer: Schneider Electric
-
Model Number: A9N61532
-
Product Series: Acti9 C60H
-
Product Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 2 Poles
-
Rated Current (In): 20 Amperes
-
Tripping Curve: C Curve
-
Rated Operational Voltage (Ue): Up to 240/415V AC
-
Breaking Capacity: 6 kA (compliant with IEC/EN 60898-1)
-
Mounting Type: DIN rail mountable
-
Degree of Protection: IP20 (with enclosure)
-
Operating Temperature Range: -25°C to +60°C
-
Width: 36 mm (2 modules)
-
Electrical Durability: Up to 10,000 operations
-
Standard Compliance: IEC/EN 60898-1
. Key Features
-
Two-Pole Protection: Provides disconnection and protection for both live and neutral conductors (or two-phase conductors), enhancing safety.
-
20A Rated Current: Ideal for medium-load circuits, offering protection for lighting systems, outlets, small appliances, and control circuits.
-
C Curve Response: Allows for handling of moderate inrush currents typically found in inductive loads like fans and pumps.
-
Compact and Modular Design: Takes only 2 modules of width (36 mm), saving space in distribution panels.
-
High Reliability: Combines thermal and magnetic trip mechanisms for accurate fault detection.
-
Easy Installation: Quick snap-on mounting on DIN rails without special tools.
-
Visual Status Indicator: Clear ON/OFF position makes monitoring simple.
-
Long Life Cycle: Built to last with minimal maintenance under normal operating conditions.
. Applications
The Schneider A9N61532 is highly versatile and can be used in a wide range of applications, including:
-
Residential Electrical Systems: Protects lighting, sockets, or air conditioning circuits with two-pole switching for full disconnection.
-
Commercial Spaces: Offices, shops, and public buildings requiring enhanced protection and reliability.
-
Control Panels: Suitable for protecting control circuits and small automation panels in industrial settings.
-
Sub-Distribution Boards: Used for protection of branch circuits requiring both poles to be disconnected in the event of a fault.
-
Renewable Energy Systems: Ideal for AC output protection in solar inverter setups or backup power systems.
