Description

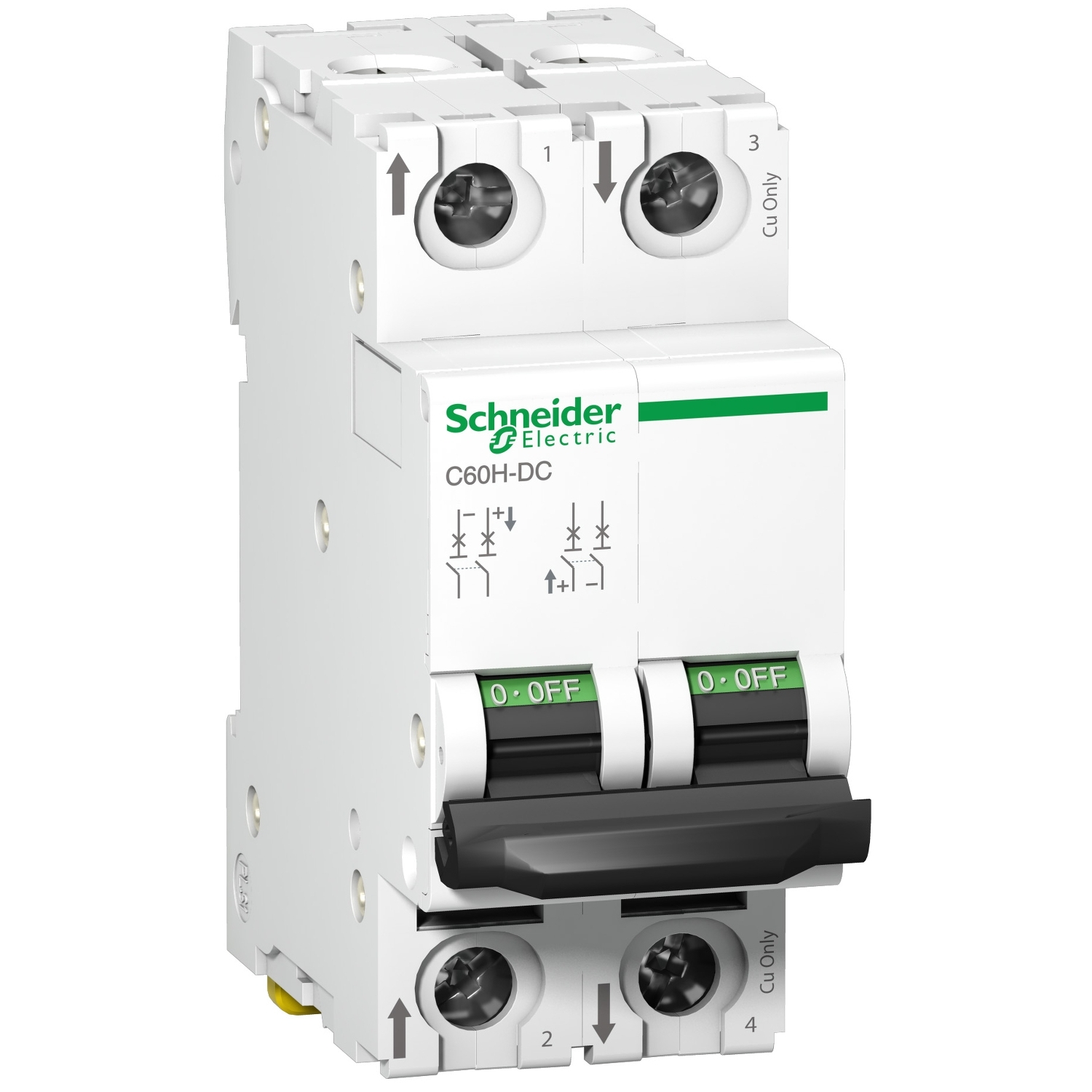

Schneider A9N61533 | miniature circuit breaker – C60H – 2 poles – 25 A – C curve
Technical Specifications A9N61533
-
Model: A9N61533
-
Product Series: C60H
-
Type: Miniature Circuit Breaker (MCB)
-
Number of Poles: 2 Poles (2P)
-
Rated Current: 25 Amps
-
Curve Type: C Curve
-
Rated Voltage: 230/400 V AC
-
Breaking Capacity: Up to 6 kA (depending on installation conditions)
-
Frequency: 50/60 Hz
-
Mounting: DIN rail
-
Standards Compliance: IEC 60898-1
-
Protection Degree: IP20 (with enclosure)
Key Features
-
Overload and Short Circuit Protection: Protects wiring and devices from electrical faults.
-
C-Curve Trip Profile: Ideal for applications with moderate inrush current such as inductive loads (e.g., motors, pumps).
-
Dual Pole Configuration: Provides protection for both phase and neutral or two live conductors.
-
Durable Design: Made using high-quality materials for long service life and reliability.
-
Compact and Space-Saving: Slim design fits easily into standard distribution boards.
-
Manual ON/OFF Control: Allows for easy isolation of circuits for maintenance or emergency.
-
Visible Trip Indicator: Provides clear status of the breaker (ON, OFF, or TRIPPED).
-
High Breaking Capacity: Safely interrupts high fault currents without damage.
Applications
-
Residential: Protection of high-load household appliances like water heaters, air conditioners, and electric ovens.
-
Commercial: Used in small commercial buildings for lighting, HVAC systems, and power outlets.
-
Industrial: Suitable for machinery, motors, and workshop tools with moderate startup currents.
-
Sub-panels: Often used in distribution boards to protect sub-circuits.
-
UPS and Generator Outputs: Ideal for protecting circuits powered by backup systems.
