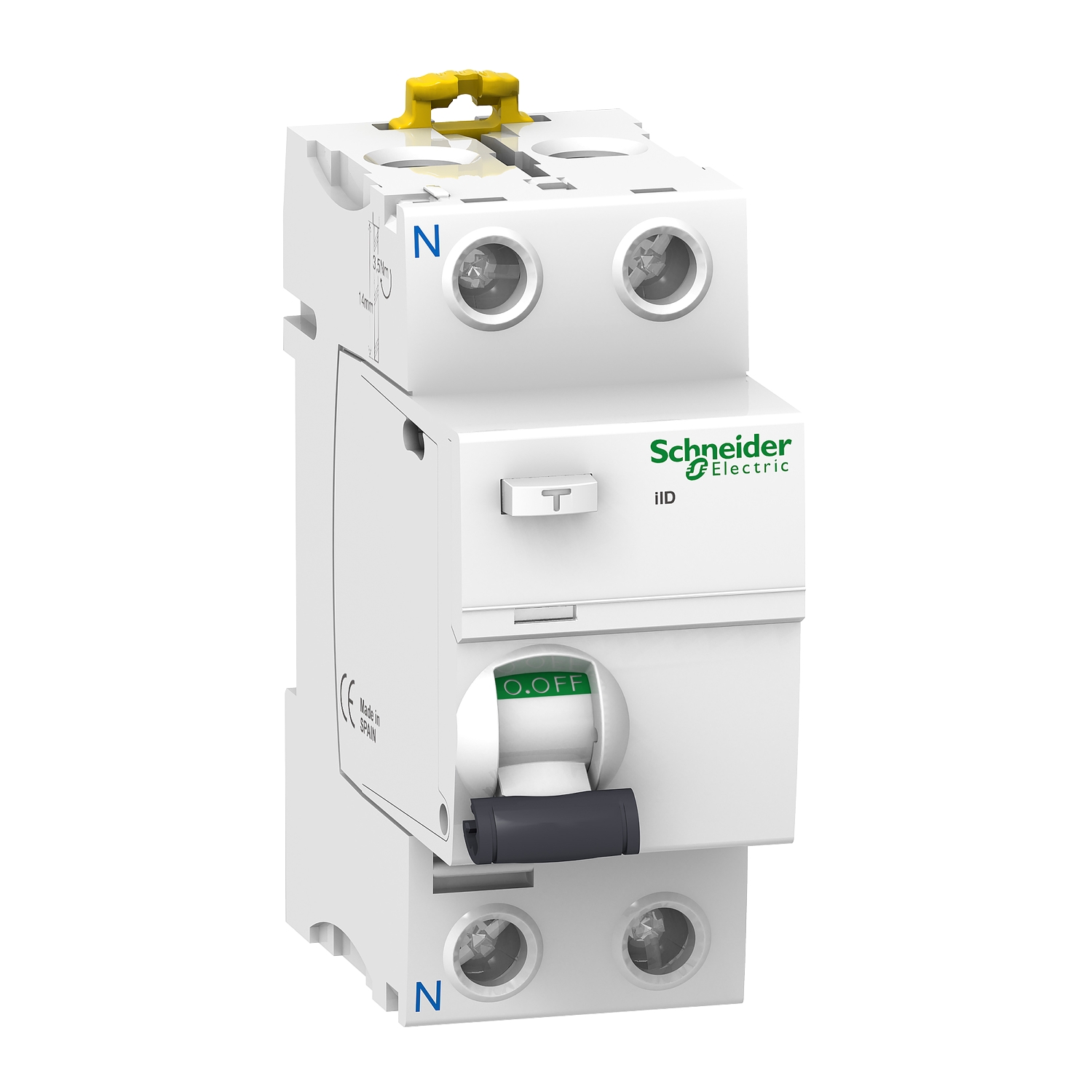

Schneider A9R11280 | Acti 9 iID – RCCB – 2P – 80A – 30mA – type AC
Technical Specifications A9R11280
-
Model Number: A9R11280
-
Product Series: Acti 9 iID
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 2 (2P)
-
Rated Current (In): 80 Amps
-
Sensitivity (IΔn): 30 mA
-
Residual Current Type: Type AC (detects sinusoidal AC leakage)
-
Rated Voltage: 230/400V AC
-
Frequency: 50/60 Hz
-
Mounting Type: DIN rail
-
Standards Compliance: IEC 61008-1
-
Degree of Protection: IP20 (with terminal protection)
Key Features and Benefits
-
Personal Protection: Instantly disconnects the power in case of earth leakage, helping to prevent electric shock.
-
30mA Sensitivity: Ideal for protecting human life in domestic and light commercial environments.
-
Type AC Performance: Detects and trips on standard alternating current leakages.
-
Double Pole Disconnection: Isolates both live and neutral conductors for enhanced safety.
-
Compact DIN Rail Design: Easy integration into standard electrical panels.
-
Test Button: Allows periodic functionality testing to ensure device reliability.
-
High Reliability: Engineered for long operational life with low maintenance.
Applications
Residential Buildings:
-
Protection of household circuits and appliances from electric shock and earth faults.
-
Installed in main distribution boards or sub-panels in homes.
Commercial Buildings:
-
Suitable for offices, retail units, and service buildings where protection of people and equipment is essential.
-
Protects against leakage in lighting systems, general outlets, and HVAC controls.
Light Industrial Use:
-
Used in small workshops or service areas with standard AC loads.
-
Can be installed upstream of distribution circuits or sensitive equipment.
