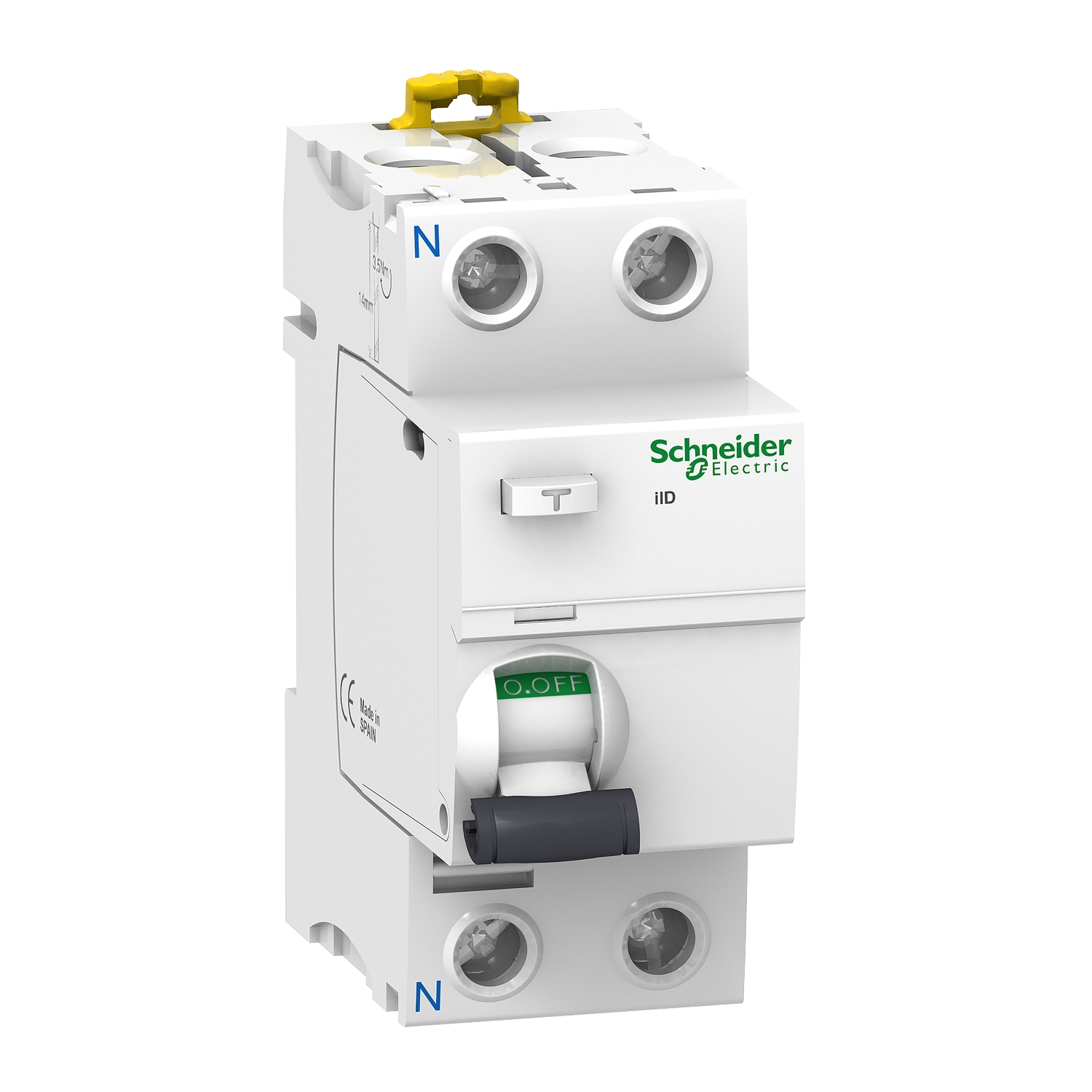

Schneider A9R41240 | Acti 9 iID – RCCB – 2P – 40A – 30mA – type AC
Technical Specifications A9R41240
-
Product Type: Residual Current Circuit Breaker (RCCB)
-
Series: Acti 9 iID
-
Model Number: A9R41240
-
Number of Poles: 2P (Line + Neutral)
-
Rated Current (In): 40 A
-
Residual Operating Current (IΔn): 30 mA
-
Type of Protection: Type AC (detects sinusoidal AC residual currents)
-
Rated Voltage: 230 V AC ±10%
-
Frequency: 50/60 Hz
-
Insulation Voltage: 500 V
-
Short-Circuit Withstand Capacity (conditional): 10 kA (with upstream protection)
-
Endurance:
-
Mechanical: 20,000 operations
-
Electrical: 10,000 operations
-
-
Mounting: DIN rail (35 mm)
-
Terminal Capacity:
-
Rigid: 1.5 – 25 mm²
-
Flexible: 1.5 – 16 mm²
-
-
IP Degree of Protection: IP20 (IP40 when installed in an enclosure)
-
Operating Temperature: -25°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Standards Compliance:
-
IEC 61008-1
-
IEC 61008-2-1
-
-
Certifications: CE, VDE, EAC
Key Features
-
Earth Leakage Protection: Disconnects the power supply in case of ground faults to prevent electric shock and fire hazards.
-
30 mA Sensitivity: Offers personal protection by rapidly detecting low-level leakage currents.
-
Type AC Sensitivity: Suitable for detecting sinusoidal AC residual currents, ideal for most standard residential circuits.
-
Compact and Modular Design: Saves space in distribution boards and integrates seamlessly with Acti 9 accessories.
-
High Reliability: Long mechanical and electrical life with robust internal components.
-
User-Friendly Operation: Clear ON/OFF status indication, test button for regular functionality checks.
-
Safe Terminals: Finger-safe design with IP20 protection rating ensures secure wiring and safety during maintenance.
Applications
The A9R41240 RCCB is ideally suited for use in:
-
Residential Homes and Apartments: Protection of lighting, socket, and general-purpose circuits
-
Small Commercial Buildings: Office spaces, shops, and retail units
-
Wet Zones: Kitchens, bathrooms, laundries (where personal protection is crucial)
-
Distribution Boards: Installed in main or sub-distribution panels
-
Educational and Healthcare Facilities: For enhanced safety where people are in contact with electrical equipment
