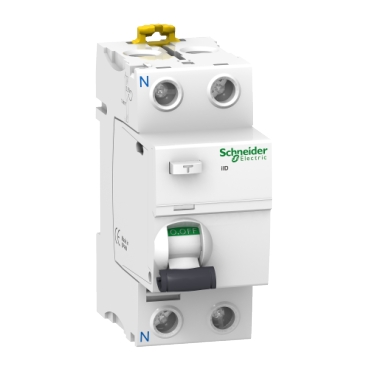

Schneider A9R41263 | Acti 9 iID – RCCB – 2P – 63A – 30mA – type AC
Technical Specifications A9R41263
-
Product Code: A9R41263
-
Product Range: Acti 9 iID
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 2 (Single-phase or Two-phase)
-
Rated Current (In): 63 A
-
Rated Residual Operating Current (IΔn): 30 mA
-
Type: Type AC (detects sinusoidal alternating current leakage)
-
Rated Voltage: 230V AC
-
Rated Frequency: 50/60 Hz
-
Tripping Characteristic: Instantaneous
-
Mounting Type: DIN rail
-
Degree of Protection: IP20 (can be improved with terminal shields)
-
Standards Compliance: IEC 61008-1
-
Test Button: Yes (for manual testing of RCCB operation)
-
Mechanical Durability: > 5000 operations
-
Electrical Durability: > 2000 operations under rated conditions
Key Features A9R41263
-
63A Rated Current: Ideal for small to medium-sized installations that require protection for circuits with a moderate electrical load.
-
30mA Sensitivity: Provides personal protection against electric shocks by detecting leakage currents that could be hazardous to individuals.
-
Type AC Detection: Specifically detects sinusoidal AC leakage currents, making it suitable for general electrical systems where no DC leakage is expected.
-
Instantaneous Tripping: Ensures rapid disconnection of the circuit in the event of an earth fault, reducing the risk of electrical shock or fire.
-
Test Button: Allows easy and regular testing of the RCCB’s functionality to ensure continued performance.
-
Compact and Modular Design: Occupies minimal space on a DIN rail and integrates easily into existing distribution panels.
-
Compliance with International Standards: Fully compliant with IEC 61008-1, ensuring reliable protection and performance.
Applications
The A9R41263 RCCB is designed for use in various residential and small commercial applications where personal protection is a key concern. Some typical use cases include:
Residential Applications
-
Protection for circuits powering household appliances, lighting systems, and small electrical installations.
-
Provides enhanced safety in kitchens, bathrooms, or other areas where the risk of electrical shock is higher.
Small Commercial Installations
-
Suitable for small offices, retail outlets, and workshops, where personnel are frequently exposed to electrical systems.
-
Protects against leakage currents that could be hazardous in high-traffic areas or wet environments.
Electrical Outlets and Lighting Circuits
-
Used to protect circuits in homes or small businesses that are equipped with outlets, lighting, and standard appliances.
Electrical Distribution Panels
-
Ideal for use in distribution boards where protection of electrical circuits against earth faults is required.
