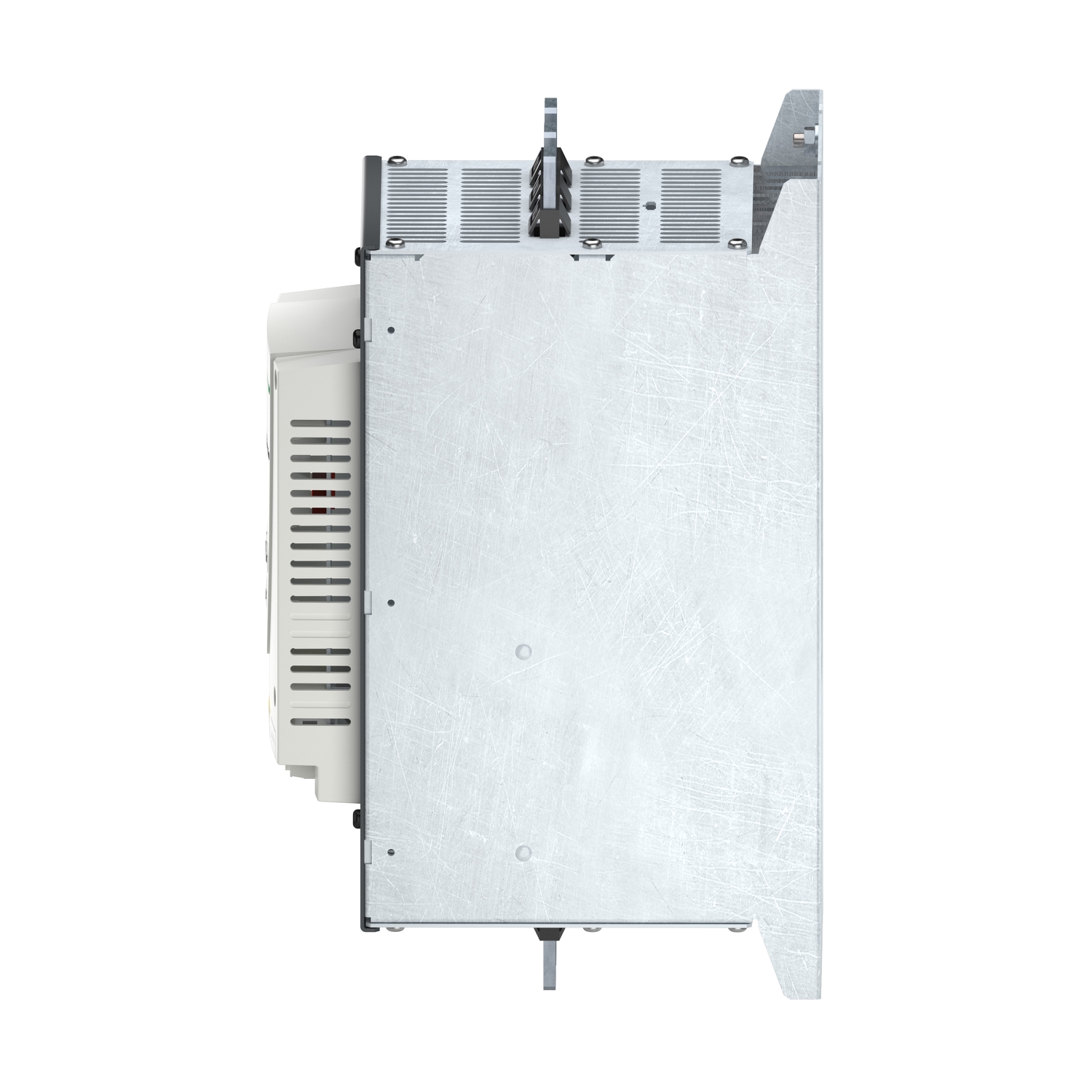

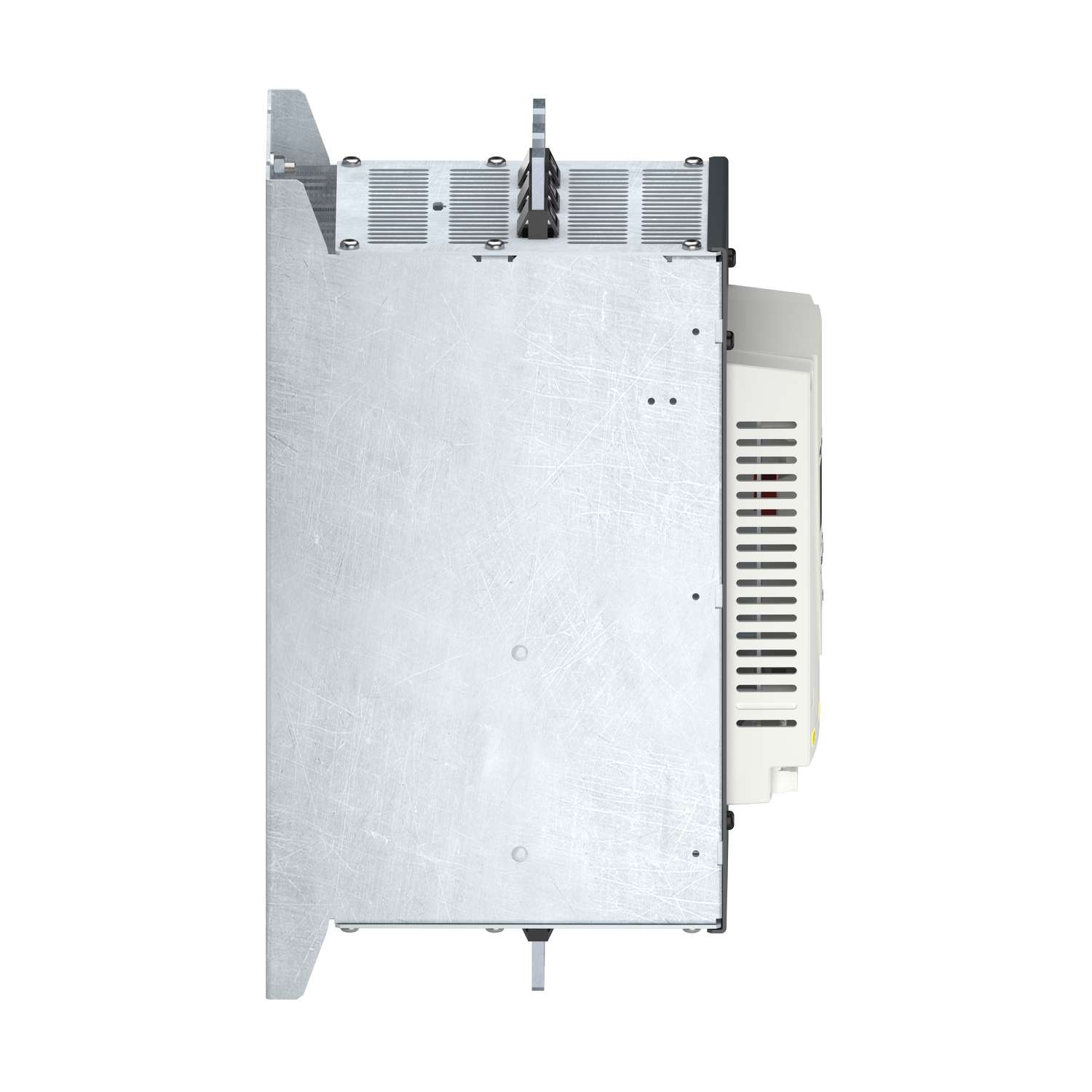

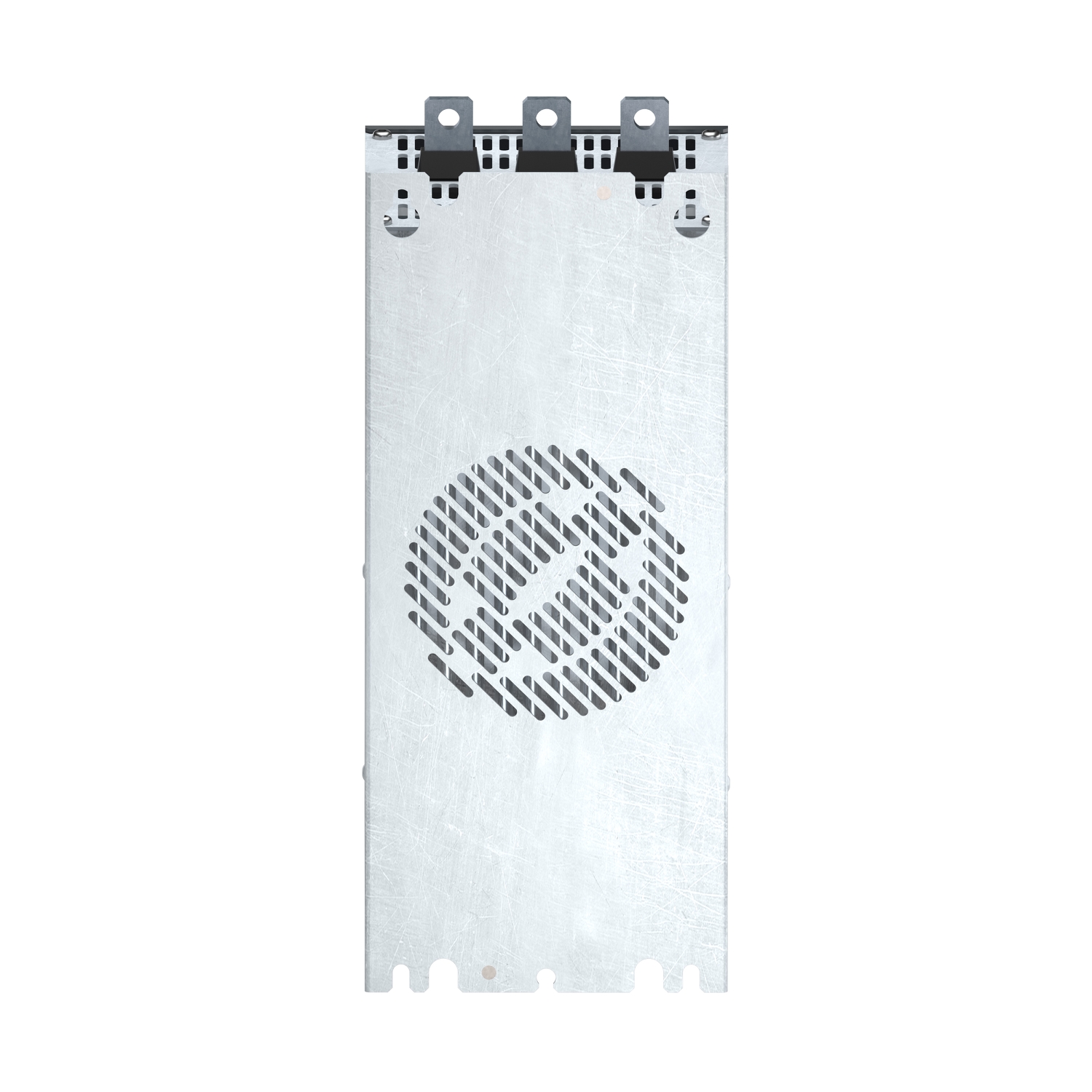

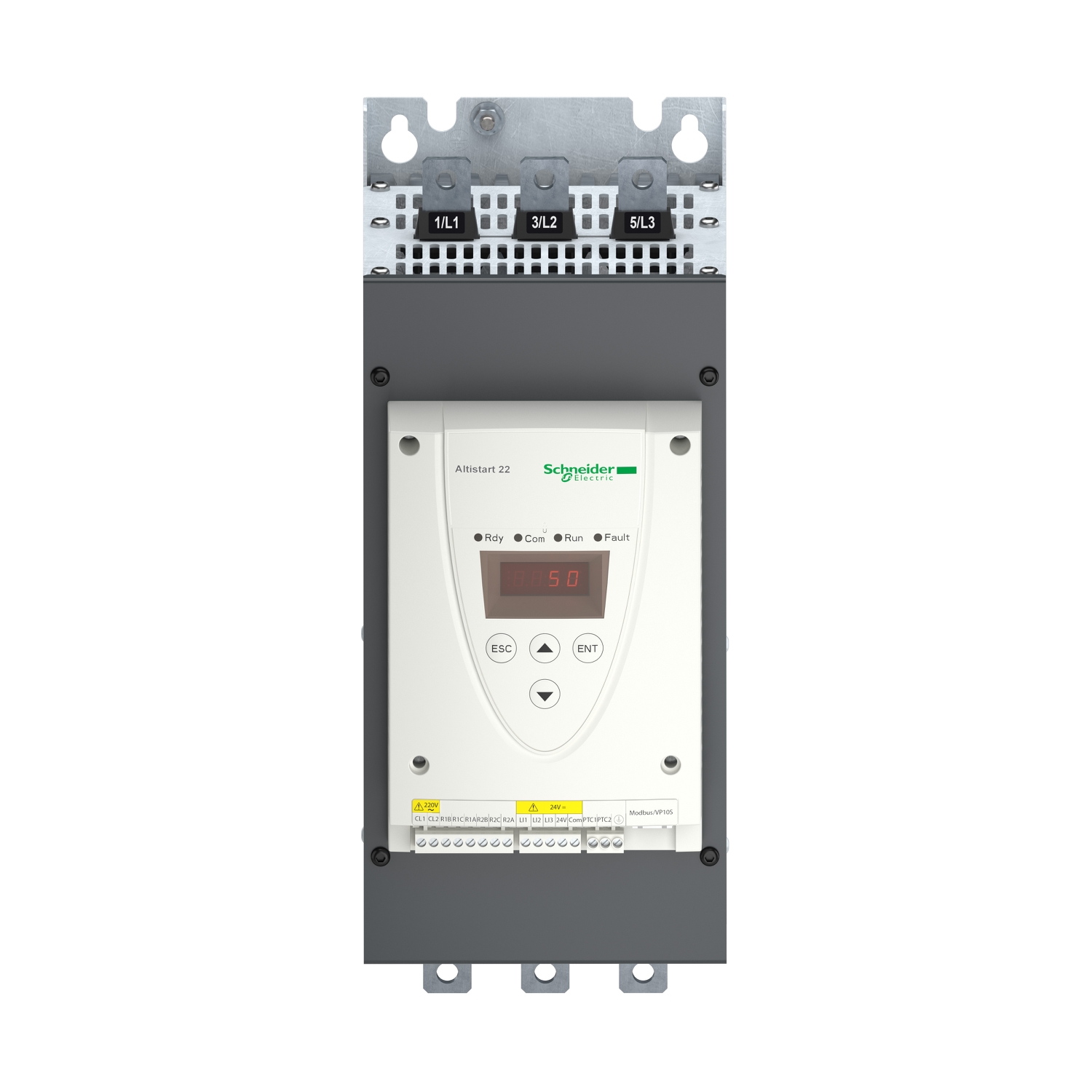

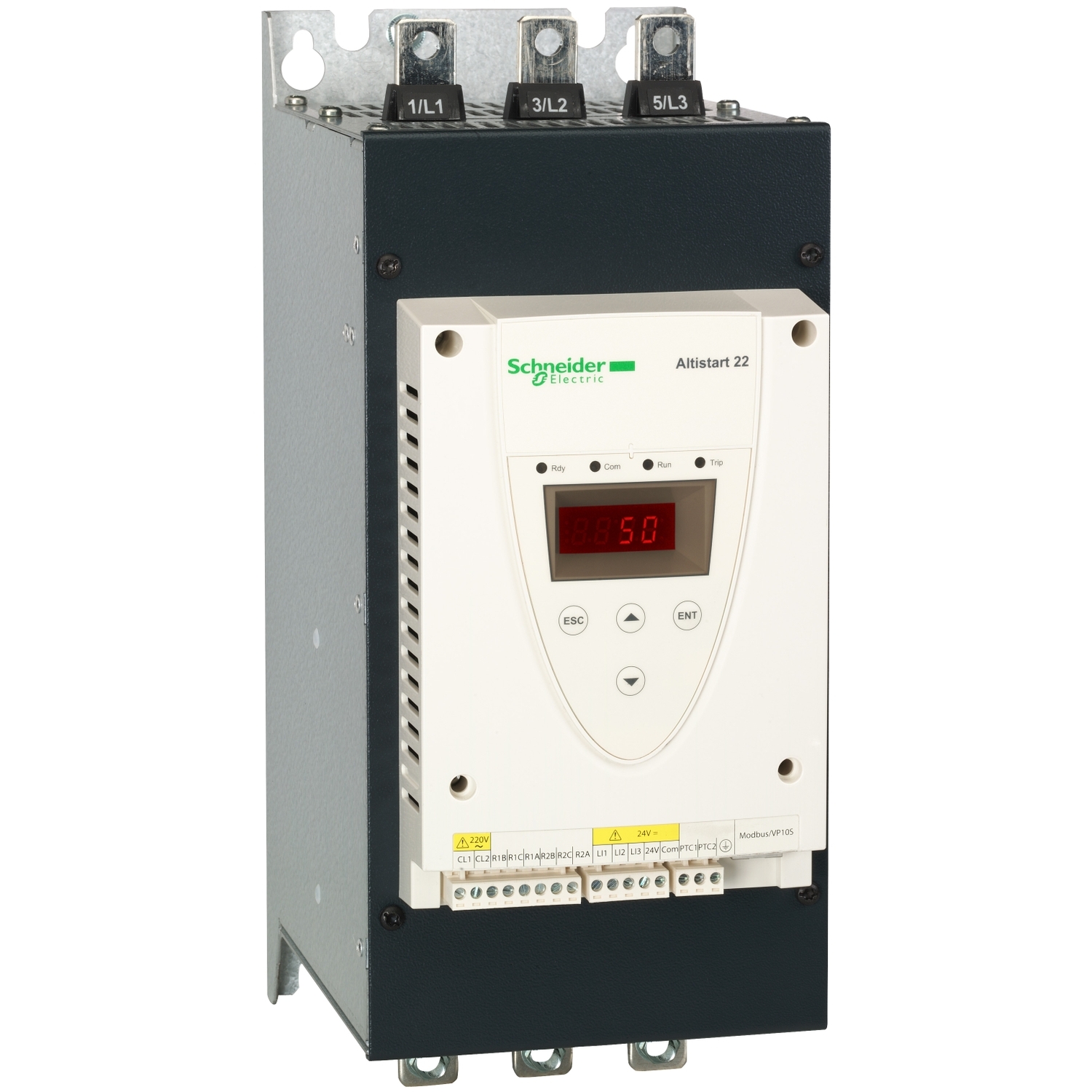

Schneider ATS22C17Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 45 to 90kW

Schneider ATS22C17Q | Soft Starter Overview

The Schneider ATS22C17Q is a soft starter from the Altistart 22 series, designed for asynchronous motors. It enables smooth motor acceleration and deceleration, reducing mechanical stress and improving energy efficiency.

1. General Specifications

• Product Name: Schneider ATS22C17Q

• Series: Altistart 22

• Type: Soft Starter for Asynchronous Motors

• Power Range: 45 to 90 kW

• Operating Voltage: 230V to 440V AC

• Control Supply Voltage: 230V AC

• Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

• Smooth Start & Stop Functionality – Minimizes mechanical stress and extends motor lifespan.

• Built-in Bypass Contactor – Improves efficiency by reducing power loss.

• Comprehensive Motor Protection – Guards against overload, overheating, and phase loss.

• Compact Design – Space-saving for easy integration into control panels.

• User-Friendly Interface – Simplified setup and real-time monitoring.

• Energy Optimization – Reduces peak current demand and improves operational efficiency.

3. Applications

• Water & Wastewater Pumps – Prevents pressure surges and water hammer effects.

• HVAC Systems & Fans – Ensures gradual speed changes to avoid sudden airflow variations.

• Conveyor Belts – Provides smooth acceleration and deceleration for safe material handling.

• Industrial Machinery – Suitable for various manufacturing and processing applications.

• Mining & Heavy Industries – Efficiently handles large motor loads with reduced electrical stress.

4. Protection & Safety Features

• Overload & Overtemperature Protection – Prevents overheating and motor damage.

• Phase Loss & Imbalance Detection – Ensures smooth motor operation.

• Short Circuit & Voltage Monitoring – Protects against electrical faults.

• Fault Diagnostics & Alerts – Real-time monitoring for quick troubleshooting.

• Soft Stop Function – Prevents sudden stops and mechanical shocks.

5. Installation & Maintenance

• Easy to Install & Configure – Quick setup with intuitive controls.

• LCD Display & User-Friendly Interface – Simplifies monitoring and adjustments.

• Durable & Reliable – Built for long-term industrial performance with minimal maintenance.
