Schneider ATS22C48Q| Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 132 to 250kW

Schneider ATS22C48Q | Soft Starter Overview

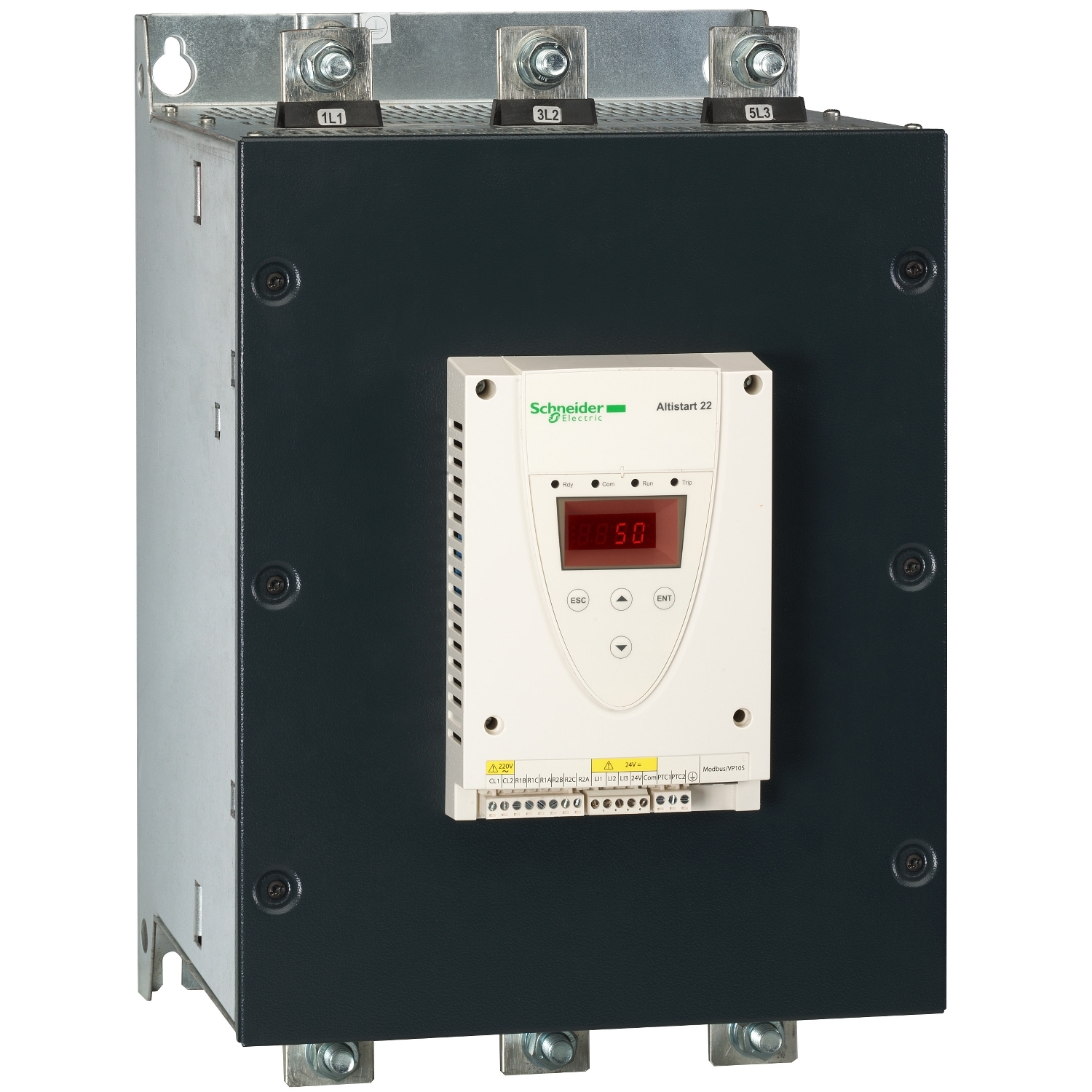

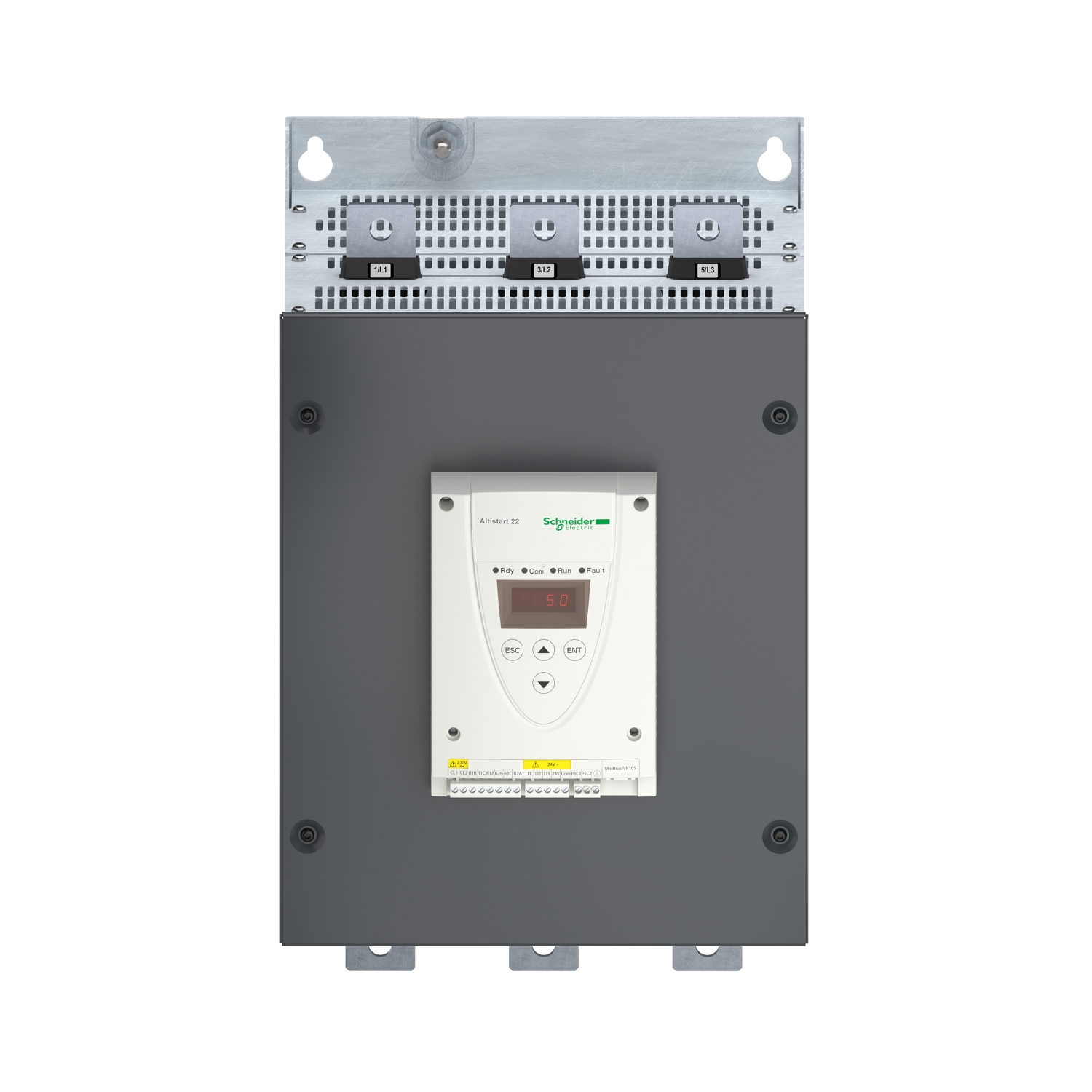

The Schneider ATS22C48Q is a soft starter from the Altistart 22 series, designed for asynchronous motors. It provides a controlled start and stop process, reducing mechanical stress and electrical surges, enhancing motor performance and longevity.

1. General Specifications

• Product Name: Schneider ATS22C48Q

• Series: Altistart 22

• Function: Soft Starter for Asynchronous Motors

• Power Rating: 132 to 250 kW

• Operating Voltage: 230V to 440V AC

• Control Supply Voltage: 230V AC

• Application: Heavy-duty industrial motor control

2. Key Features & Benefits

• Smooth Start & Stop – Minimizes mechanical stress and extends motor life.

• Built-in Motor Protection – Prevents overload, phase loss, and overheating.

• Integrated Bypass Contactors – Enhances efficiency and reduces heat dissipation.

• Energy-Efficient Operation – Reduces power consumption and costs.

• Compact Design – Saves space in control panels.

• User-Friendly Interface – Simplifies setup and monitoring.

3. Applications

• Pumps & Compressors – Reduces pressure surges and water hammer effects.

• Fans & Blowers – Ensures controlled acceleration and deceleration.

• Conveyors & Material Handling – Prevents abrupt starts that may damage equipment.

• Industrial Machinery – Supports smooth operation in production environments.

• Mining & Heavy-Duty Equipment – Handles large motors efficiently.

4. Protection & Safety Features

• Overload & Overtemperature Protection – Prevents motor overheating and damage.

• Phase Imbalance & Short Circuit Detection – Ensures system stability.

• Fault Diagnostics & Alarms – Provides real-time alerts for quick troubleshooting.

• Soft Stopping Function – Prevents sudden shutdowns that may harm the system.

5. Installation & Maintenance

• Quick & Easy Installation – Pre-configured for seamless integration.

• Real-Time Monitoring & Display – Simplifies maintenance and diagnostics.

• Durable & Reliable Build – Ensures long-term operation with minimal maintenance.
