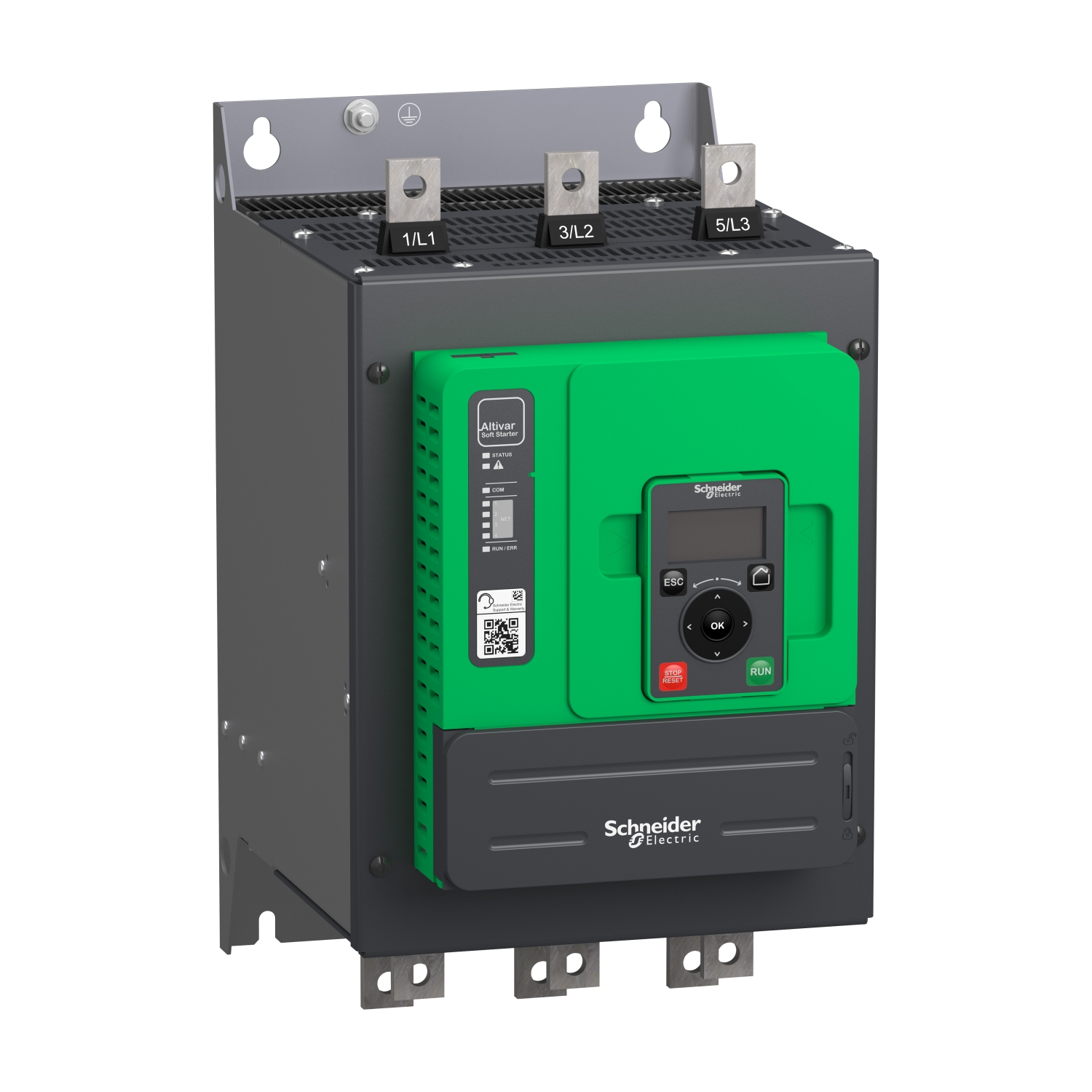

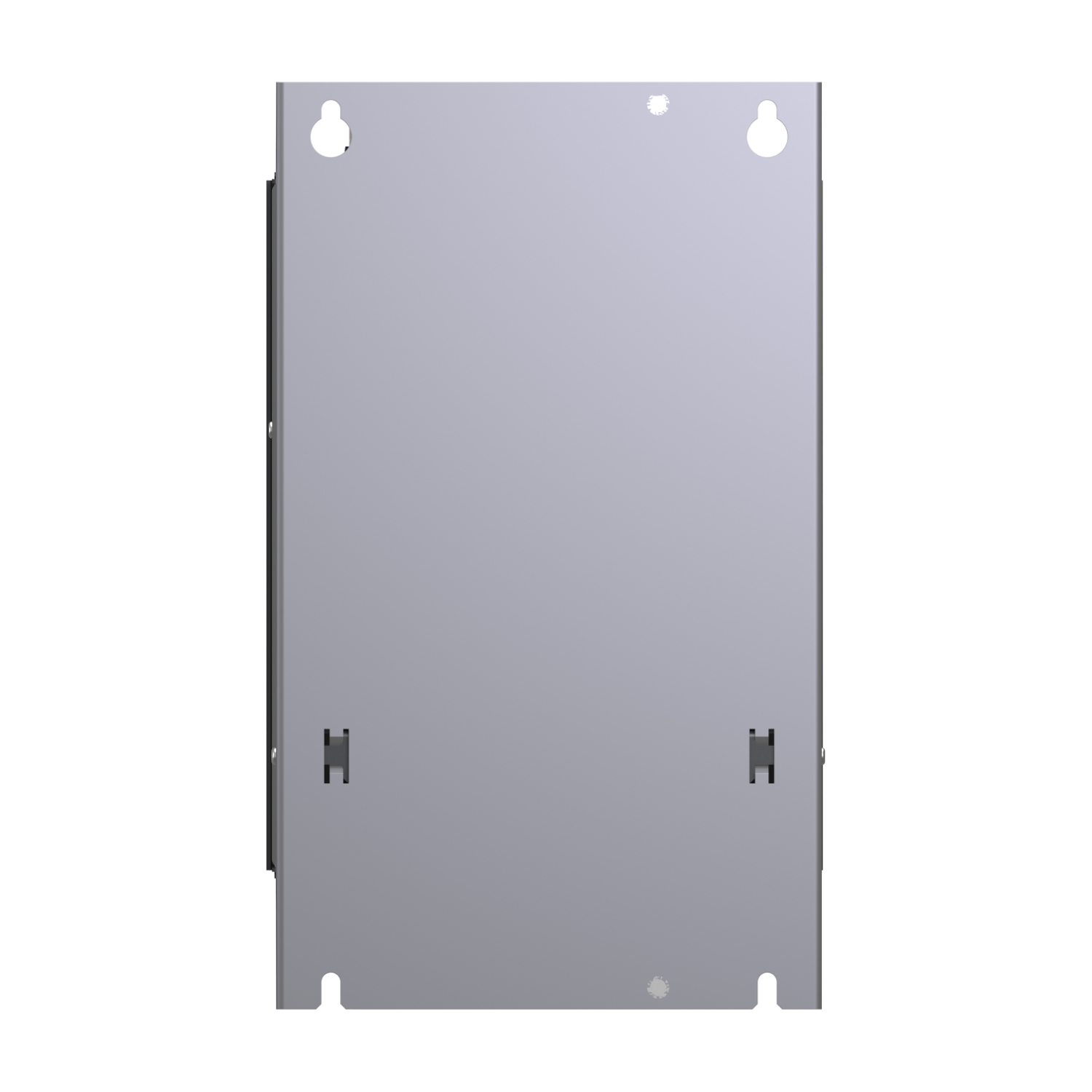

Schneider ATS480C17Y| Soft starter, Altistart 480, 170A, 208 to 690V AC, control supply 110 to 230V AC
Schneider ATS480C17Y | Soft Starter Overview
The Schneider ATS480C17Y is a soft starter from the Altistart 480 series, designed to ensure smooth motor acceleration and deceleration while minimizing mechanical and electrical stress. With a rated current of 170A, this model is ideal for industrial applications that require controlled motor startup and protection.
1. General Specifications
-
Product Name: Schneider ATS480C17Y
-
Series: Altistart 480
-
Function: Soft Starter
-
Rated Current: 170A
-
Operating Voltage: 208V to 690V AC
-
Control Supply Voltage: 110V to 230V AC
2. Key Features & Benefits
Soft Start & Stop: Reduces mechanical and electrical stress on motors.
High Current Capacity: Supports motors requiring up to 170A.
Wide Voltage Range: Operates within 208V to 690V AC, suitable for global applications.
Advanced Motor Protection: Protects against overload, overheating, and short circuits.
User-Friendly Interface: Features digital display and programmable settings for easy operation.
Seamless Integration: Compatible with modern industrial automation systems.
3. Applications
🔹 Pumps & Compressors – Prevents pressure surges and extends equipment life.
🔹 HVAC & Blower Systems – Enhances efficiency by reducing energy spikes.
🔹 Conveyors & Material Handling – Ensures smooth start-up, reducing mechanical wear.
🔹 Mining & Heavy Machinery – Provides stable motor control in demanding conditions.
🔹 Water & Wastewater Treatment – Ensures efficient operation in large pumping systems.
4. Protection & Safety Features
-
Overload Protection – Prevents excessive current draw and extends motor lifespan.
-
Short Circuit Protection – Enhances reliability and prevents electrical faults.
-
Overtemperature Protection – Regulates internal temperature for safe operation.
-
Phase Loss & Imbalance Detection – Ensures stable and efficient motor performance.
5. Installation & Maintenance
Easy Wiring & Setup – Quick integration into electrical control panels.
Real-Time Monitoring & Diagnostics – Helps in preventive maintenance and fault detection.
Durable Industrial Design – Built to withstand harsh environments.
