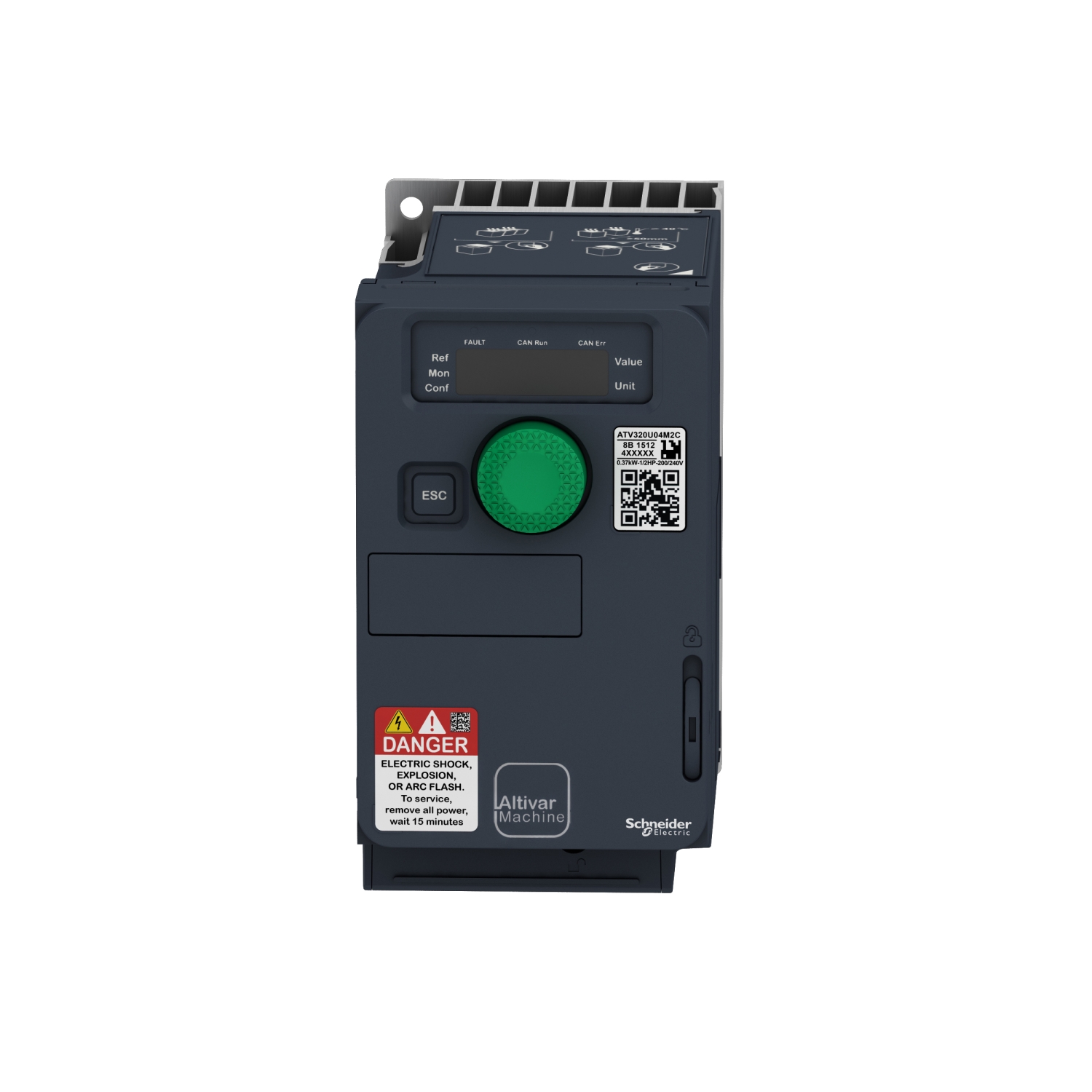

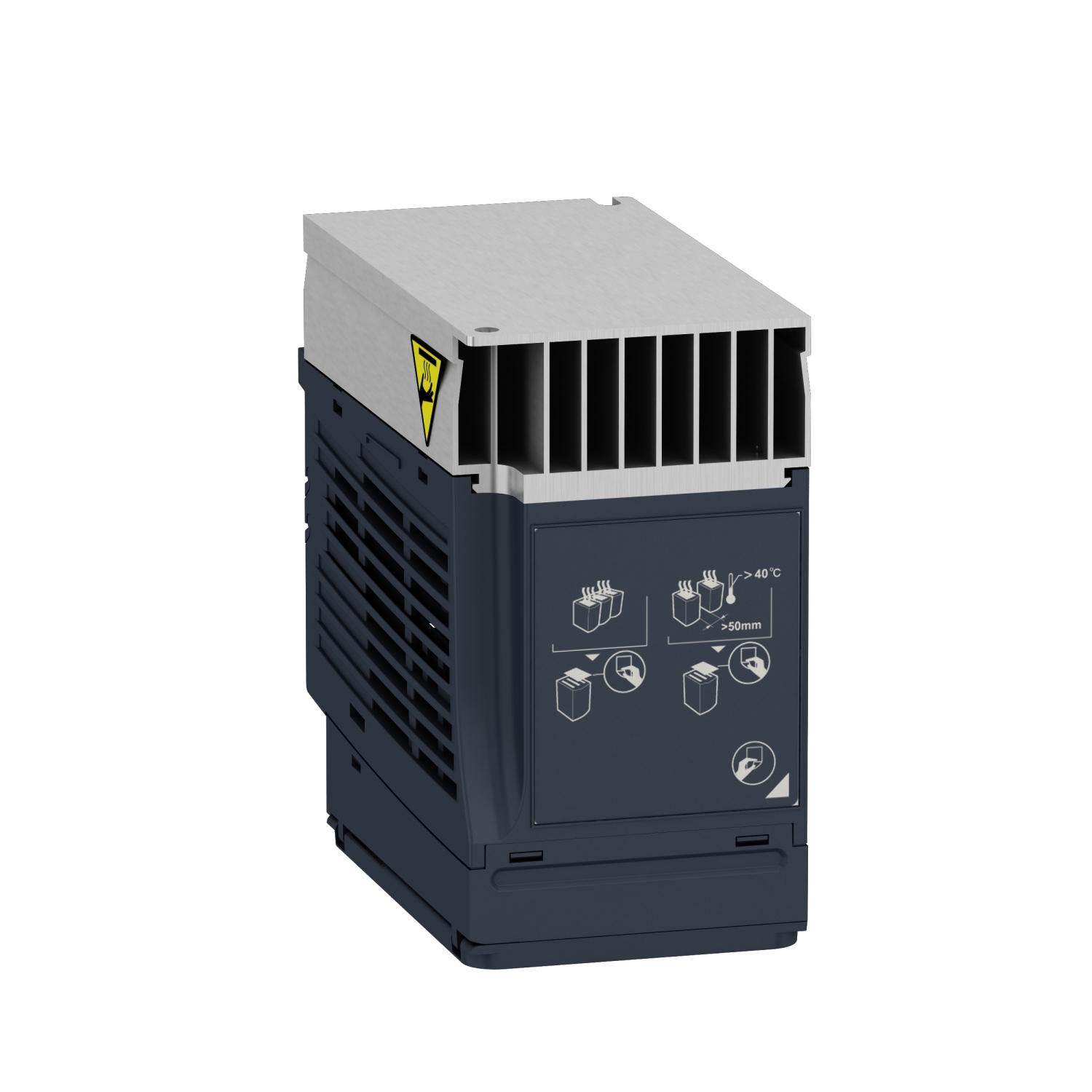

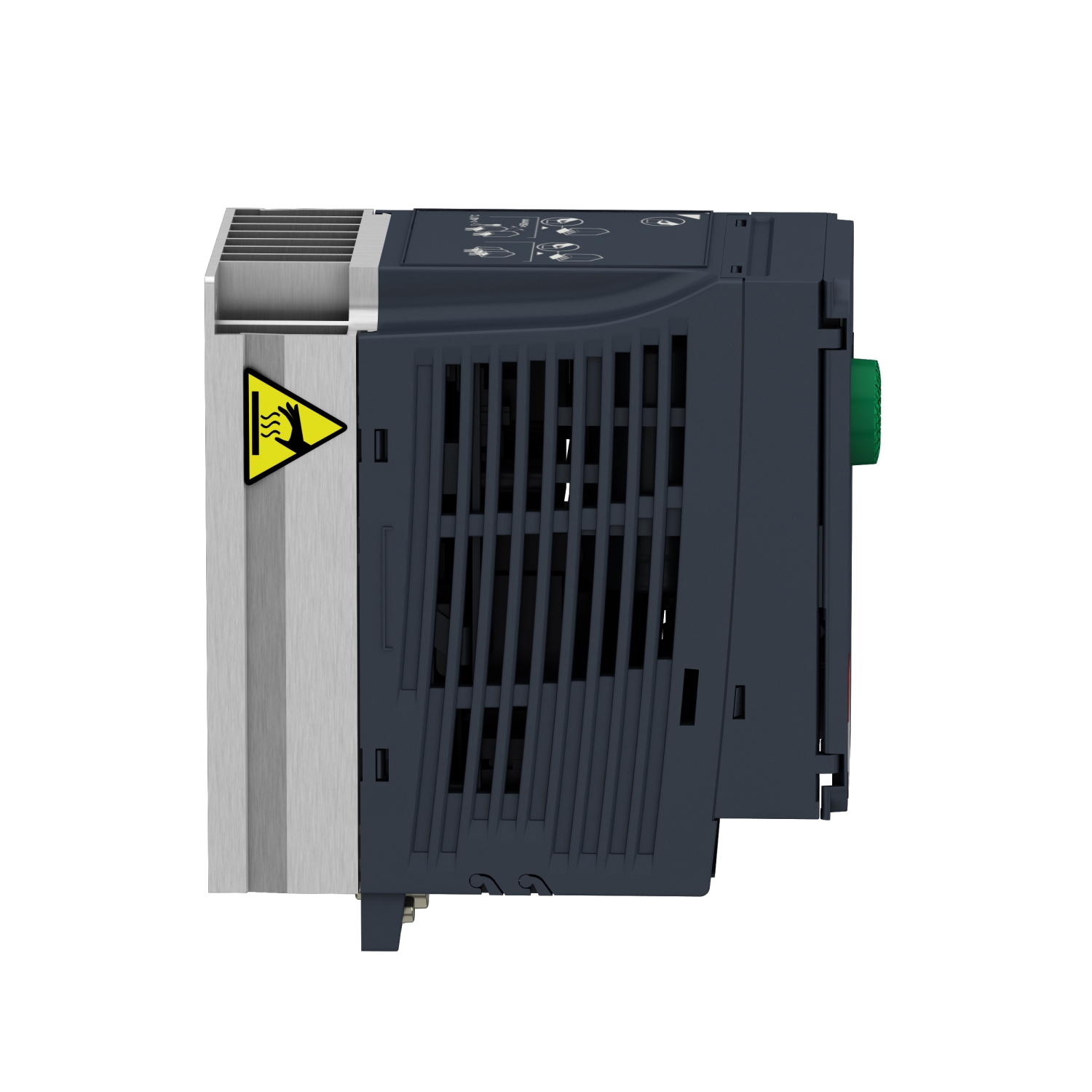

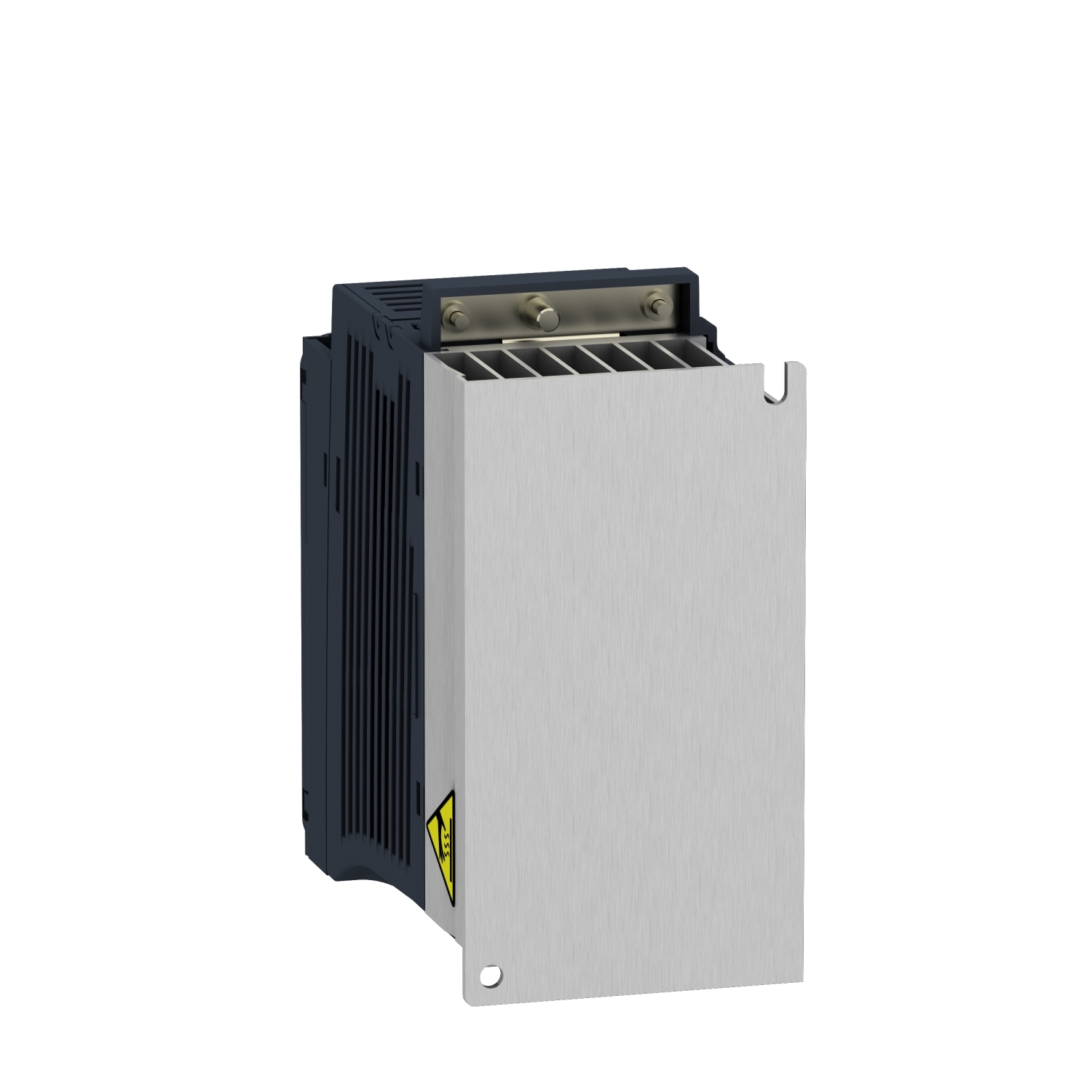

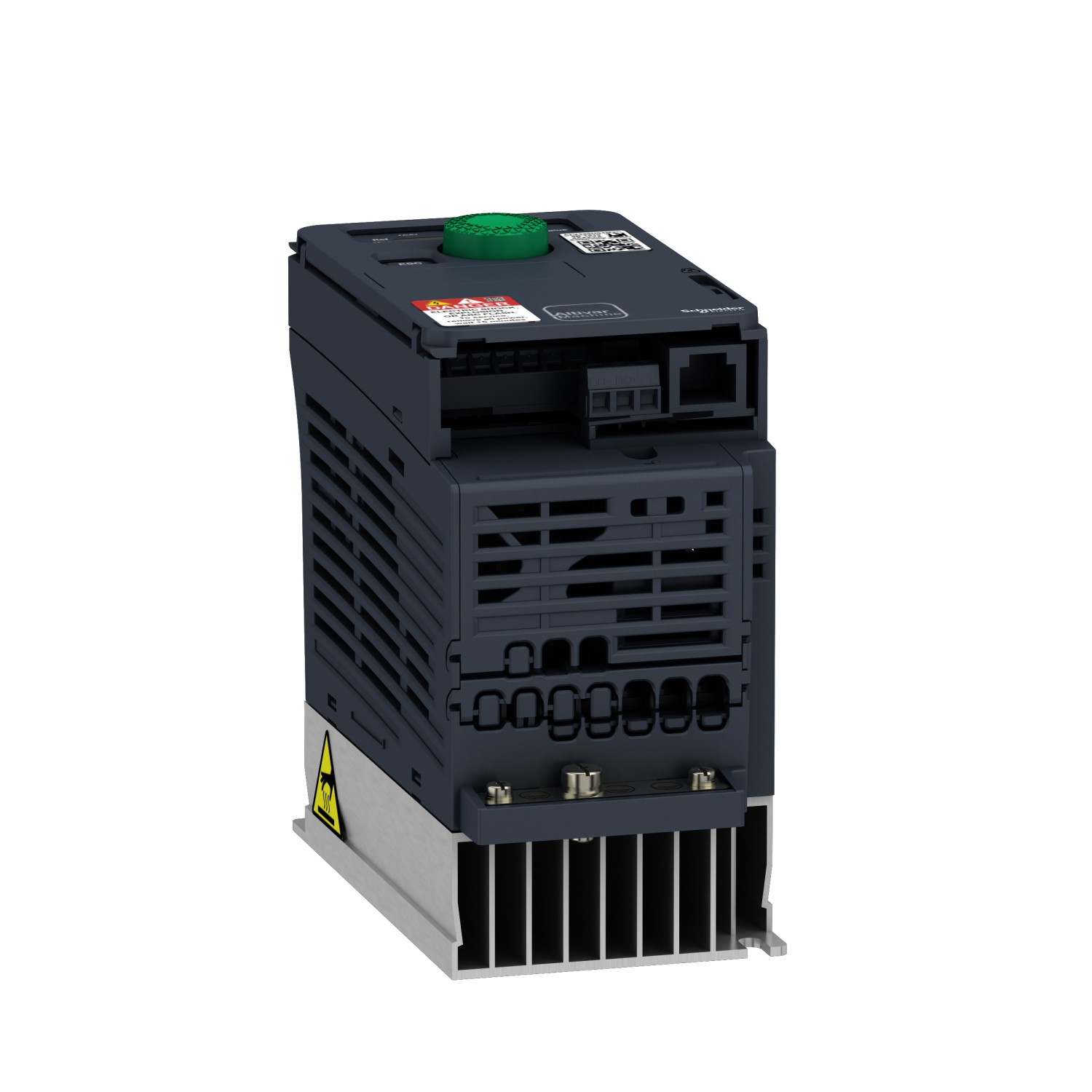

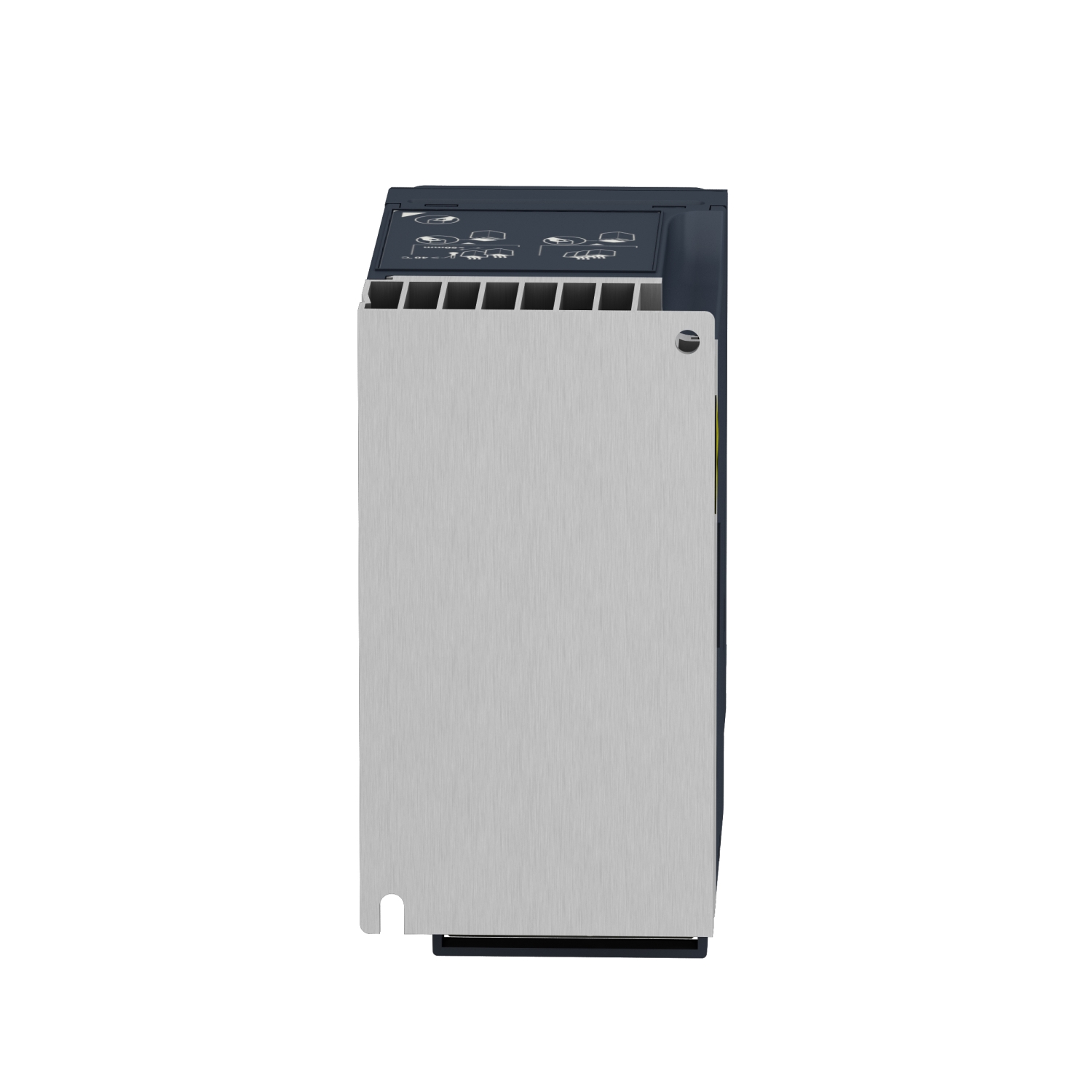

Schneider ATV320U02M2C | Variable Speed Drive Overview
Introduction
In the world of industrial automation, the Schneider ATV320U02M2C stands out as a reliable and efficient variable speed drive. This article dives deep into its features, applications, advantages, installation process, maintenance tips, troubleshooting guide, and a comparative analysis.
What is Schneider ATV320U02M2C?
Schneider ATV320U02M2C is a variable speed drive designed to control the speed of electric motors in various industrial applications. It operates at 0.18 kW and supports 200-240 V with a single-phase input, making it ideal for compact setups.
Features
The ATV320U02M2C boasts several features such as:
- Precise Speed Control: It offers accurate speed control, enhancing process efficiency.
- Compact Design: Its compact size makes it suitable for installations with space constraints.
- Overload Protection: The drive incorporates overload protection, ensuring equipment safety.
- Energy Efficiency: By optimizing motor speed, it helps in reducing energy consumption.
- User-Friendly Interface: The intuitive interface simplifies programming and monitoring.
Applications
This drive finds applications across industries like:
- HVAC Systems: Controlling fan speeds and pumps for efficient climate control.
- Industrial Machinery: Regulating motor speeds in production lines for improved productivity.
- Water Treatment: Managing pumps and valves to maintain water flow rates accurately.
Advantages
The Schneider ATV320U02M2C offers several advantages:
- Enhanced Performance: It improves system performance by providing precise speed control.
- Space Optimization: Its compact design saves valuable space in industrial setups.
- Cost Savings: By reducing energy consumption, it contributes to cost savings in the long run.
- Easy Integration: The drive seamlessly integrates with existing control systems, reducing installation time.
Installation Process
Installing the ATV320U02M2C is straightforward, involving:
- Mounting: Securely mount the drive in a suitable location.
- Wiring: Connect the drive to the power supply and motor following the manufacturer’s guidelines.
- Configuration: Configure the drive parameters as per the specific application requirements.
Maintenance Tips
To ensure optimal performance and longevity, follow these maintenance tips:
- Regular Inspections: Check for any signs of wear or damage and address them promptly.
- Cleanliness: Keep the drive and surrounding area clean to prevent dust accumulation.
- Firmware Updates: Stay updated with the latest firmware releases for enhanced functionality.
Troubleshooting
If encountering issues with the drive, refer to the troubleshooting guide provided by Schneider Electric or consult a qualified technician for assistance.
Comparison
When comparing the ATV320U02M2C with similar drives in the market, consider factors such as price, features, warranty, and customer reviews to make an informed decision.
Conclusion
The Schneider ATV320U02M2C variable speed drive offers a blend of efficiency, reliability, and ease of use, making it a preferred choice for various industrial applications.
