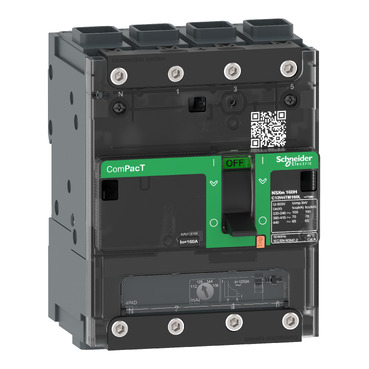

Schneider C11N6TM050B | Circuit breaker ComPacT NSXm N (50kA at 415VAC), 4 Poles 3d, 50A rating TMD trip unit, compression lugs and busbar connectors

Description

Schneider C11N6TM050B | Circuit breaker ComPacT NSXm N (50kA at 415VAC), 4 Poles 3d, 50A rating TMD trip unit, compression lugs and busbar connectors

Technical Specifications C11N6TM050B

• Product Reference: C11N6TM050B

• Product Range: ComPacT NSXm N

• Device Type: Molded Case Circuit Breaker (MCCB)

• Rated Current (In): 50 Amperes

• Rated Operational Voltage: Up to 415 VAC

• Breaking Capacity: 50 kA at 415 VAC

• Poles: 4 Poles (3D – 3 protected poles + 1 switched, unprotected neutral)

• Trip Unit Type: TMD (Thermal Magnetic)

• Neutral Protection: Neutral is switched but not protected

• Connection Type: Compression lugs and busbar connectors

• Mounting Mode: Fixed installation

• Control Method: Manual

• Standards Compliance: IEC 60947-2

• Frequency: 50/60 Hz

Key Features C11N6TM050B

• High Fault Interrupting Capacity: Offers reliable protection against short circuits up to 50 kA at 415 VAC, suitable for critical and high-load applications.

• Thermal-Magnetic Trip Unit: Ensures dependable protection from overloads and short circuits with quick and accurate tripping.

• Versatile Connection Options: Supplied with both compression lugs and busbar adapters to fit various panel configurations and installation preferences.

• Compact Footprint: Space-saving design ideal for modern, high-density electrical panels.

• 4-Pole 3D Configuration: Provides three-phase protection with a switched neutral, improving circuit isolation and safety.

• Visual Status Indicators: ON, OFF, and TRIP positions are clearly shown for fast identification and safe maintenance.

• Accessory Compatibility: Fully compatible with Schneider’s range of auxiliary modules such as auxiliary contacts, under-voltage releases, and shunt trips.

Applications

• Industrial Distribution Systems: Protects power circuits in factories, workshops, and automated control systems.

• Commercial Installations: Ideal for use in malls, office towers, hospitals, and hotels requiring high protection performance.

• Infrastructure Projects: Used in transportation facilities, airports, and utility buildings.

• Renewable Energy Installations: Provides protection in solar, wind, and hybrid systems.

• Backup and Emergency Power Systems: Safeguards connections to generators, UPS units, and transfer switches.

• General Power Distribution: Suitable for main feeders and sub-distribution in LV switchboards.
