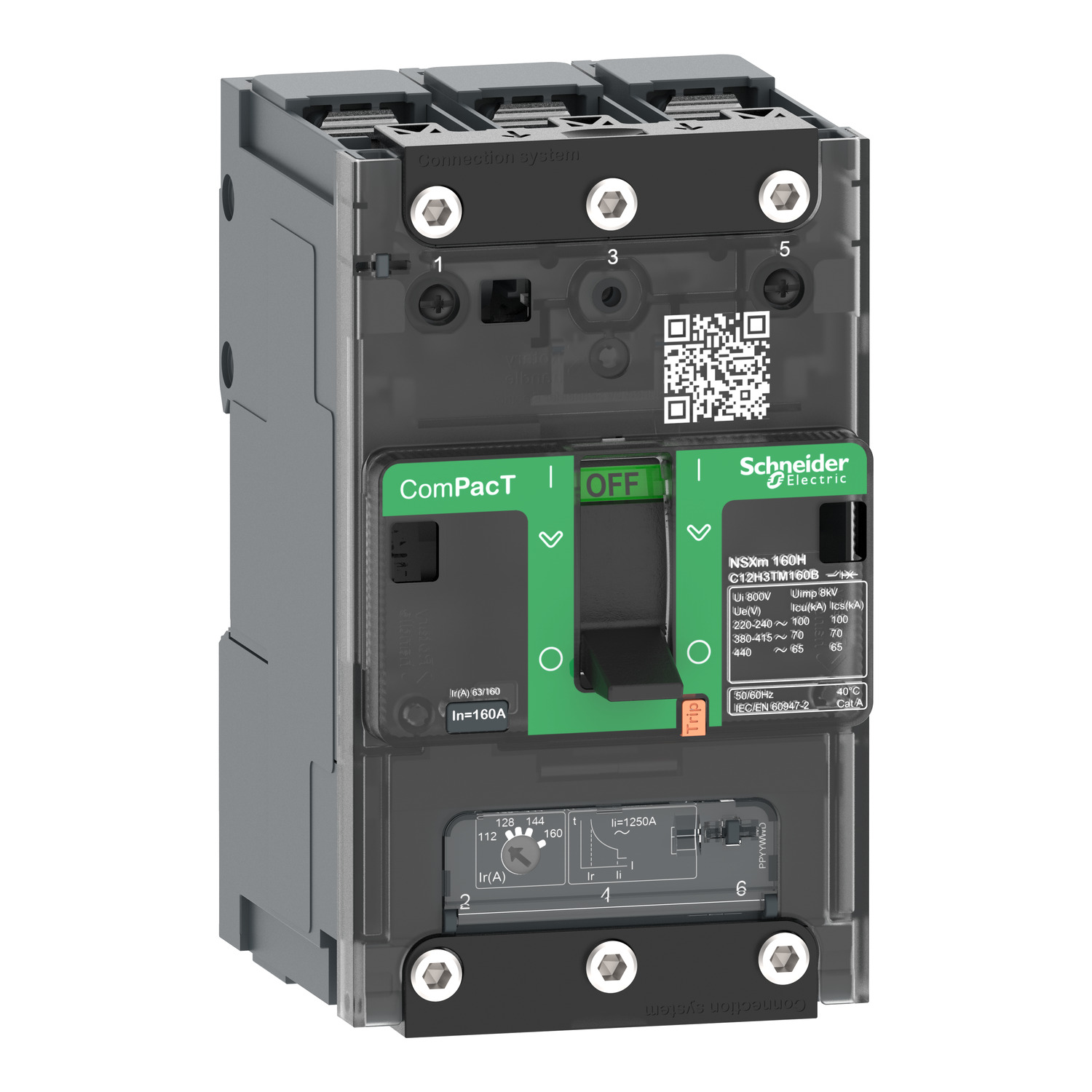

Schneider C12N3TM160B | Circuit breaker ComPacT NSXm N (50kA at 415VAC), 3 Poles 3d, 160A rating TMD trip unit, compression lugs and busbar connectors
1. Technical Specifications C12N3TM160B
-
Product Reference: C12N3TM160B
-
Product Range: ComPacT NSXm
-
Frame Type: NSXm N (Normal Breaking Capacity version)
-
Rated Current (In): 160 A
-
Number of Poles: 3 poles (3d – 3-pole device)
-
Breaking Capacity: 50 kA at 415 VAC (IEC 60947-2)
-
Trip Unit Type: TMD (Thermal Magnetic Trip Unit)
-
Thermal Protection: For overload
-
Magnetic Protection: For short circuit
-
-
Connections Provided: Compression lugs and busbar connectors
-
Mounting Type: Fixed
-
Operating Voltage: Up to 415 VAC
-
Frequency: 50/60 Hz
-
Standards: IEC 60947-2 compliant
-
Ambient Operating Temperature: Typically -25°C to +70°C
2. Key Features
-
Designed for compact low-voltage power distribution with high performance.
-
50kA breaking capacity makes it suitable for industrial and commercial installations with moderate fault levels.
-
Equipped with a fixed TMD trip unit for reliable thermal and magnetic protection.
-
Compact dimensions for space-saving in switchboards and distribution panels.
-
Compression lugs and busbar-ready terminals provide flexibility in wiring and installation.
-
Front-facing terminal access for easy maintenance and fast replacement.
-
Supports modular add-ons such as auxiliaries, rotary handles, and communication accessories.
3. Applications
-
Suitable for main circuit protection in low-voltage electrical distribution systems.
-
Ideal for industrial panels, machinery, commercial buildings, and energy infrastructure.
-
Can be used to protect feeders, lighting systems, HVAC equipment, and general power loads.
-
Offers protection for applications where a high breaking capacity is needed but extreme fault levels (above 50kA) are not expected.
