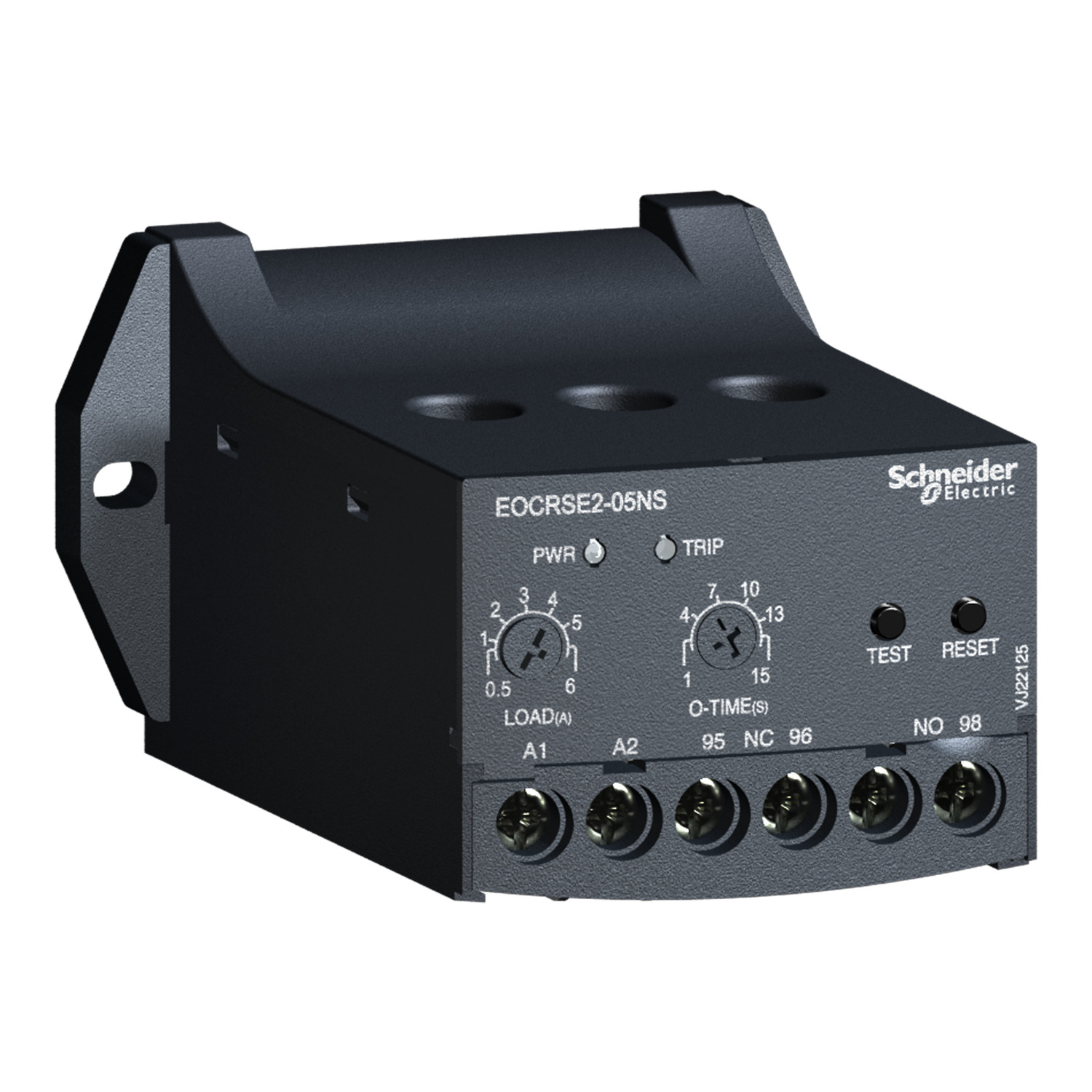

Schneider EOCRSE2-05NS | electronic overcurrent relay – 0.5..6 A – 220 V AC

Description

Schneider EOCRSE2-05NS | electronic overcurrent relay – 0.5..6 A – 220 V AC

Product Overview: Schneider EOCRSE2-05NS Overcurrent Relay

The Schneider Electric EOCRSE2-05NS is a compact and reliable electronic overcurrent relay, designed to protect motors and electrical systems from overload and phase failure. It offers adjustable current settings and fast response, making it ideal for precision motor protection.

Key Features:

• Brand: Schneider Electric

• Series: EOCR-SE2

• Model Number: EOCRSE2-05NS

• Type: Electronic Overcurrent Relay

• Application: Motor protection against overload and phase loss

Electrical Specifications:

• Current Adjustment Range:
  – 0.5 to 6 A (adjustable)

• Rated Control Voltage:
  – 220V AC

• Trip Class:
  – Configurable for quick fault detection

• Functionality:
  – Overload, phase loss, and locked rotor protection

Protection Features:

• Overcurrent Detection:
  – Detects excessive current flow and trips the motor

• Phase Loss Protection:
  – Identifies missing phase conditions

• Manual or Auto Reset:
  – Selectable reset options for flexible control

• LED Status Indicators:
  – Provides visual fault and operation feedback

Design and Mounting:

• Compact Design:
  – Ideal for space-limited control panels

• Mounting Type:
  – DIN rail or panel mount

• Wiring Type:
  – Screw terminal connections

• User Interface:
  – Easy-to-adjust dials for current and delay settings

Applications:

• Small to medium motor protection

• Industrial automation panels

• Pumps, compressors, and fans

• Conveyor systems and light machinery

• HVAC units and building control systems

Benefits:

• Adjustable current range for precise protection

• Fast trip response improves motor longevity

• Clear LED diagnostics reduce downtime

• Simple installation and configuration

• Reliable performance in continuous operation

Typical Industries:

• Manufacturing and Packaging

• Building Automation

• Food and Beverage

• Water Treatment Plants

• Material Handling Systems
