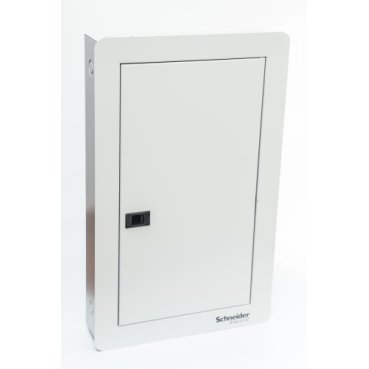

Schneider EZ9EROW412 | Horizontal metal distribution board, Easy9, 4 row, 48 ways
1. Technical Specifications EZ9EROW412
-
Product Reference: EZ9EROW412
-
Series: Easy9
-
Product Type: Low-voltage distribution board
-
Mounting Type: Surface-mounted
-
Orientation: Horizontal
-
Number of Rows: 4
-
Total Number of Ways: 48
-
12 ways per row × 4 rows
-
-
Modular Device Size: 18 mm DIN rail modules
-
Material: Powder-coated sheet metal (steel)
-
Color: White (RAL 9003 or equivalent)
-
Enclosure Type:
-
Door: Hinged front cover (metal), may support padlocking
-
With removable front faceplate
-
-
IP Rating: IP30 (suitable for indoor installations only)
-
Rated Insulation Voltage (Ui): 500 V
-
Rated Operational Voltage: 230/400 V AC
-
Frequency: 50/60 Hz
-
Earth and Neutral Terminals: Included, pre-installed
-
Busbar and DIN Rails: Supplied with the unit
-
Knockouts: Top, bottom, and sides for cable entry
-
Conformity & Standards:
-
IEC 61439-3 (Assembly standard)
-
RoHS compliant
-
CE certified
-
-
Fire Resistance: Flame-retardant, halogen-free
-
Operating Temperature Range: –5°C to +60°C
-
Typical Dimensions (approx.):
-
Width: ~500 mm
-
Height: ~650 mm
-
Depth: ~100 mm
(May vary slightly by version or accessory configuration)
-
2. Key Features EZ9EROW412
-
Accommodates up to 48 single-pole modular devices in a structured 4-row layout
-
Designed for neat and safe distribution of power in residential and light commercial applications
-
Durable metal construction ensures mechanical robustness and long service life
-
Spacious interior allows for easy wiring, routing, and accessibility for maintenance
-
Modular design supports integration of MCBs, RCCBs, RCBOs, surge protectors, timers, and other Easy9 devices
-
Supplied complete with:
-
DIN rails
-
Earth & neutral bars
-
Busbars (phase distribution, if included)
-
Labeling strips
-
-
Clear labeling space and door for easy identification of circuits
-
Front door adds protection and aesthetics, while keeping devices accessible
-
Complies with international safety and performance standards
-
Optimized for fast installation and configuration flexibility
3. Applications
-
Ideal for use in:
-
Residential buildings (large homes, villas, apartments)
-
Commercial spaces (shops, showrooms, clinics, offices)
-
Light industrial environments
-
-
Serves as a main or sub-distribution panel for managing lighting, power sockets, air conditioning units, and general circuits
-
Suitable for final distribution of electricity in low-voltage electrical networks
-
Commonly installed in electrical closets, corridors, or service rooms
-
Enables centralized circuit protection and safe power distribution in multi-circuit systems
