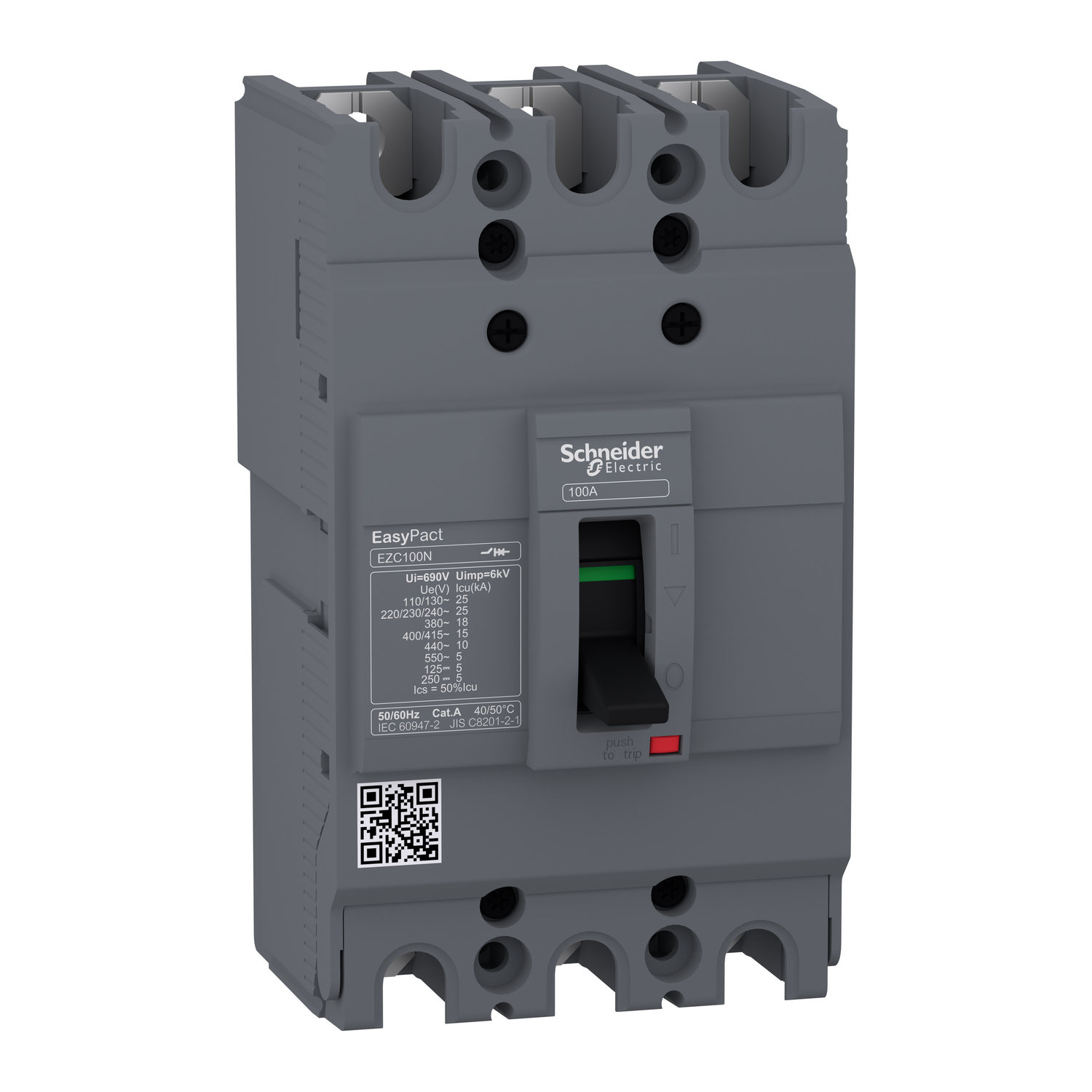

Schneider EZC100N3060 | circuit breaker Easypact EZC100N – TMD – 60 A – 3 poles 3d

Schneider EZC100N3060 | Circuit Breaker EasyPact EZC100N – TMD – 60 A – 3 Poles 3D

The Schneider EZC100N3060 is a molded case circuit breaker (MCCB) from the EasyPact EZC100N series, designed to provide robust protection for electrical systems. It features a thermal-magnetic (TMD) trip unit that safeguards against overloads and short-circuits, making it ideal for a wide range of industrial and commercial applications.

 Technical Specifications

• Product Model: EZC100N3060

• Product Range: EasyPact EZC100N

• Rated Current (In): 60 A

• Poles: 3P (3 poles)

• Trip Unit Type: TMD (Thermal-Magnetic, fixed settings)

• Terminal Type: 3D (Direct connection terminals)

• Rated Operational Voltage (Ue): Up to 415 V AC

• Rated Insulation Voltage (Ui): 690 V AC

• Breaking Capacity (Icu):

  • Up to 25 kA at 415 V AC

• Utilization Category: A

• Conformity Standards: IEC 60947-2

• Mounting Type: Fixed, panel mounting

 Key Features

• Thermal-Magnetic Trip Unit:

  • Provides reliable protection against overloads and short circuits.

• High Breaking Capacity:

  • Ensures dependable performance even under fault conditions.

• Compact Design:

  • Ideal for space-constrained panels or enclosures.

• Direct Mount Terminals (3D):

  • Simplifies wiring and installation.

• Industrial-Grade Reliability:

  • Suitable for demanding environments.

 Applications

• Power distribution networks

• Industrial machinery control

• Motor feeders

• HVAC systems

• Commercial and residential panels

The Schneider EZC100N3060 is a reliable and economical MCCB choice for protecting circuits up to 60 A, ensuring safety, performance, and peace of mind in every electrical installation.
