Schneider G12UVR230AC | MN undervoltage release, GoPact MCCB 125, 240VAC 50/60Hz

Description

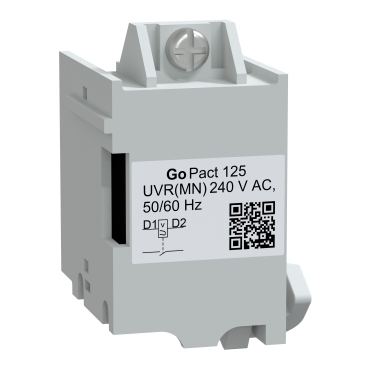

Schneider G12UVR230AC | MN Undervoltage Release for GoPact MCCB 125, 230V AC 50/60Hz

1. Introduction

The Schneider G12UVR230AC is an MN undervoltage release designed for use with the GoPact MCCB 125A. It ensures that the circuit breaker trips automatically when the supply voltage drops below a critical level, thereby protecting electrical systems from instability and preventing equipment damage.

2. Key Features

• Undervoltage Protection – Trips the MCCB when voltage falls below a preset threshold

• 230V AC Rated Voltage – Operates on 50/60Hz frequency

• Designed for GoPact MCCB 125 – Ensures compatibility with the 125A breaker

• Prevents Electrical Damage – Essential for motor and power protection

• Quick & Reliable Tripping – Reacts instantly to voltage fluctuations

• Compact, Durable Build – Suitable for industrial and commercial applications

3. Technical Specifications

• Product Type: MN Undervoltage Release

• Rated Voltage: 230V AC

• Frequency: 50/60Hz

• Compatible MCCB Model: GoPact MCCB 125A

• Function: Automatically trips MCCB when voltage drops below the safe limit

• Installation: Mounted inside the MCCB enclosure

• Operating Temperature: -25°C to +55°C

• Standards Compliance: IEC 60947-2

4. Applications

The Schneider G12UVR230AC is commonly used in:

• Motor Control & Protection – Prevents damage caused by voltage dips

• Power Distribution Systems – Ensures stable operation in electrical networks

• Automation & Control Panels – Protects industrial equipment from power failures

• Critical Infrastructure – Ensures system stability in hospitals, data centers, and factories

5. Benefits

Enhanced Electrical Safety – Trips the MCCB in undervoltage situations
Prevents Motor & Equipment Damage – Essential for sensitive electrical loads
High Reliability & Performance – Designed for industrial applications
Seamless Integration – Compatible with GoPact MCCB 125A
Meets International Standards – Ensures compliance with IEC 60947-2
