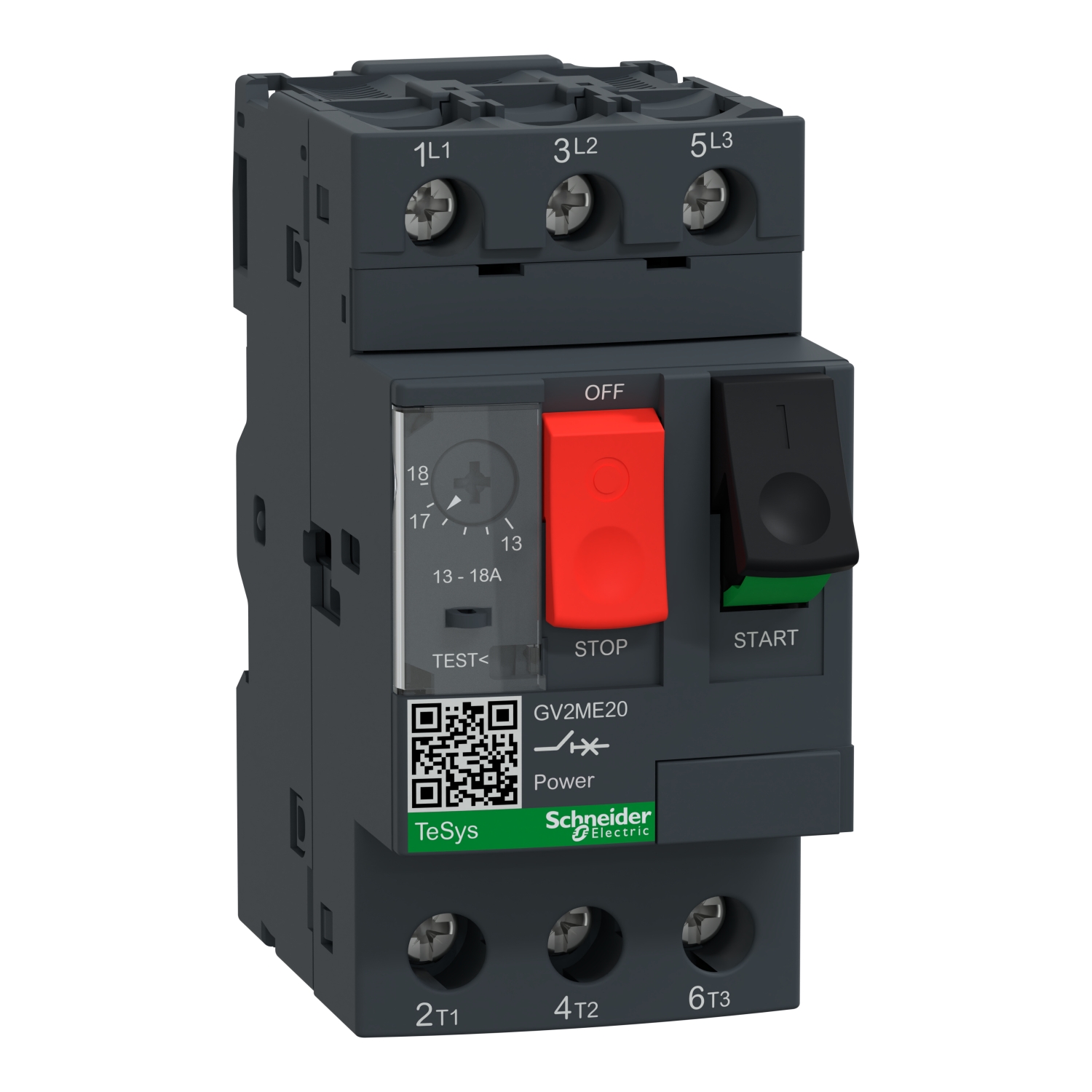

Schneider GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals

Description

Schneider GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals

The Schneider GV2ME20 is a durable and compact motor circuit breaker from the trusted TeSys GV2 series, designed to provide efficient protection for motors within the 13 to 18 Ampere range. It offers both thermal and magnetic protection, making it ideal for a wide range of industrial and commercial motor applications.

 Key Features:

• Product Reference: GV2ME20

• Brand: Schneider Electric

• Series: TeSys GV2

• Device Type: Motor Circuit Breaker

• Protection Type: Thermal-magnetic

• Number of Poles: 3P (Three poles)

• Adjustable Current Range: 13 to 18 A

• Terminals: Screw clamp terminals

• Manual Operation: ON/OFF push-buttons on the front panel

 Primary Applications:

• Designed for motor protection

• Ideal for industrial control panels, HVAC systems, compressors, fans, and pumps

• Widely used in machine automation and building infrastructure

 Key Advantages:

• Thermal Protection: Prevents overheating from motor overloads

• Magnetic Protection: Instantaneous trip for short-circuit events

• Compact Design: Saves space in panels and MCCs

• Manual Reset: With clear trip indicator

• Easy Adjustment: Dial to set precise current range

• Robust Construction: Built for reliable and long-term operation

 Technical Specifications:

• Current Range: 13 – 18 A

• Rated Insulation Voltage: 690V

• Rated Operational Voltage: Up to 690V AC

• Frequency: 50/60 Hz

• Breaking Capacity: High, suited for industrial environments

• Mounting: DIN rail or screw mount

• Standards Compliance: IEC 60947-2 and IEC 60947-4-1

 Use Case Examples:

• Control cabinets for industrial machines

• Pump and fan motor protection

• Conveyor systems and automated production lines

• Electrical distribution in HVAC setups

 User Benefits:

• All-in-One Protection: Combines overload and short-circuit protection

• Quick and Easy Installation with standard screw terminals

• Expandable System: Can be equipped with auxiliary contacts, shunt trip, and more

• Visual Status Display helps in fast diagnostics

• Reliable Motor Start/Stop Control directly from the front panel
