Schneider GVAD0110 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NC (fault)

Schneider GVAD0110 | TeSys GV2 & GV3 – Auxiliary Contact – 1 NO + 1 NC (Fault)

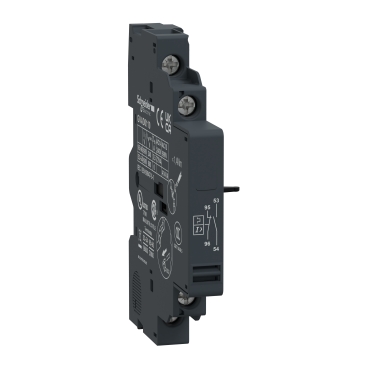

The Schneider GVAD0110 is an auxiliary contact block designed for use with TeSys GV2 and GV3 motor starters and circuit breakers. This component provides additional contacts for fault signaling, making it essential for monitoring and control systems in industrial applications.

General Information:

• Brand: Schneider Electric

• Series: TeSys GV2 & GV3

• Model Number: GVAD0110

• Product Type: Auxiliary contact block

• Contact Configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)

• Purpose: Fault signaling and control applications

Key Features:

• Dual Contact Configuration: Includes one Normally Open (NO) and one Normally Closed (NC) contact, providing both signaling and control flexibility

• Compatibility: Designed to work seamlessly with TeSys GV2 and GV3 motor starters and circuit breakers

• Fault Indication: Ideal for fault detection and signaling in motor control and protection systems

• Compact Design: Easily mounts onto TeSys GV2 or GV3 units for space-saving installation

• Reliable Operation: Ensures dependable performance in critical applications

Technical Specifications:

• Contact Configuration: 1 NO + 1 NC

• Rated Current: 10 A

• Rated Voltage: 690 V AC

• Operating Temperature Range: -5°C to +60°C

• Standards Compliance: IEC 60947-5-1

• Mounting: Snap-on to TeSys GV2 & GV3 units

• IP Rating: IP20 for protection against touch

Applications:

• Fault signaling in motor control systems

• Auxiliary control circuits in industrial automation

• Status monitoring in motor starters and circuit breakers

• Fault detection in equipment protection systems

• Alarm systems in electrical panels

Benefits:

• Enhances motor and circuit breaker monitoring by adding fault signaling capability

• Provides reliable operation with dual contact configuration for flexible use

• Easy integration with TeSys GV2 & GV3 products

• Reduces system downtime by enabling quick fault detection

• Supports compliance with international electrical standards
