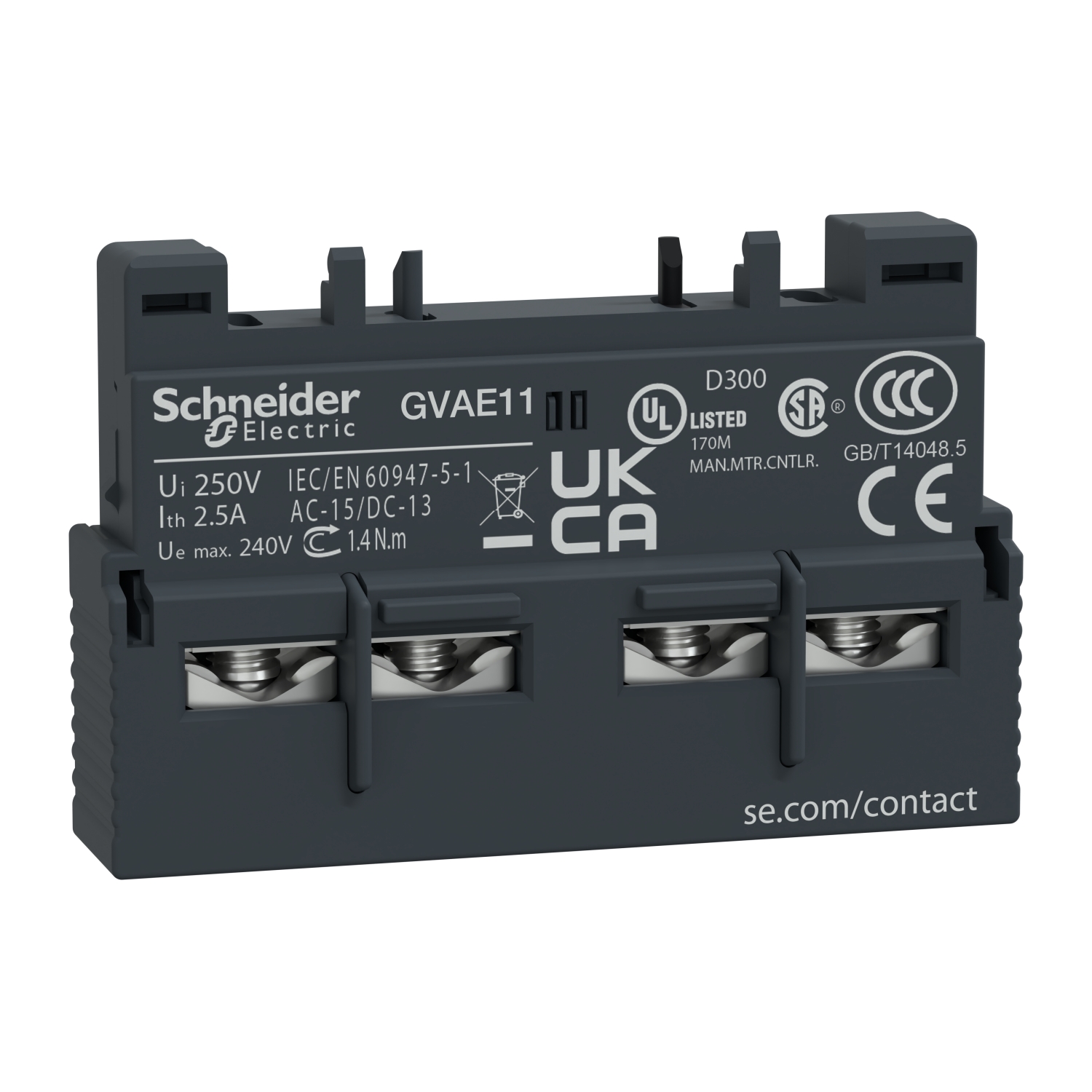

Schneider GVAE11 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NC
The Schneider Electric GVAE11 is an auxiliary contact block designed for use with TeSys GV2 and GV3 motor circuit breakers. It provides one normally open (1 NO) and one normally closed (1 NC) contact, enabling remote signaling of the circuit breaker status (ON/OFF or TRIP). It is ideal for control and monitoring applications in industrial automation.
Key Benefits:
-
Quick Mounting: Easy front snap-on assembly without tools
-
Compact Design: Saves space inside panels
-
Dual Functionality: Provides both open and closed contact states for versatile control logic
-
Reliable Performance: Built for industrial environments with frequent operation cycles
Typical Applications:
-
Status indication of motor circuit breakers
-
Integration into control panels and PLC systems
-
Signaling for remote monitoring and safety interlocks
-
Industrial machinery, HVAC systems, pump stations
-
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
