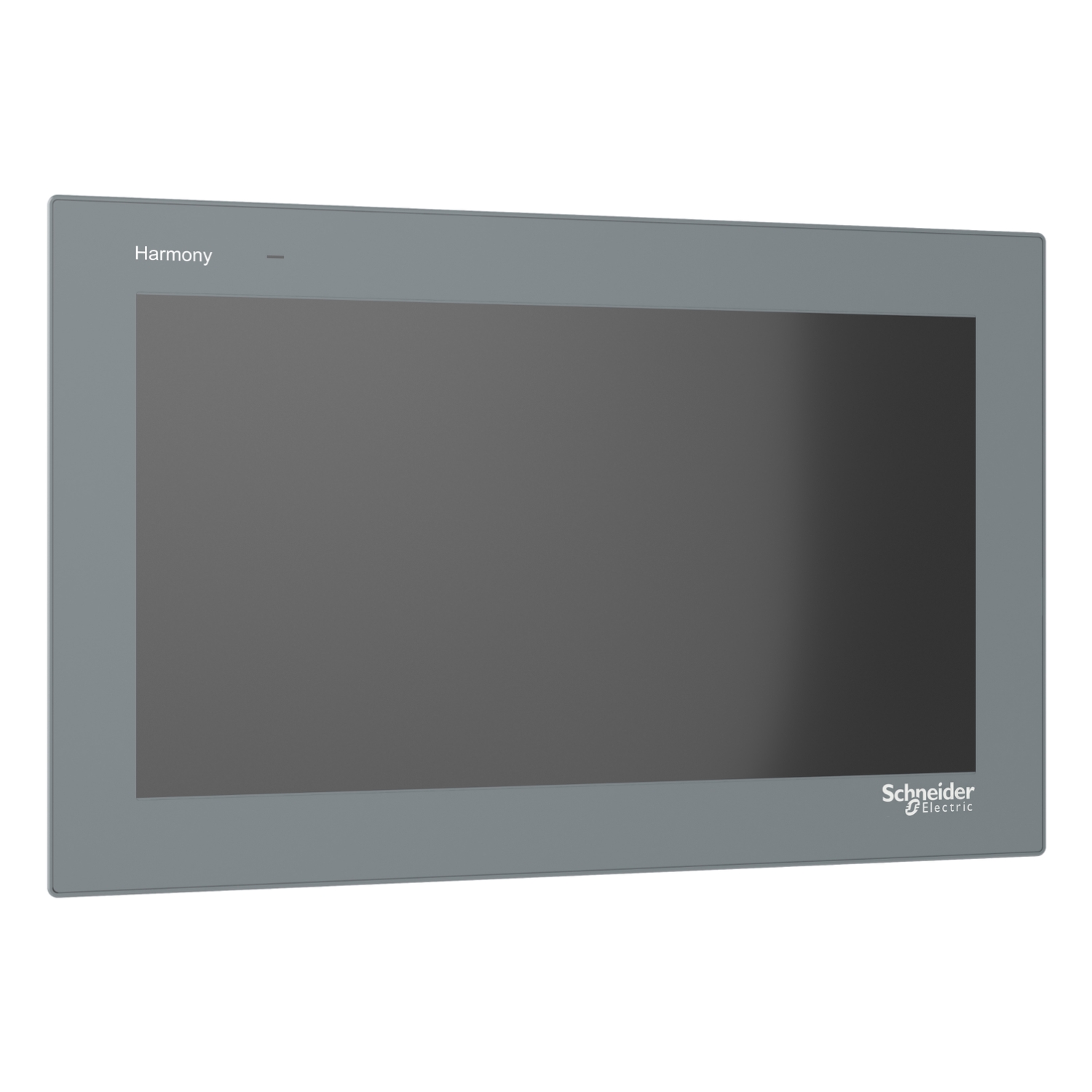

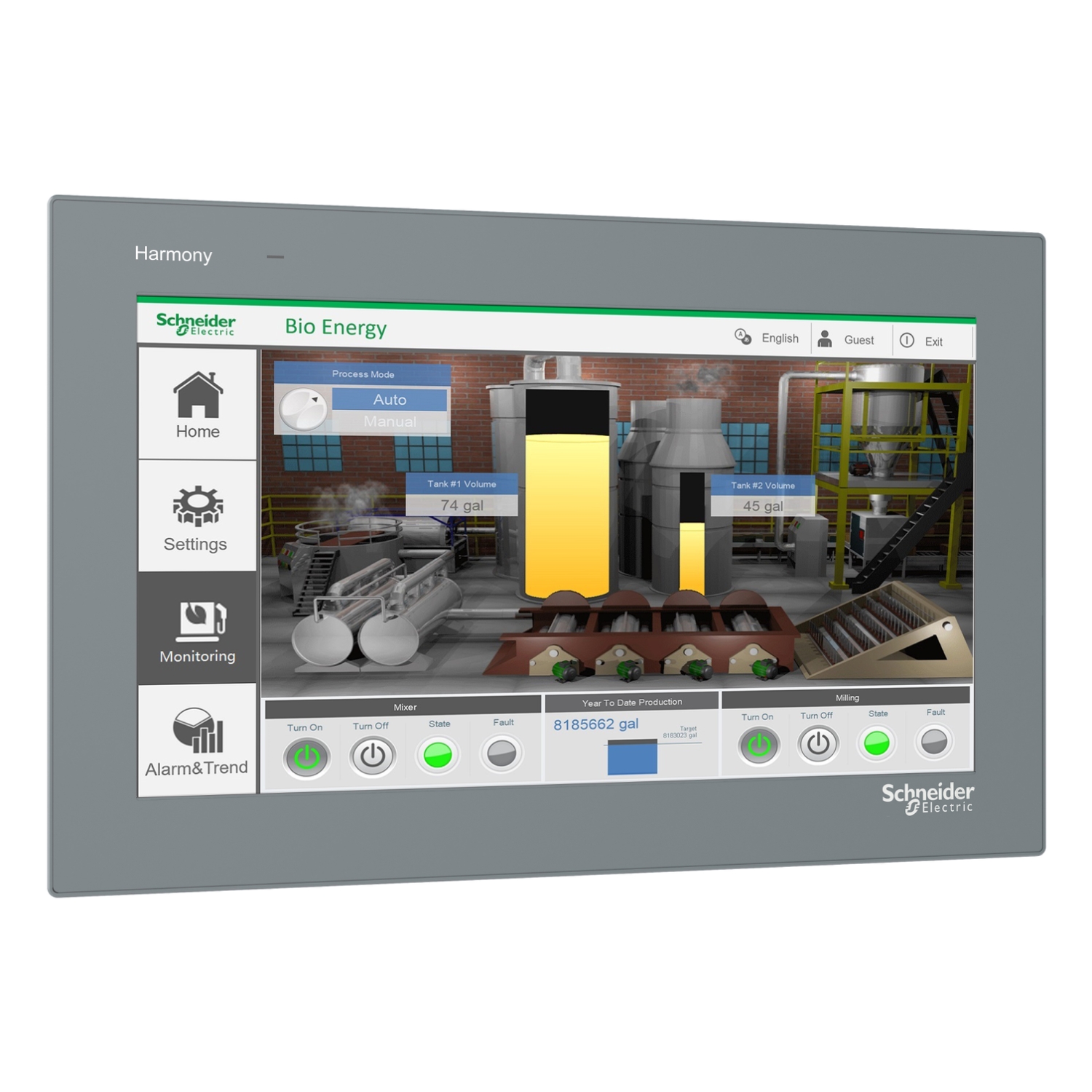

Schneider HMIET6700 | 15″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

Description

Schneider HMIET6700 | 15″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

The Schneider HMIET6700 is a powerful 15-inch wide-screen Human-Machine Interface (HMI) designed to meet the demands of modern industrial automation. It offers intuitive control, rich connectivity, and industrial-grade reliability, making it ideal for large and complex machine interfaces.

Technical Specifications:

• Display Size: 15 inches (wide screen, 16:9 aspect ratio)

• Display Type: TFT LCD with 16 million colors

• Resolution: Typically 1366 x 768 or higher (HD)

• Touchscreen Type: Resistive or capacitive (model dependent)

• Communication Interfaces:

  • 2 × COM ports (RS232/RS485)

  • 1 × Ethernet port (10/100 Mbps)

  • 1 × USB host port

  • 1 × USB device port

• Real-Time Clock (RTC): Built-in

• Power Supply: 24V DC

• Front Panel Protection: IP65 (dust and water resistant)

• Mounting Type: Panel mount

• Operating Temperature: 0°C to +50°C

Key Features:

• Large 15” high-resolution screen allows for enhanced visualization of processes, alarms, and machine statuses.

• Advanced communication capabilities, including dual COM ports and Ethernet, ensure seamless integration with PLCs, drives, and SCADA systems.

• Built-in RTC provides accurate time-stamping for alarms, event logs, and data tracking.

• USB host/device support enables convenient data backup, firmware updates, and external device connectivity.

• Rugged design suitable for 24/7 industrial operation in harsh environments.

Typical Applications:

• Factory automation systems requiring clear and centralized monitoring and control.

• Industrial machinery control panels in sectors such as packaging, automotive, and food processing.

• SCADA and BMS systems where real-time control and logging are critical.

• OEM equipment integration, providing intuitive user interfaces.

• Energy and utility management where large displays enhance operator usability.
