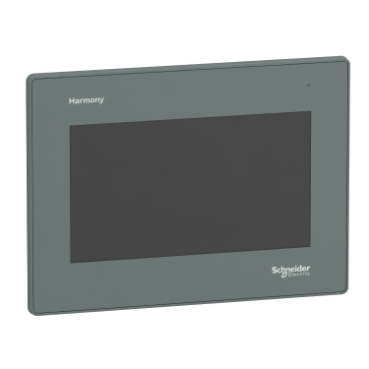

Schneider HMIGXU3500 | Human-Machine Interface – Overview
The Schneider Electric HMIGXU3500 is a 7-inch wide-screen Basic HMI from the Harmony GXU range. It is designed for intuitive and efficient operator interaction in industrial environments. The unit offers essential features like a serial communication port and an embedded real-time clock (RTC), making it suitable for a wide range of automation applications.
General Specifications
-
Product name: HMIGXU3500
-
Product type: Human-Machine Interface (HMI)
-
Range: Harmony GXU
-
Model: Basic model
-
Display size: 7 inches wide screen
-
Display type: TFT LCD with LED backlight
-
Resolution: 800 x 480 pixels (WVGA)
-
Touch screen: Resistive touch panel
Connectivity
-
Communication ports:
-
1 serial port (RS232/RS485)
-
USB host and device ports (depending on model version)
-
-
Ethernet: Not available on this basic model
-
Expansion: Compatible with selected accessories and memory
Functional Features
-
Embedded RTC (Real-Time Clock) for time-based operations
-
Basic user interface functions such as data input, alarms, and visualization
-
Supports Schneider Electric and third-party PLC protocols
-
User-friendly configuration via Schneider’s software (e.g., EcoStruxure Operator Terminal Expert)
Mechanical and Environmental Specifications
-
Mounting type: Panel mounting
-
Front panel protection: IP65 (when properly installed)
-
Operating temperature: 0°C to +50°C
-
Storage temperature: -20°C to +60°C
-
Vibration resistance: Industrial-grade robustness
-
Power supply: 24V DC typical
Applications
-
Factory automation
-
Machine control panels
-
Packaging and production line systems
-
HVAC and building management systems
-
Water treatment and pump control interfaces
Benefits
-
Compact and cost-effective solution for basic HMI needs
-
Simple installation and configuration
-
Clear 7-inch display for easy readability
-
Reliable performance in industrial environments
-
Real-time clock allows for accurate event tracking and scheduling
