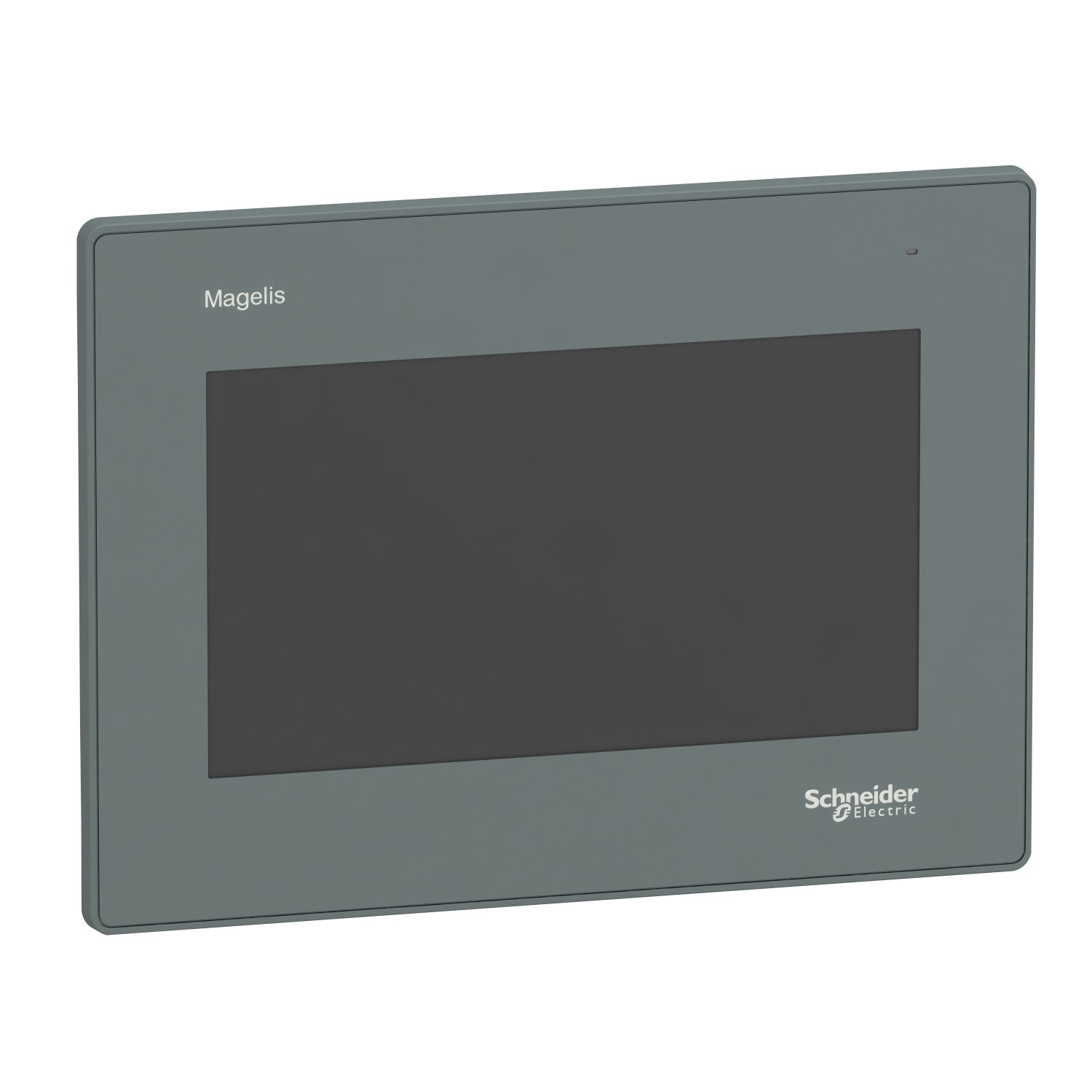

Schneider HMIGXU3512 | Human-Machine Interface (HMI) – Overview
The Schneider Electric HMIGXU3512 is a 7-inch wide screen Universal HMI from the Harmony GXU series. It is engineered to provide enhanced communication, user-friendly interface, and reliable control for industrial automation systems. This model combines versatility, modern design, and robust features for a wide range of applications.
Key Features
-
Display Size: 7-inch wide screen
-
Display Type: TFT LCD with LED backlight
-
Resolution: 800 x 480 pixels (WVGA)
-
Touch Panel: 4-wire resistive touchscreen
-
Model Type: Universal model
Communication Interfaces
-
Serial Ports: 2 ports (RS232/RS485, configurable)
-
Ethernet Port: 1 port (10/100 Mbps)
-
USB Ports:
-
1 USB Host port
-
1 USB Device port
-
-
Expansion: SD card support (depending on configuration)
Functional Capabilities
-
Embedded Real-Time Clock (RTC): For accurate timekeeping, scheduling, and event logging
-
Programming Software: EcoStruxure™ Operator Terminal Expert
-
Supported Protocols: Schneider and third-party PLC communication protocols
-
Functions:
-
Alarm management
-
Data logging
-
Recipe handling
-
Real-time display of process values
-
Mechanical & Environmental Specifications
-
Mounting: Panel mounting
-
Front Panel Protection: IP65 (dust-tight and water-resistant when properly mounted)
-
Power Supply: 24V DC
-
Operating Temperature: 0°C to +50°C
-
Storage Temperature: -20°C to +60°C
-
Durability: Designed for use in industrial environments
Applications
-
Machine control panels
-
Packaging and processing systems
-
Conveyor and material handling equipment
-
Building management systems
-
Water treatment and energy systems
-
General automation tasks in various industries
Advantages
-
Versatile connectivity with dual serial ports and Ethernet
-
Reliable operation with embedded RTC
-
High-clarity 7″ touch display
-
Easy configuration and integration
-
Compact, durable, and modern design
