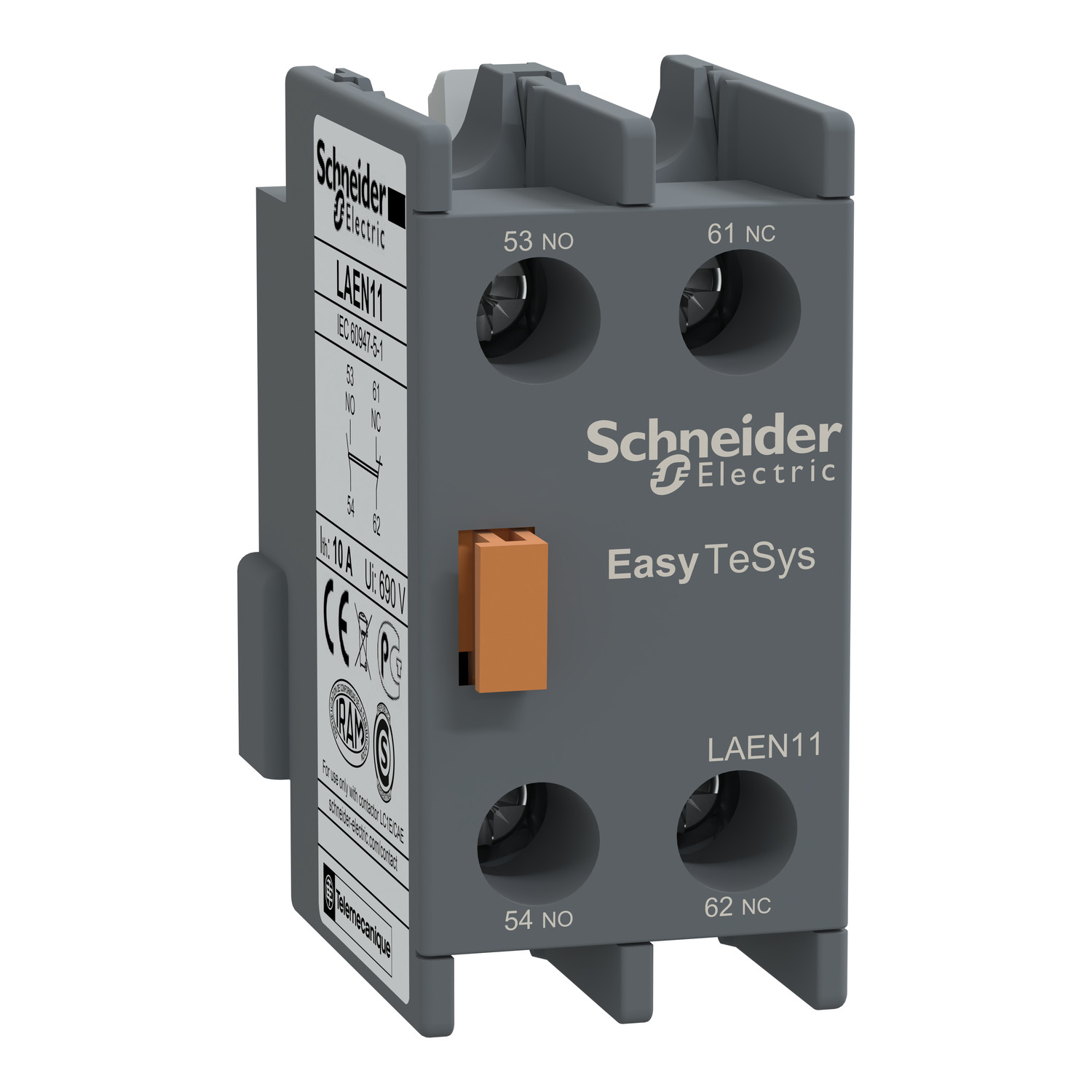

Schneider LAEN11 | Auxiliary contact block, EasyPact TVS, 1NO+1NC

Description

Schneider LAEN11 | Auxiliary contact block, EasyPact TVS, 1NO+1NC

1. Introduction

The Schneider LAEN11 is an auxiliary contact block from the EasyPact TVS series, designed to enhance the functionality of contactors by providing additional control signals. It features one normally open (1NO) and one normally closed (1NC) contact, making it suitable for diverse industrial control applications.

2. Key Features

• Configuration: 1 Normally Open (1NO) + 1 Normally Closed (1NC)

• Mounting Type: Front-mounting on EasyPact TVS contactors

• Compact & Durable Design

• Improves Control System Versatility

• Quick & Easy Installation

• Long Electrical & Mechanical Lifespan

3. Technical Specifications

• Product Series: EasyPact TVS

• Contact Type: 1NO + 1NC

• Rated Current: 10A (AC-15)

• Operating Voltage: ≤690V

• Mounting Position: Front-mounted

• Durability:

  • Electrical: Up to 1 million operations

  • Mechanical: Up to 10 million operations

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-5-1

4. Applications

The LAEN11 auxiliary contact block is widely used in industrial and commercial applications, including:

• Motor Control Circuits – Enhances monitoring and signaling

• Automation Systems – Used in PLC interfaces and safety circuits

• Power Distribution Panels – Provides additional switching functions

• Industrial Machinery – Extends control capabilities in automation

5. Benefits

• Expands Contactor Functionality – Adds auxiliary contacts for control circuits

• Reliable & Long-Lasting Performance – High electrical and mechanical endurance

• Flexible Mounting Design – Easily integrates with EasyPact TVS contactors

• Improves Safety & Monitoring – Enables better system feedback and control
