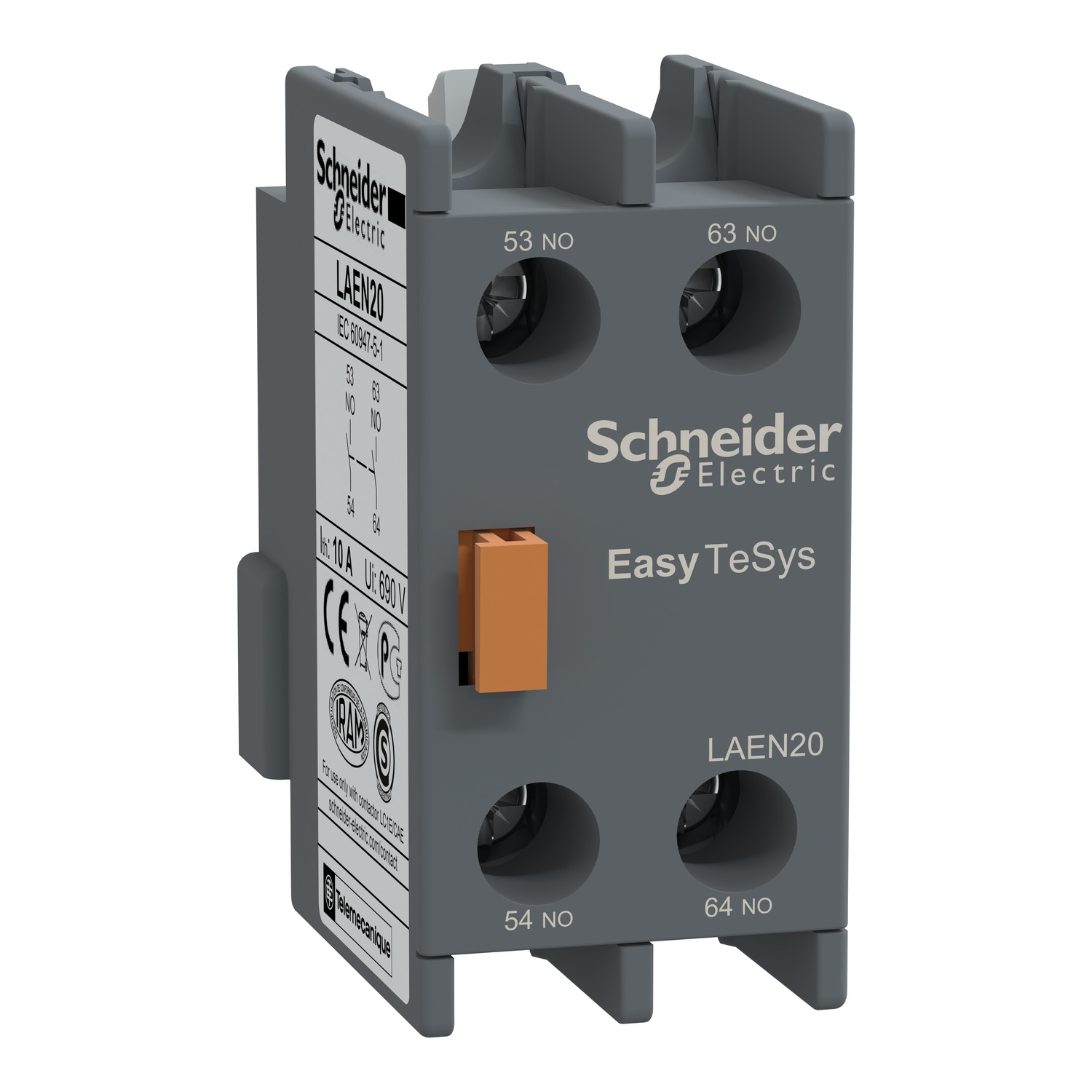

Schneider LAEN20 | Auxiliary contact block,Easy TeSys Control,2NO,for LC1E/CAE
Schneider LAEN20: Detailed Overview
Introduction
The Schneider LAEN20 is a robust auxiliary contact block designed for use with contactors in industrial control circuits. Renowned for its reliability and efficiency, the LAEN20 enhances the operational flexibility of control panels while ensuring superior performance in a variety of applications.
This article explores the key features, technical specifications, applications, and benefits of the Schneider LAEN20.
Technical Specifications
- Model Number: LAEN20
- Type: Auxiliary Contact Block
- Contacts Configuration: 2 Normally Open (2NO) contacts
- Rated Voltage: Up to 690V AC
- Rated Current: 10A (AC-15 utilization category)
- Mounting Type: Front-mounting on contactors
- Standards Compliance: IEC 60947-5-1 for industrial control equipment
Key Features
- Enhanced Flexibility:
- Adds auxiliary functionality to contactors, expanding their control capabilities.
- Compact and Lightweight:
- Designed to minimize additional space requirements within control panels.
- High Durability:
- Built to withstand frequent switching operations and harsh industrial environments.
- User-Friendly Installation:
- Quick front-mounting design allows seamless integration with compatible contactors.
- Reliable Performance:
- Consistent and precise operation, ensuring minimal downtime.
Applications
The Schneider LAEN20 is widely used in:
- Motor Control Circuits: For auxiliary signaling and interlocking.
- Industrial Automation: Enhancing functionality in programmable logic controllers (PLCs) and control systems.
- Power Distribution Panels: Supporting indication and signaling operations.
- Process Industries: Assisting in the monitoring and control of production systems.
Benefits
- Operational Efficiency: Supports smooth operation and accurate signaling in complex circuits.
- Versatility: Compatible with Schneider contactor ranges like the LC1 series.
- Safety Assurance: Ensures secure connections and reliable auxiliary operations.
- Long Lifespan: Engineered for durability, even in demanding environments.
