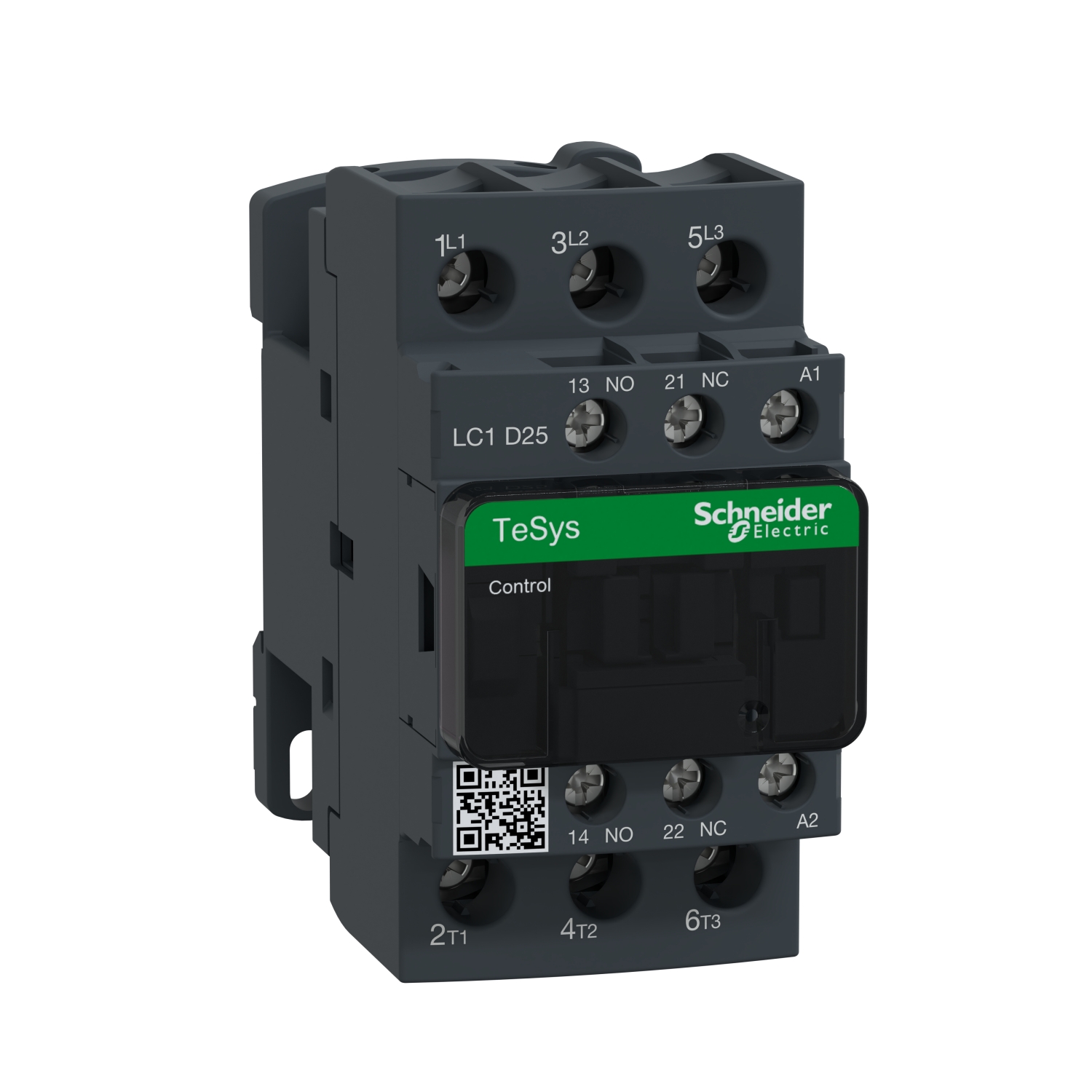

Schneider LC1D25F7 Contactor | TeSys D – 3P(3 NO) – AC-3 – <= 440 V 25 A – 110 V AC coil

Schneider LC1D25F7 | TeSys D Contactor – 3P (3 NO) – 25A – 110V AC Coil

1. General Description

The Schneider LC1D25F7 is a TeSys D series contactor, designed for efficient motor control and power switching applications. It features three normally open (3 NO) contacts and is rated for AC-3 applications up to 25A at ≤ 440V. The 110V AC coil ensures reliable operation in industrial automation, HVAC, and electrical distribution systems.

2. Technical Specifications

• Product Series: TeSys D

• Contactor Type: 3-pole (3 NO)

• Utilization Category: AC-3

• Rated Operational Voltage: ≤ 440V

• Rated Current (AC-3): 25A

• Coil Voltage: 110V AC (50/60 Hz)

• Electrical Durability: Up to 1 million operations

• Mechanical Durability: Up to 10 million operations

• Mounting Type: DIN rail or panel mounting

• Operating Temperature Range: -5°C to +60°C

• Certifications: CE, UL, IEC

3. Key Features

• Reliable and Efficient Motor Control: Designed for switching three-phase motors and power circuits.

• High Performance in AC-3 Applications: Handles up to 25A at ≤ 440V.

• 110V AC Coil: Ensures stable operation in industrial and commercial control systems.

• Compact and Modular Design: Allows for easy integration into control panels.

• Long Lifespan: Up to 10 million mechanical operations for extended durability.

• Versatile Installation: Supports DIN rail and panel mounting for flexibility.

4. Applications

• Three-phase motor control

• Industrial automation and power distribution

• Pumps, compressors, and conveyor systems

• HVAC systems

• General-purpose power switching

5. Compliance and Standards

• IEC 60947-4-1 (Low-voltage switchgear and controlgear)

• CE Certified

• UL Listed

• RoHS Compliant

6. Conclusion

The Schneider LC1D25F7 TeSys D Contactor is a high-performance and durable solution for motor control and power switching applications. With a 25A current rating, 110V AC coil, and robust design, it is an excellent choice for industrial automation, HVAC systems, and electrical control applications.
