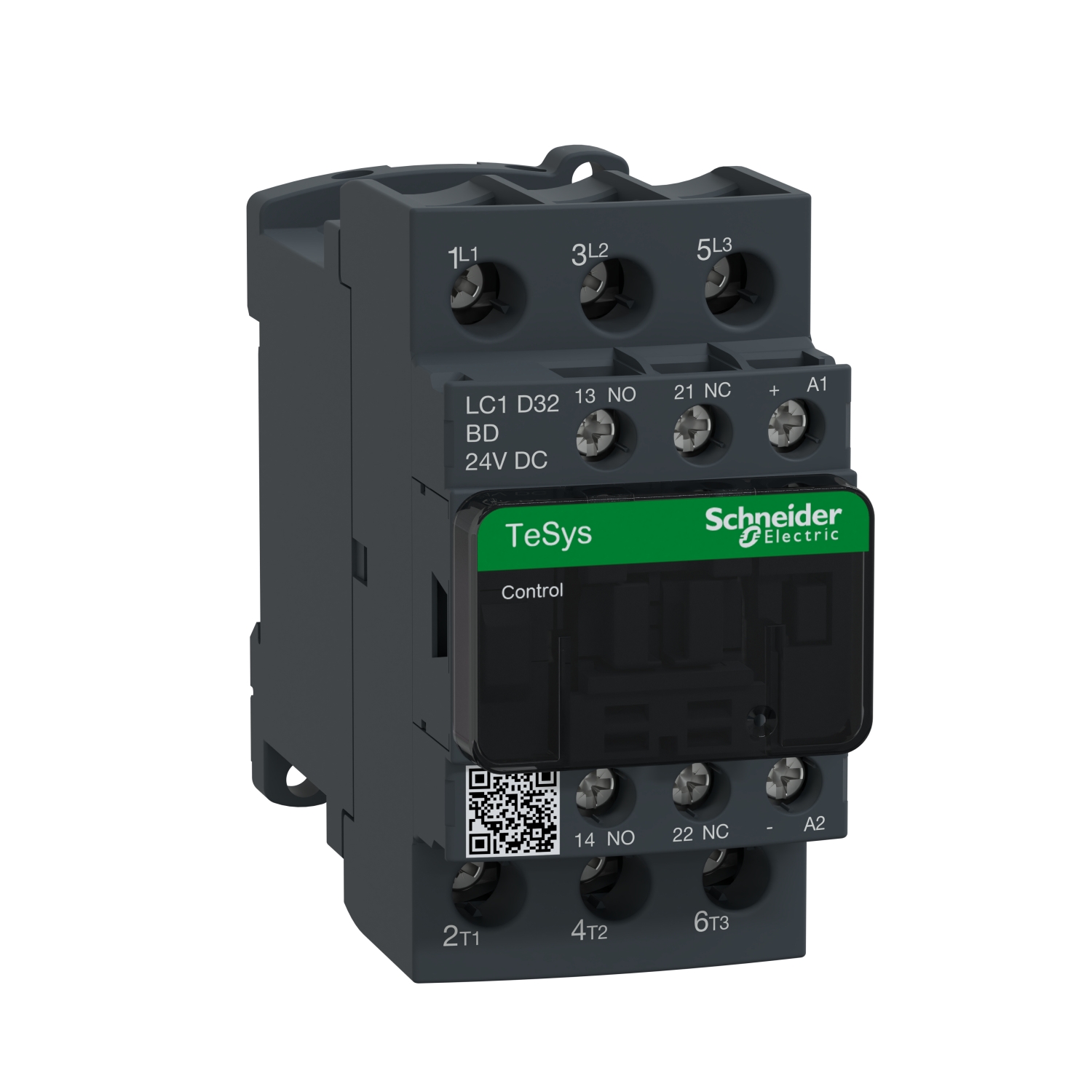

Schneider LC1D32BD | TeSys D Contactor – 3P (3 NO) – 32A – 24V DC Coil

1. General Description

The Schneider LC1D32BD is a TeSys D series contactor, designed for motor control and power switching applications. It features three normally open (3 NO) contacts, making it ideal for AC-3 applications up to 32A at ≤ 440V. This model operates with a 24V DC coil, ensuring reliable and efficient performance in industrial automation and control systems.

2. Technical Specifications

• Product Series: TeSys D

• Contactor Type: 3-pole (3 NO)

• Utilization Category: AC-3

• Rated Operational Voltage: ≤ 440V

• Rated Current (AC-3): 32A

• Coil Voltage: 24V DC

• Electrical Durability: Up to 1 million operations

• Mechanical Durability: Up to 10 million operations

• Mounting Type: DIN rail or panel mounting

• Operating Temperature Range: -5°C to +60°C

• Certifications: CE, UL, IEC

3. Key Features

• Reliable Motor Control: Ideal for switching and protecting three-phase motors.

• High Switching Capacity: Handles 32A in AC-3 applications efficiently.

• 24V DC Coil: Provides low-power consumption and stable operation in DC-powered control systems.

• Compact and Modular Design: Allows for easy installation and integration into electrical panels.

• Long Operational Life: Up to 10 million mechanical operations for durability.

• Flexible Installation: Supports DIN rail and panel mounting for adaptability.

4. Applications

• Three-phase motor control

• Industrial automation and power distribution

• Pumps, compressors, and conveyor systems

• HVAC systems

• General-purpose power switching

5. Compliance and Standards

• IEC 60947-4-1 (Low-voltage switchgear and controlgear)

• CE Certified

• UL Listed

• RoHS Compliant

6. Conclusion

The Schneider LC1D32BD TeSys D Contactor is a high-performance and durable solution for motor control and power switching applications. With a 32A current rating, 24V DC coil, and robust design, it is an excellent choice for industrial automation, HVAC systems, and electrical control applications.
