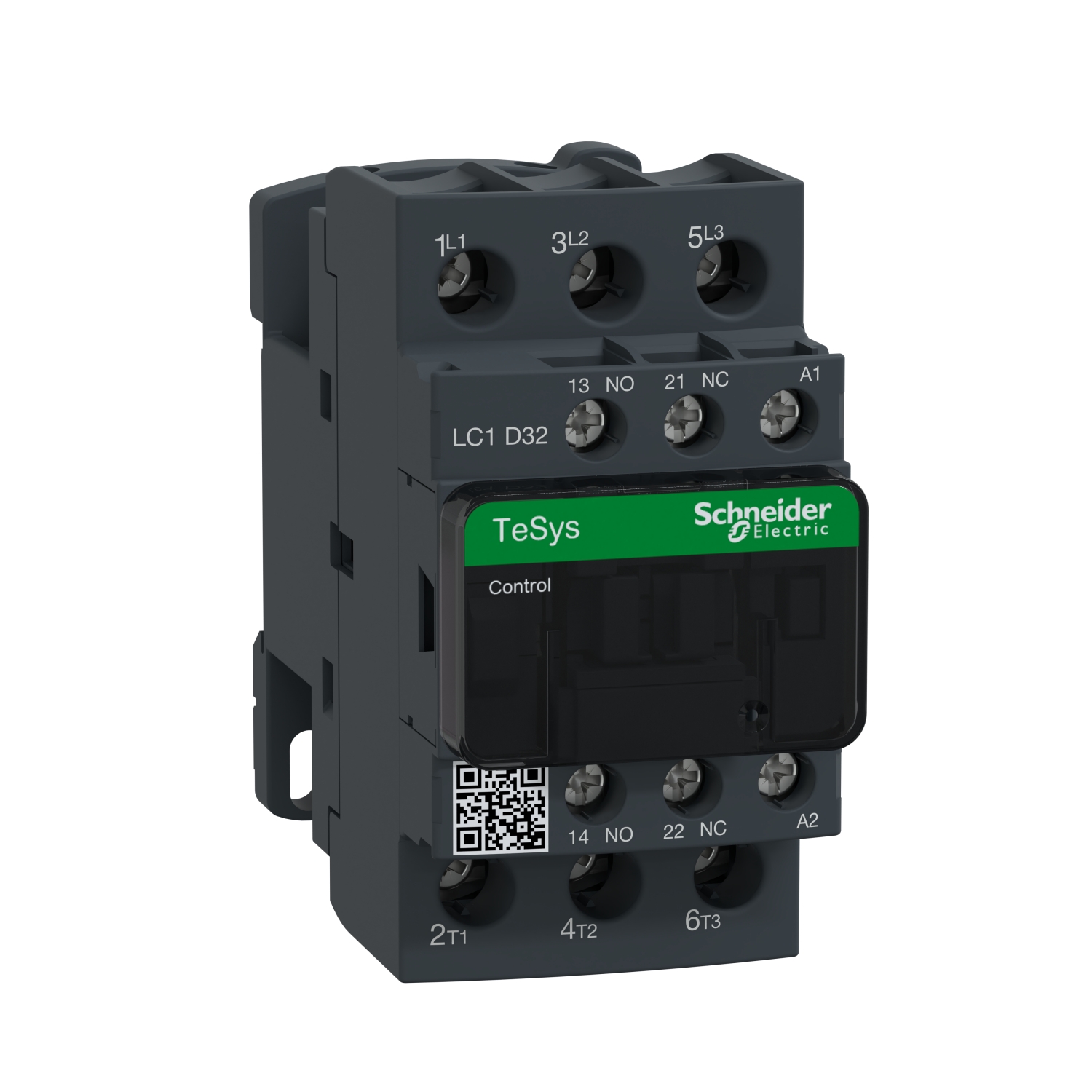

Schneider LC1D32Q7 Contactor | TeSys D – 3P(3 NO) – AC-3 – <= 440 V 32 A – 380 V AC 50/60 Hz coil
Schneider LC1D32Q7 Contactor: The Reliable Solution for Your Electrical Systems
1. General Description
The Schneider LC1D32Q7 is a TeSys D series contactor designed for motor control and power switching applications. It features three normally open (3 NO) contacts, making it ideal for AC-3 applications up to 32A at ≤ 440V. This contactor operates with a 380V AC 50/60 Hz coil, ensuring reliable performance in industrial automation and electrical control systems.
2. Technical Specifications
-
Product Series: TeSys D
-
Contactor Type: 3-pole (3 NO)
-
Utilization Category: AC-3
-
Rated Operational Voltage: ≤ 440V
-
Rated Current (AC-3): 32A
-
Coil Voltage: 380V AC 50/60 Hz
-
Electrical Durability: Up to 1 million operations
-
Mechanical Durability: Up to 10 million operations
-
Mounting Type: DIN rail or panel mounting
-
Operating Temperature Range: -5°C to +60°C
-
Certifications: CE, UL, IEC
3. Key Features
-
Efficient Motor Control: Designed for switching and protecting three-phase motors.
-
High Switching Capacity: Handles 32A in AC-3 applications, ensuring reliable operation.
-
380V AC Coil: Provides stable and efficient activation, reducing energy consumption.
-
Compact and Modular Design: Enables easy installation and integration in control panels.
-
Durable and Long-Lasting: Up to 10 million mechanical operations for extended service life.
-
Versatile Installation: Supports DIN rail and panel mounting, offering flexibility.
4. Applications
-
Three-phase motor control
-
Industrial automation and manufacturing
-
Pumps, compressors, and conveyor systems
-
Heating, Ventilation, and Air Conditioning (HVAC) systems
-
General-purpose power switching
5. Compliance and Standards
-
IEC 60947-4-1 (Low-voltage switchgear and controlgear)
-
CE Certified
-
UL Listed
-
RoHS Compliant
6. Conclusion
The Schneider LC1D32Q7 TeSys D Contactor is a robust and efficient solution for motor control and power switching applications. With a 32A current rating, 380V AC coil, and high durability, it is ideal for industrial automation, HVAC systems, and general electrical control systems.
