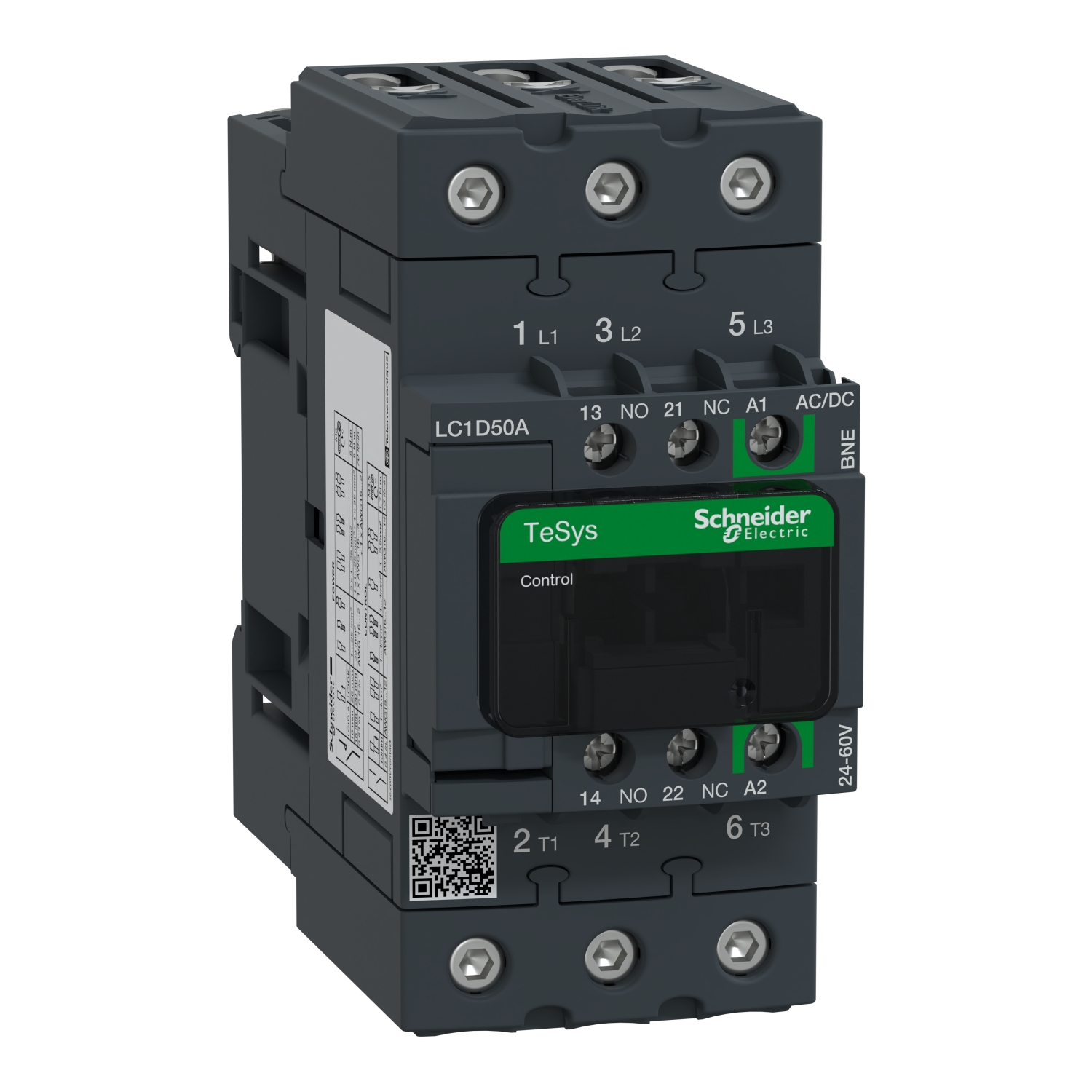

Schneider LC1D50ABNE Contactor | TeSys D contactor 3P 50A AC-3 up to 440V coil 24-60V AC/DC EverLink

1. General Description

The Schneider LC1D50ABNE is a high-performance TeSys D contactor designed for industrial motor control and power switching applications. It features three normally open (3 NO) contacts and supports an AC-3 rating of up to 50A at ≤ 440V. Equipped with a 24-60V AC/DC EverLink coil, this contactor ensures reliable electrical connections and reduced maintenance requirements.

2. Technical Specifications

• Product Series: TeSys D

• Contactor Type: 3-pole (3 NO)

• Utilization Category: AC-3

• Rated Operational Voltage: ≤ 440V

• Rated Current (AC-3): 50A

• Coil Voltage: 24-60V AC/DC EverLink technology

• Electrical Durability: Up to 1.6 million operations

• Mechanical Durability: Up to 30 million operations

• Mounting Type: DIN rail or panel mounting

• Operating Temperature Range: -5°C to +60°C

• Certifications: CE, UL, IEC

3. Key Features

• EverLink Technology: Provides secure and reliable connections, reducing the risk of loose wiring over time.

• Flexible Coil Operation: Works with 24-60V AC/DC, allowing greater versatility in various power control systems.

• High Load Capacity: Handles 50A in AC-3 applications, making it suitable for motor control and power switching.

• Compact and Modular Design: Optimized for easy integration into industrial control panels.

• Long Operational Life: Designed for high durability, reducing maintenance and replacement costs.

• Flexible Mounting Options: Compatible with DIN rail and panel mounting for easy installation.

4. Applications

• Three-phase motor control (up to 50A)

• Industrial automation and machine control

• HVAC systems, pumps, and compressors

• Switching of resistive and inductive loads

• Conveyor systems and industrial machinery

5. Compliance and Standards

• IEC 60947-4-1 (Low-voltage switchgear and controlgear)

• CE Certified

• UL Listed

• RoHS Compliant

6. Conclusion

The Schneider LC1D50ABNE TeSys D Contactor is a versatile and durable solution for industrial motor control and power switching applications. Featuring EverLink technology, a wide-range 24-60V AC/DC coil, and a 50A capacity, this contactor ensures efficient operation, secure connections, and long-lasting performance, making it a trusted choice for industrial and commercial power systems.
