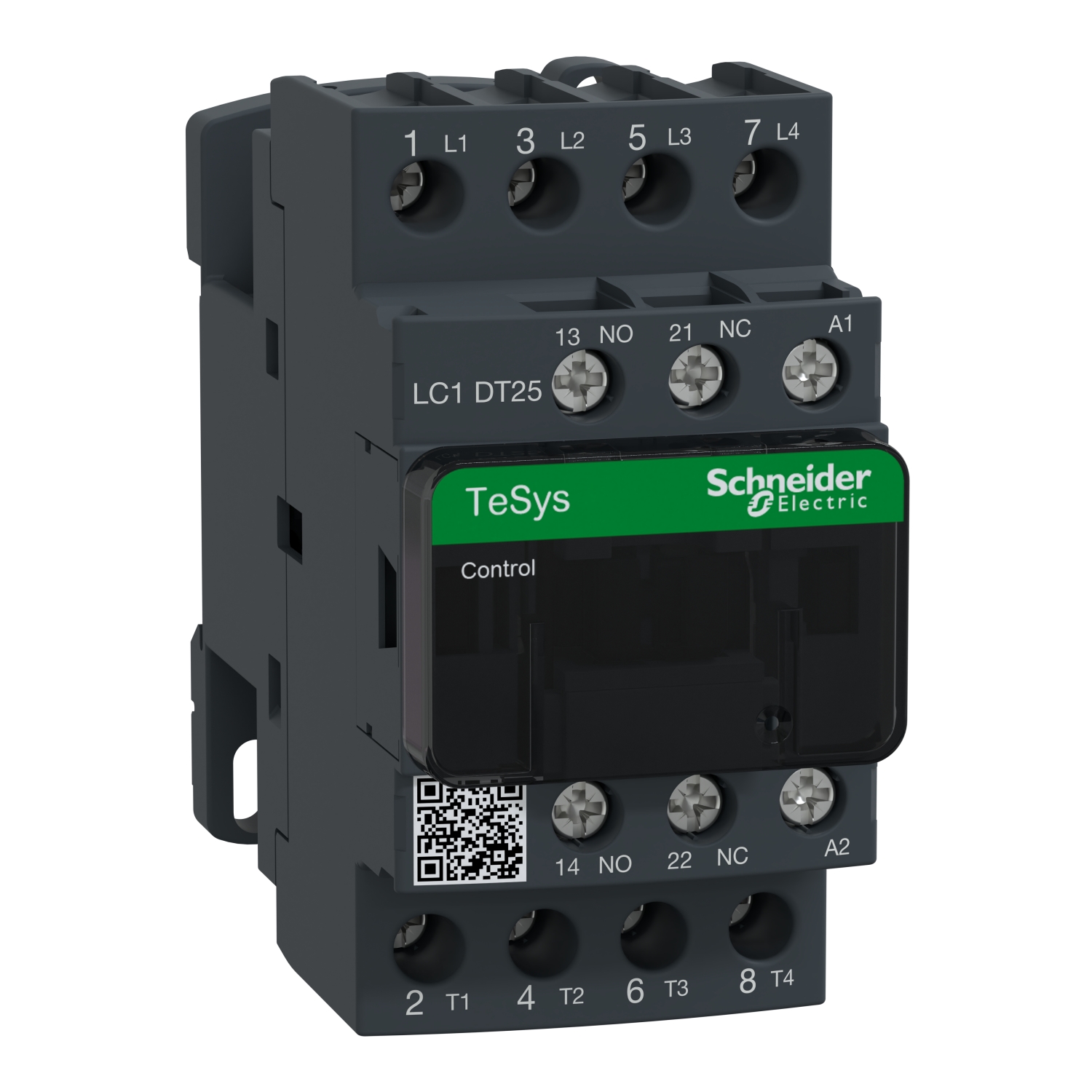

Schneider LC1DT25M7 | TeSys D Contactor – 4P (4 NO) – AC-1 – ≤ 440V 25A – 220V AC 50/60Hz Coil

1. General Description

The Schneider LC1DT25M7 is a TeSys D series contactor designed for general-purpose electrical switching applications. It is a four-pole (4P) contactor, featuring four normally open (4 NO) contacts and is optimized for AC-1 applications.

2. Technical Specifications

• Series: TeSys D

• Product Type: Contactor

• Number of Poles: 4P (Four Normally Open – 4 NO)

• Rated Operational Voltage: ≤ 440V AC

• Rated Current (AC-1): 25A

• Coil Voltage: 220V AC, 50/60 Hz

• Electrical Durability: High endurance for industrial applications

• Mounting Type: DIN rail or panel mounting

3. Key Features

• Reliable Performance: Designed for high electrical endurance and long operational life.

• Compact Design: Space-saving construction for easy integration into control panels.

• Versatile Application: Suitable for AC-1 applications, including heating, lighting, and non-inductive loads.

• Easy Installation: Quick connection terminals and simple mounting options.

• Energy-Efficient Coil: Reduces power consumption while maintaining effective operation.

4. Applications

The LC1DT25M7 contactor is widely used in various electrical systems, including:

• Heating and ventilation systems

• Lighting circuits

• Industrial automation and motor control

• Power distribution panels

5. Compliance and Standards

• IEC 60947-4-1 (Low-voltage switchgear and controlgear – Contactors and motor starters)

• RoHS Compliance (Environmentally friendly and free from hazardous substances)

• CE Certified (Meets European safety and performance standards)

6. Conclusion

The Schneider LC1DT25M7 is a high-performance 4P contactor designed for AC-1 applications up to 25A. Its reliable construction, ease of installation, and compliance with international standards make it an excellent choice for industrial and commercial electrical control systems.
