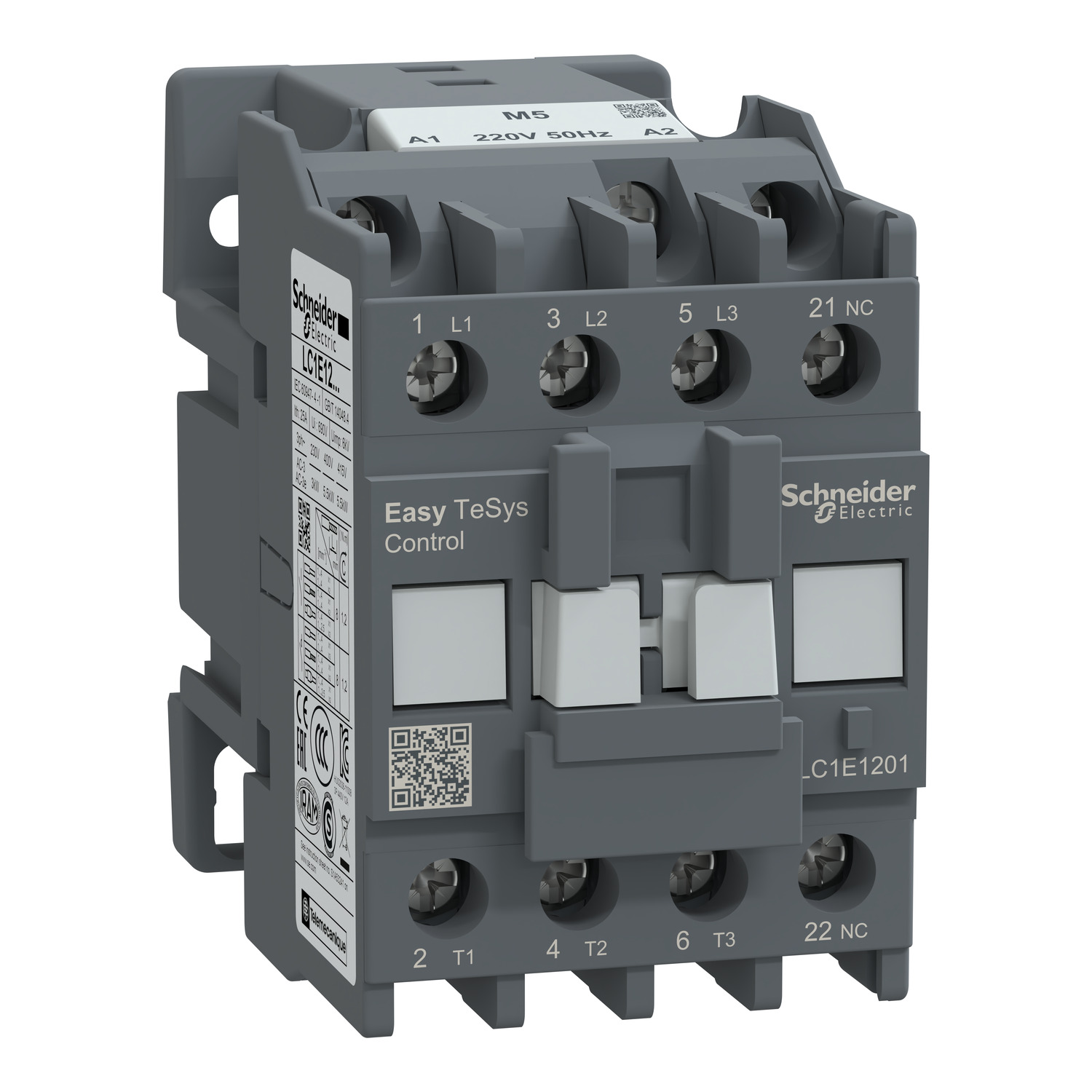

Schneider LC1E1201E7 | Easy TeSys Control Contactor, 3P (3NO), 12A, 48V AC Coil, 1NC Auxiliary Contact

1. Introduction

The Schneider LC1E1201E7 is a 3-pole (3NO) contactor from the Easy TeSys Control series, designed for motor control and power switching in industrial and commercial applications. With a rated operational current of 12A (AC-3) at ≤440V, this contactor features a 48V AC coil (50/60Hz) and includes one normally closed (1NC) auxiliary contact, making it suitable for a variety of control applications.

2. Key Features

• Rated Current: 12A (AC-3)
• Voltage Compatibility: ≤440V
• Number of Poles: 3P (3 Normally Open – 3NO)
• Coil Voltage: 48V AC, 50/60Hz
• Built-in Auxiliary Contact: 1NC (Normally Closed)
• Compact & Durable Design: Ideal for industrial environments
• High Electrical Durability: Designed for long operational life

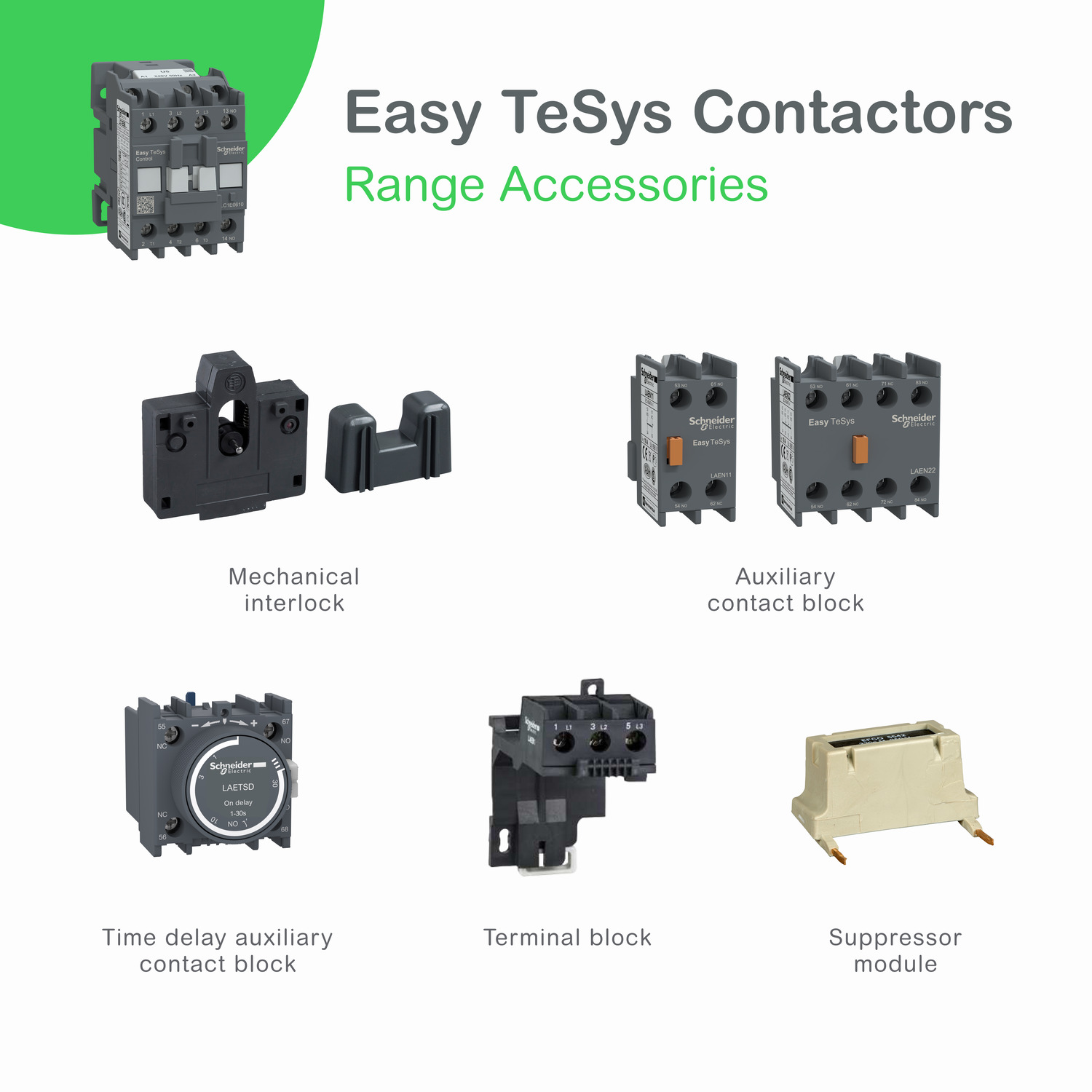

• Easy Installation: Compatible with Easy TeSys accessories and mounting systems

3. Technical Specifications

• Product Type: Power Contactor
• Series: Easy TeSys Control (LC1E)
• Rated Operational Current (Ie): 12A (AC-3)
• Rated Operational Voltage (Ue): Up to 440V AC
• Coil Voltage: 48V AC, 50/60Hz
• Number of Contacts: 3NO (Main), 1NC (Auxiliary)
• Mounting Type: Panel mounting
• Compliance: IEC 60947-4-1

4. Applications

• Motor control and protection (small motors, pumps, fans)
• Industrial automation systems
• HVAC and lighting control
• Power distribution panels
• General-purpose electrical switching

5. Benefits

• Reliable Performance: Ensures stable and efficient operation
• Space-Saving Design: Compact size for easy integration into control panels
• Built-in Auxiliary Contact: Provides additional control functionality
• Energy-Efficient: Optimized for low power consumption
• Easy Installation & Maintenance: Modular design for quick setup and servicing

6. Conclusion

The Schneider LC1E1201E7 is a versatile and reliable contactor for motor and power switching applications. With its 12A (AC-3) rating, 3P (3NO) main contacts, 48V AC coil, and 1NC auxiliary contact, it is ideal for small-scale motor control, automation, and industrial applications, ensuring safe, efficient, and long-lasting operation.
