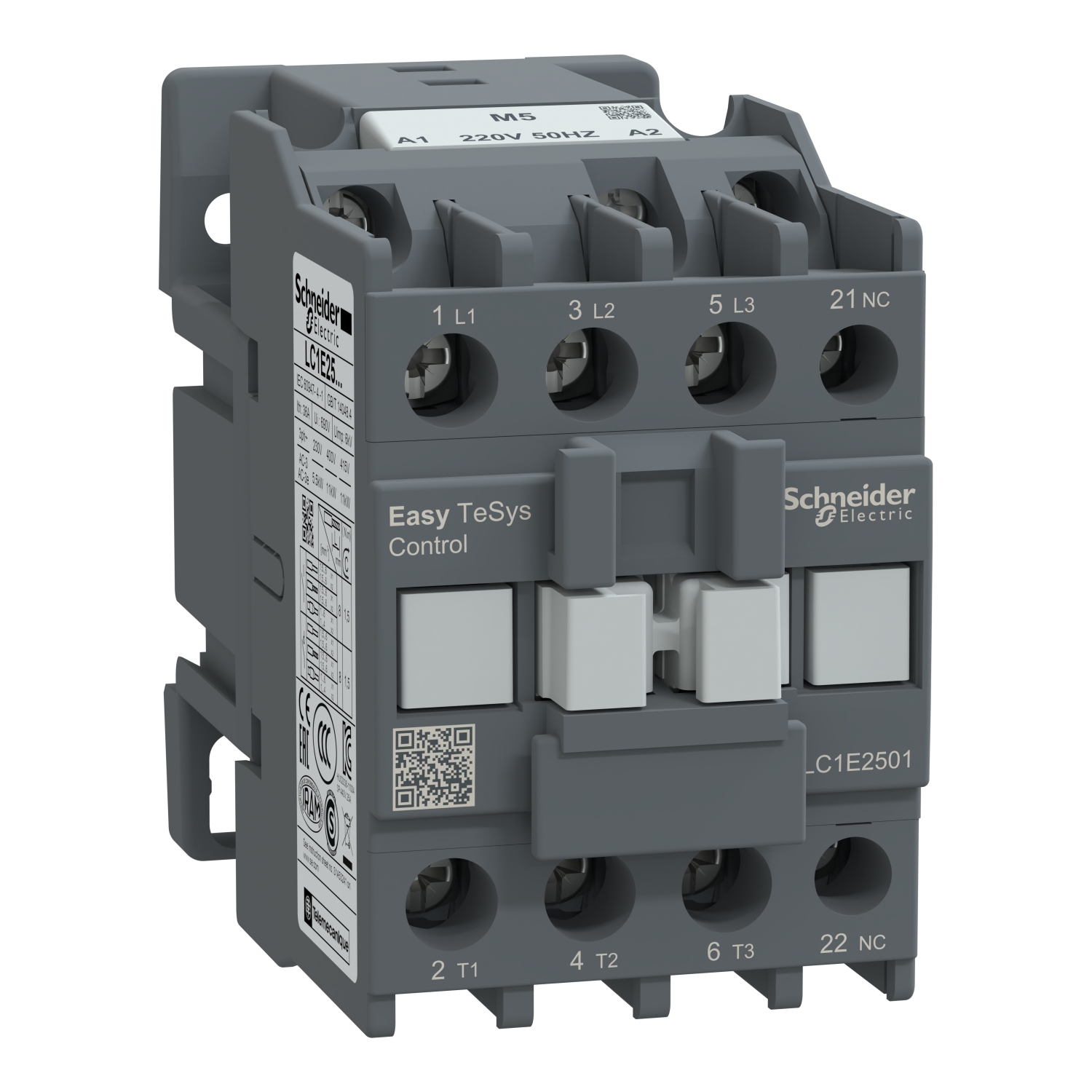

Schneider LC1E2501M5 | EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 25A – 220 V AC coil

Schneider LC1E2501M5 | EasyPact TVS Contactor, 3P (3NO), AC-3, ≤440V, 25A, 220V AC Coil, 50Hz, 1NC Auxiliary Contact

1. Introduction

The Schneider LC1E2501M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for motor control and power switching in industrial applications. It operates in AC-3 applications up to 440V with a 25A current rating and features a 220V AC coil (50Hz). Additionally, it includes a 1NC (Normally Closed) auxiliary contact, enhancing its control and monitoring capabilities.

2. Key Features

• Rated Current: 25A (AC-3)

• Voltage Rating: ≤440V

• Number of Poles: 3P (3 Normally Open – 3NO)

• Auxiliary Contact: 1NC (Normally Closed)

• Coil Voltage: 220V AC, 50Hz

• Compact and Sturdy Design

• High Electrical & Mechanical Durability

• Compatible with Overload Relays for motor protection

• Quick and Easy Installation

3. Technical Specifications

• Product Series: EasyPact TVS

• Utilization Category: AC-3 (Motor Control Applications)

• Rated Current (Ie): 25A

• Operating Voltage: ≤440V

• Coil Voltage: 220V AC, 50Hz

• Number of Poles: 3P (3NO)

• Auxiliary Contact Configuration: 1NC

• Mechanical Durability: Up to 10 million operations

• Electrical Durability: Up to 1 million operations (AC-3)

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E2501M5 contactor is widely used in industrial and commercial applications, such as:

• Motor Control – Reliable switching for motors

• HVAC Systems – Controlling air conditioning, fans, and compressors

• Pumping Systems – Managing water and fluid pumps

• Lighting Control – Handling high-power lighting circuits

• Industrial Automation – Integrating into control panels for automated processes

5. Benefits

• Reliable and Efficient Performance – Ensures long-term operation

• Compact & Space-Saving Design – Ideal for control panel installations

• Versatile Application Range – Suitable for various industrial needs

• Quick Installation & Maintenance – Reduces downtime

• Built-in 1NC Auxiliary Contact – Enhances control and monitoring capabilities

• Seamless Compatibility – Works with Schneider overload relays for motor protection
