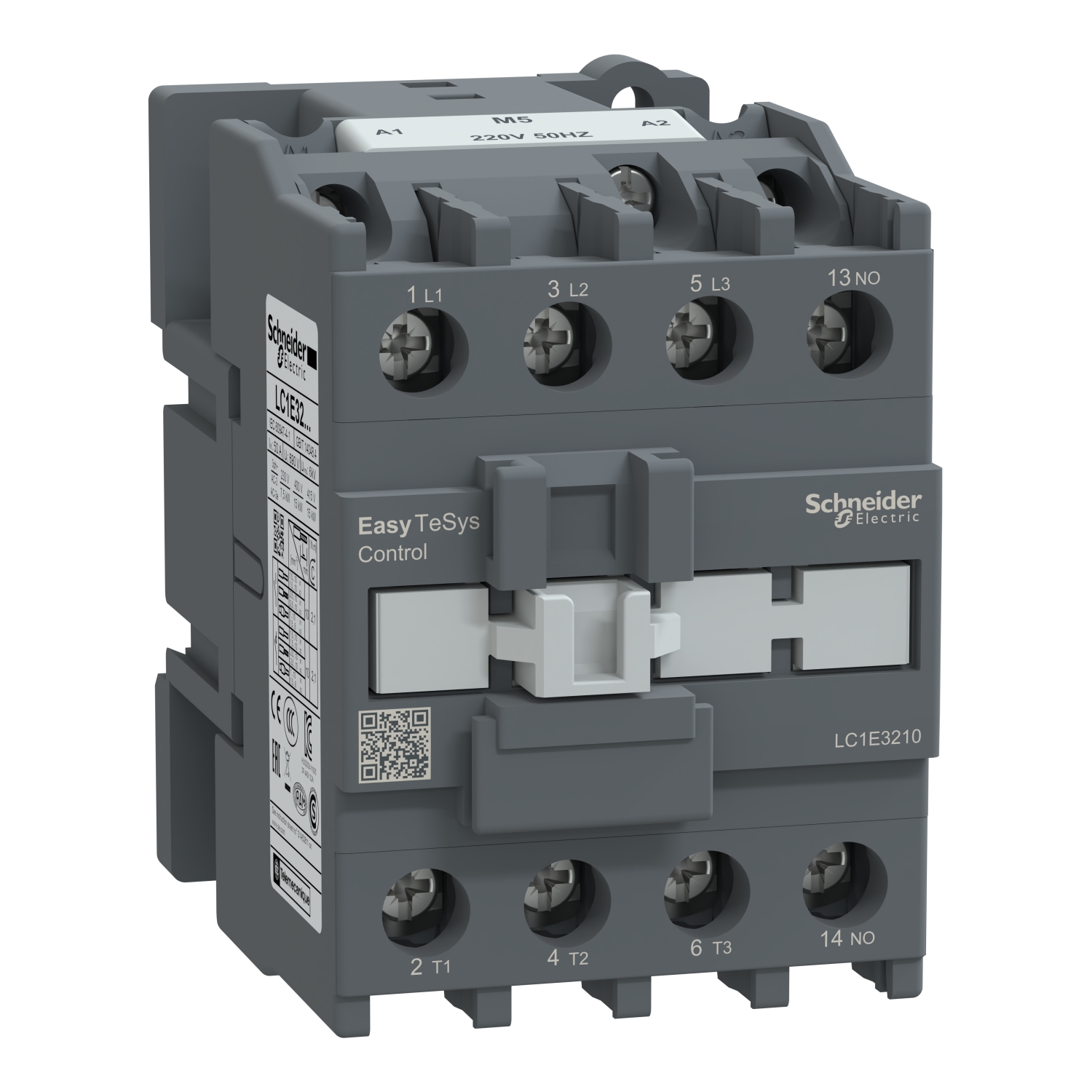

Schneider LC1E3210M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,32A,220V AC coil,50Hz,1NO auxiliary contact

Schneider LC1E3210M5 | Contactor, EasyPact TVS, 3P (3NO), AC-3, ≤440V, 32A, 220V AC Coil, 50Hz, 1NO Auxiliary Contact

1. Introduction

The Schneider LC1E3210M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, specifically designed for motor control and power switching in industrial applications. It supports AC-3 applications up to 440V with a 32A current rating and operates using a 220V AC coil (50Hz). Additionally, it includes a 1NO (Normally Open) auxiliary contact for enhanced control functions.

2. Key Features

• Rated Current: 32A (AC-3)

• Voltage Rating: ≤440V

• Number of Poles: 3P (3 Normally Open – 3NO)

• Auxiliary Contact: 1NO (Normally Open)

• Coil Voltage: 220V AC, 50Hz

• Compact & Sturdy Design for industrial applications

• High Electrical & Mechanical Durability

• Compatible with Overload Relays for Motor Protection

• Easy Installation & Maintenance

3. Technical Specifications

• Product Series: EasyPact TVS

• Utilization Category: AC-3 (Motor control applications)

• Rated Current (Ie): 32A

• Operating Voltage: ≤440V

• Coil Voltage: 220V AC, 50Hz

• Number of Poles: 3P (3NO)

• Auxiliary Contact Configuration: 1NO

• Mechanical Durability: Up to 10 million operations

• Electrical Durability: Up to 1 million operations (AC-3)

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E3210M5 contactor is ideal for various industrial and commercial applications, including:

• Motor Control – Effective switching and protection of motors

• HVAC Systems – Managing air conditioning, fans, and compressors

• Pumping Systems – Controlling water and fluid pumps

• Lighting Control – Handling high-power lighting circuits

• Industrial Automation – Integration into control panels for automation systems

5. Benefits

• Reliable and Efficient Performance – Ensures long-term durability

• Compact & Space-Saving Design – Ideal for control panel installations

• Versatile Usage – Suitable for multiple industrial applications

• Quick Installation & Wiring – Simplifies setup and maintenance

• Built-in 1NO Auxiliary Contact – Enhances control and monitoring capabilities

• Seamless Compatibility – Works with Schneider overload relays for enhanced motor protection
