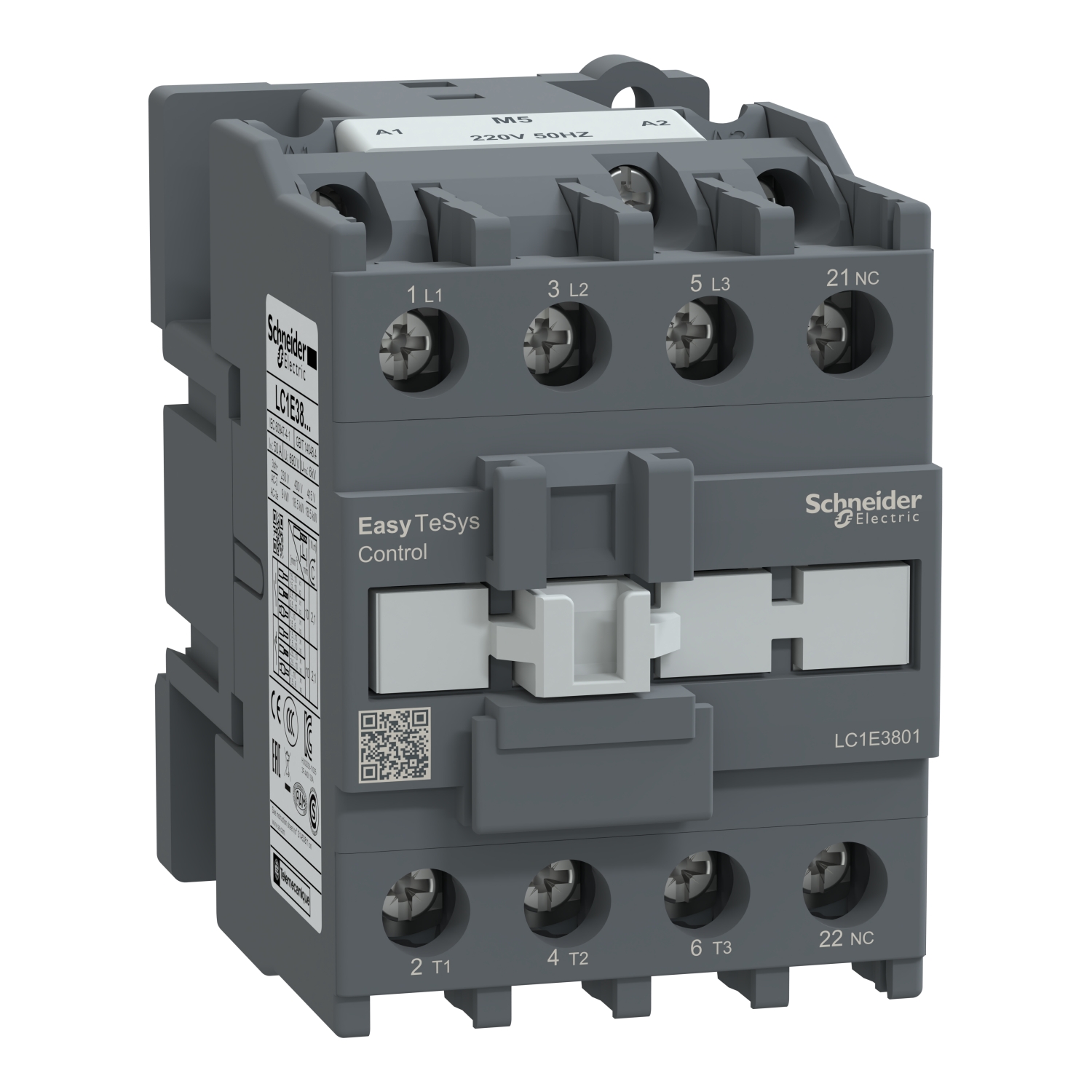

Schneider LC1E3801M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,38A,220V AC coil,50Hz,1NC auxiliary contact

Schneider LC1E3801M5 | Contactor, EasyPact TVS, 3P (3NO), AC-3, ≤440V, 38A, 220V AC Coil, 50Hz, 1NC Auxiliary Contact

1. Introduction

The Schneider LC1E3801M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for motor control and power switching in industrial applications. It operates in AC-3 applications up to 440V with a 38A current rating and features a 220V AC coil (50Hz). This model also includes a 1NC (Normally Closed) auxiliary contact for enhanced control and monitoring.

2. Key Features

• Rated Current: 38A (AC-3)

• Voltage Rating: ≤440V

• Number of Poles: 3P (3 Normally Open – 3NO)

• Auxiliary Contact: 1NC (Normally Closed)

• Coil Voltage: 220V AC, 50Hz

• Compact and Durable Design for industrial applications

• High Electrical & Mechanical Durability

• Easy Integration with Overload Relays

• Quick Installation & Maintenance

3. Technical Specifications

• Product Series: EasyPact TVS

• Utilization Category: AC-3 (Motor control applications)

• Rated Current (Ie): 38A

• Operating Voltage: ≤440V

• Coil Voltage: 220V AC, 50Hz

• Number of Poles: 3P (3NO)

• Auxiliary Contact Configuration: 1NC

• Mechanical Durability: Up to 10 million operations

• Electrical Durability: Up to 1 million operations (AC-3)

• Operating Temperature: -5°C to +55°C

• Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E3801M5 contactor is widely used in industrial and commercial applications, including:

• Motor Control – Effective switching and protection of motors

• HVAC Systems – Managing air conditioning, fans, and compressors

• Pumping Systems – Ensuring smooth operation of water and fluid pumps

• Lighting Control – Handling high-power lighting circuits

• Industrial Automation – Integration into control panels for automation systems

5. Benefits

• Reliable and Efficient Performance – Ensures long operational life

• Compact & Space-Saving Design – Ideal for electrical control panels

• Versatile Application Range – Suitable for various industrial needs

• Easy Installation & Wiring – Simplifies setup and maintenance

• Built-in 1NC Auxiliary Contact – Enhances monitoring and control functions

• Seamless Compatibility – Works with Schneider overload relays for added motor protection
