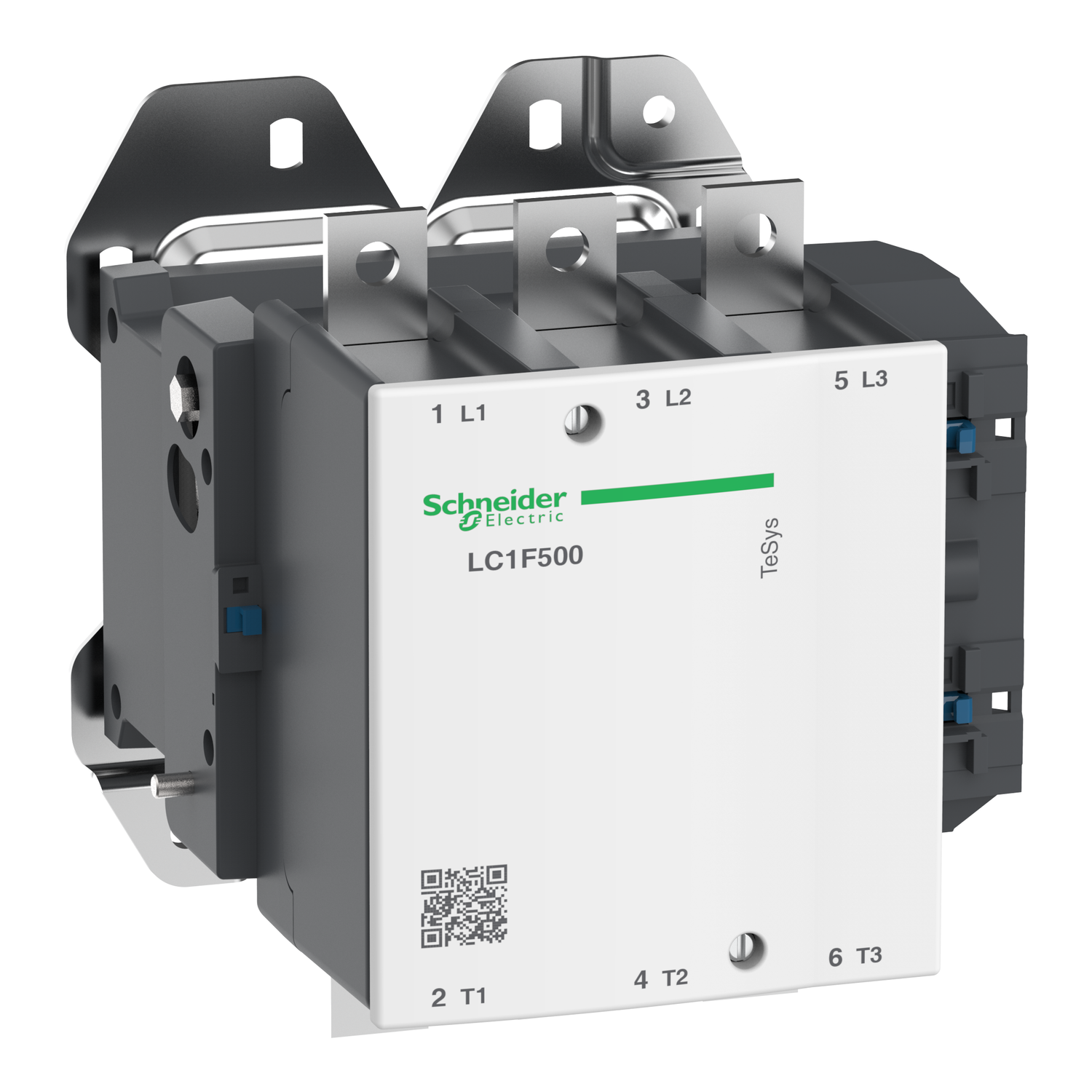

Schneider LC1F500M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 500 A – coil 220 V AC
Schneider LC1F500M7 | TeSys F Contactor – 3P (3 NO) – AC-3 ≤ 440 V 500 A – Coil 220 V AC
General Description:
The Schneider LC1F500M7 is a high-performance 3-pole contactor from the TeSys F range, built to manage high-power loads in industrial environments. With a rated operational current of 500 A at 440 V AC (AC-3 duty), it is suited for motor control and power switching in heavy-duty applications.
Main Features:
-
Contactor Type: 3-pole (3 Normally Open contacts)
-
Utilization Category: AC-3 (for squirrel cage motors)
-
Rated Operational Voltage: ≤ 440 V AC
-
Rated Current (AC-3 at 440 V): 500 A
-
Control Voltage (Coil): 220 V AC
-
Mounting: Panel mounting
-
Auxiliary Contacts: Optional (can be added based on application needs)
Technical Specifications:
-
Product Line: TeSys F
-
Conformity to Standards: IEC 60947-4-1
-
Rated Insulation Voltage (Ui): 1000 V
-
Rated Impulse Withstand Voltage (Uimp): 8 kV
-
Electrical Durability: Up to 250,000 cycles (depending on load)
-
Mechanical Durability: Up to 5 million operations
-
Ambient Operating Temperature: -5°C to +60°C
-
Protection Rating: IP20 (without enclosure; depends on installation)
Typical Applications:
-
High-power motors and machinery
-
Industrial HVAC systems
-
Water pumps and heavy-duty compressors
-
Conveyor systems
-
Electrical distribution and automation panels
Key Benefits:
-
Efficient and safe switching of high-current circuits
-
Durable build for extended service life
-
Easily integrable with Schneider’s TeSys accessories
-
Suitable for harsh industrial conditions
-
Reliable coil operation at standard 220 V AC
