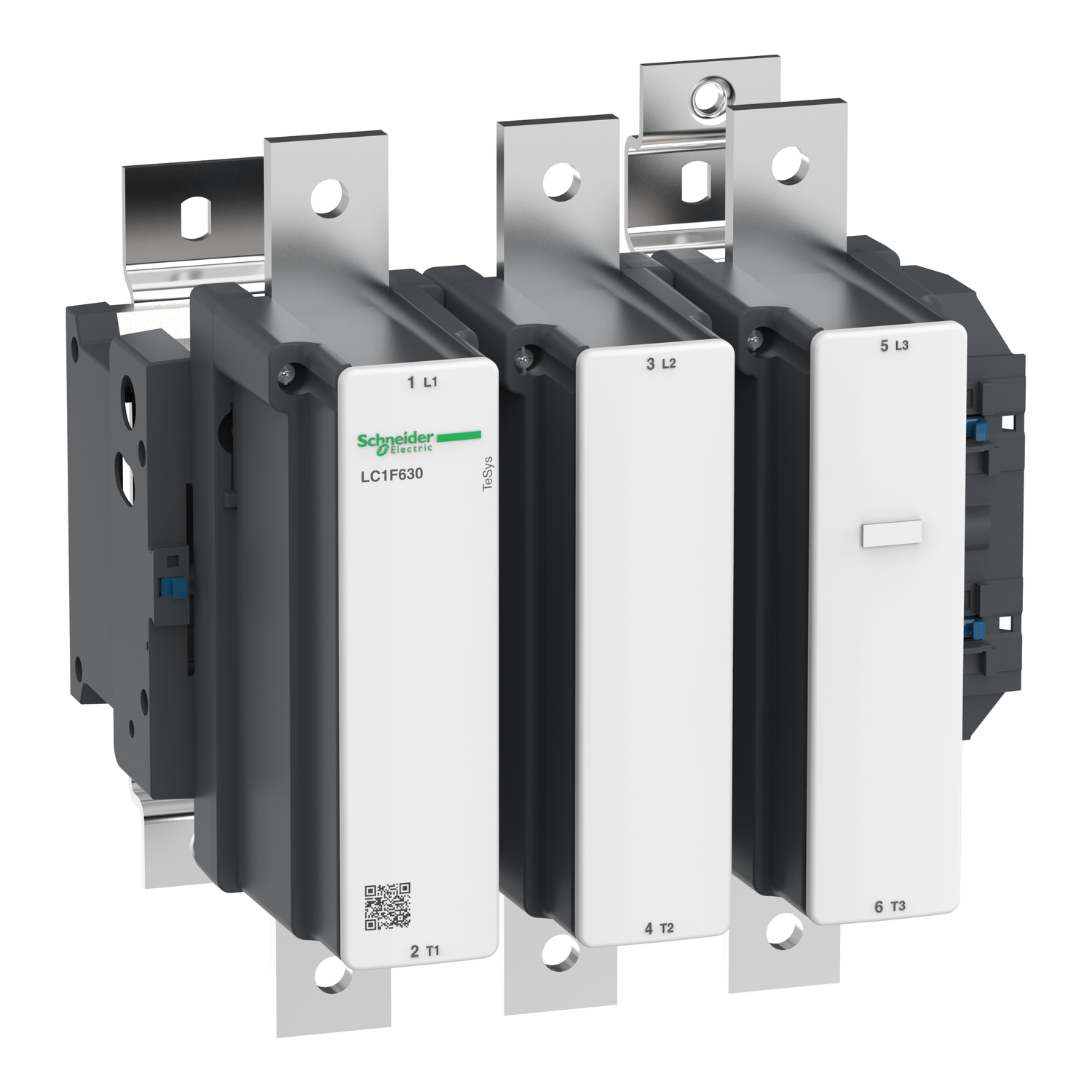

Schneider LC1F630M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 630 A – coil 220 V AC

Schneider LC1F630M7 | TeSys F Contactor – 3P (3 NO) – AC-3 ≤ 440 V 630 A – Coil 220 V AC

General Description:

The Schneider LC1F630M7 is a robust and reliable 3-pole contactor from the TeSys F series, designed for switching and controlling high-power electrical loads. With a high operational current of 630 A at 440 V AC (AC-3 category), it is ideal for demanding industrial applications such as motor control, power distribution, and automation.

Main Features:

• Contactor Configuration: 3-pole (3 Normally Open contacts)

• Utilization Category: AC-3 (for switching squirrel cage motors)

• Rated Operational Voltage: ≤ 440 V AC

• Rated Current (AC-3 at 440 V): 630 A

• Control Coil Voltage: 220 V AC

• Mounting Type: Panel mounting

• Auxiliary Contacts: Optional auxiliary blocks can be added

Technical Specifications:

• Product Family: TeSys F

• Standard Compliance: IEC 60947-4-1

• Rated Insulation Voltage (Ui): 1000 V

• Impulse Withstand Voltage (Uimp): 8 kV

• Electrical Durability: Up to 250,000 cycles

• Mechanical Durability: Up to 5 million cycles

• Operating Temperature Range: -5°C to +60°C

• Degree of Protection: IP20 (without enclosure)

Typical Applications:

• Large industrial motors

• Pumping systems

• Conveyor belts

• HVAC and refrigeration systems

• Electrical control panels and switchboards

Key Advantages:

• Handles very high current loads with ease

• High mechanical and electrical endurance

• Integrates seamlessly with Schneider’s TeSys protection and control systems

• Compact for its capacity, helping with space optimization

• Designed for reliability in intensive-duty environments
