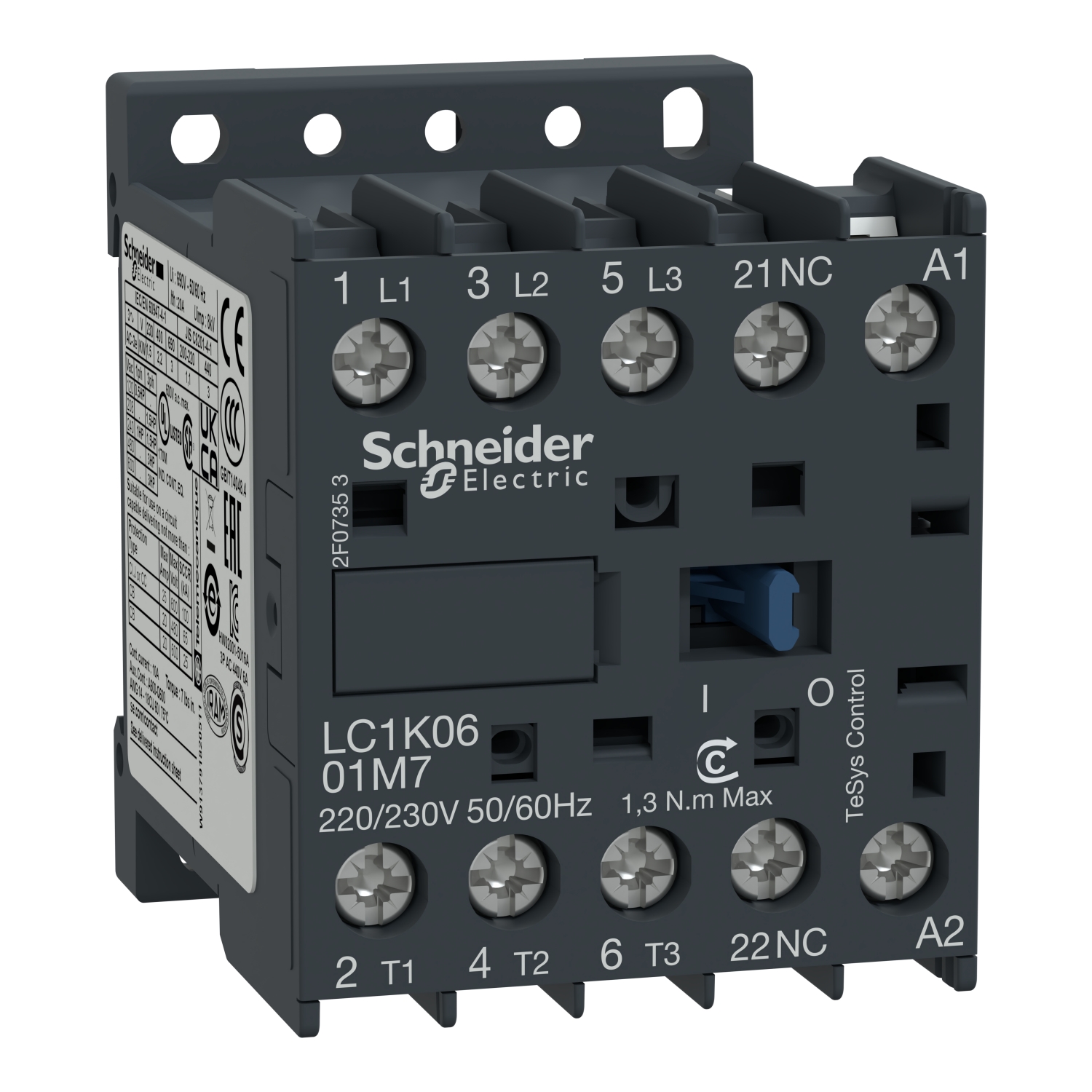

Schneider LC1K0601M7| TeSys K contactor – 3P – AC-3 <= 440 V 6 A – 1 NC aux. – 220…230 V AC coil
Schneider LC1K0601M7 | TeSys K Contactor – 6A, 3P, 1NC Aux, 220–230V AC Coil
General Description:
The Schneider LC1K0601M7 is a compact 3-pole contactor from the TeSys K series, designed for use in control systems where space is limited. It is suitable for switching motors and other AC loads up to 6 A in AC-3 category at voltages up to 440 V. It comes with 1 built-in normally closed (NC) auxiliary contact and is powered by a 220–230 V AC coil.
Key Features:
-
Product Type: Contactor
-
Series: TeSys K
-
Model: LC1K0601M7
-
Main Poles: 3P (3 main contacts)
-
Auxiliary Contact: 1 NC (Normally Closed)
-
Coil Voltage: 220–230 V AC (50/60 Hz)
Electrical Ratings:
-
Rated Operational Current (Ie): 6 A (AC-3 duty at ≤ 440 V)
-
Utilization Category: AC-3 (for motor control)
-
Power Rating: Suitable for small motors and resistive loads
-
Frequency: 50/60 Hz
Construction & Design:
-
Mounting: DIN rail or panel mounting
-
Terminals: Screw clamp type
-
Compact Dimensions: Ideal for space-constrained enclosures
-
Mechanical Durability: High – designed for frequent operation
-
Electrical Durability: Long service life under rated load
Advantages:
-
Space-saving design for compact panels
-
Built-in auxiliary contact simplifies wiring
-
High reliability and quick response
-
Conforms to international standards (IEC, UL, CSA)
Typical Applications:
-
Motor control panels
-
Industrial automation systems
-
HVAC units
-
Lighting and resistive load control
-
Building management systems
