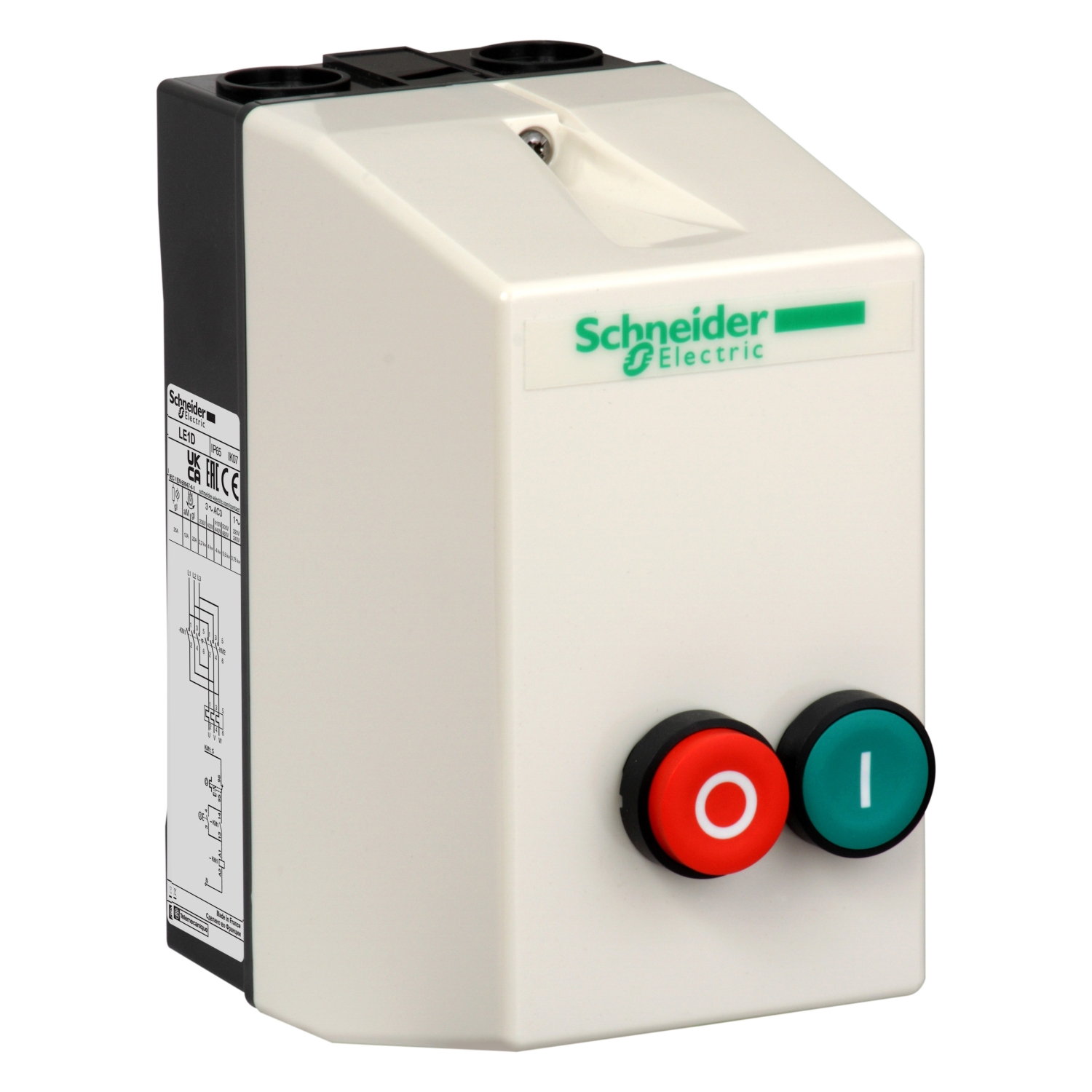

Schneider LE1D09Q7 | Enclosed DOL starter,TeSys LE,9A,380V AC coil,including 1 LC1D,2 pushbuttons

Schneider LE1D09Q7: Detailed Overview

The Schneider LE1D09Q7 is a direct-on-line (DOL) motor starter, designed for efficient and reliable motor control in industrial and commercial applications. As part of Schneider Electric’s TeSys D series, it integrates a contactor and thermal overload relay into a compact, pre-assembled solution, ensuring optimal performance and ease of installation.

Key Features of the Schneider LE1D09Q7

1. Pre-Assembled Convenience:
   The LE1D09Q7 comes as a ready-to-install motor starter, minimizing assembly time and simplifying wiring requirements.
2. Compact Design:
   Its space-saving design allows for installation in control panels with limited space while maintaining robust performance.
3. Integrated Protection:
   Features a thermal overload relay that safeguards motors against overcurrent and overheating, increasing motor lifespan.
4. Versatile Operation:
   Suitable for various motor sizes and applications, with compatibility for three-phase motors.
5. High Reliability:
   Engineered for durability, the LE1D09Q7 ensures long-term reliability in harsh industrial environments.

Technical Specifications

Applications of Schneider LE1D09Q7

The LE1D09Q7 is well-suited for a variety of motor control applications, including:

1. Industrial Machinery:
   Controls motors in production lines, presses, and industrial machines.
2. Water Pumping Systems:
   Ideal for managing motors in water pumps for agricultural or industrial use.
3. Conveying Systems:
   Provides reliable motor starting for conveyor belts and material handling systems.
4. HVAC Systems:
   Ensures efficient motor control in heating, ventilation, and air conditioning systems.

Advantages of Schneider LE1D09Q7

1. Ease of Use:
   Its pre-assembled configuration reduces installation time and simplifies the setup process.
2. Enhanced Motor Protection:
   The integrated thermal overload relay protects against overcurrent, ensuring system safety.
3. Space Efficiency:
   Compact design saves space in control panels, making it ideal for applications with limited room.
4. Global Standards Compliance:
   Certified to meet international safety and performance standards.

Installation and Configuration

1. Mounting Options:
   Can be easily installed on DIN rails or directly onto panels, offering flexible mounting solutions.
2. Wiring:
   Clear terminal markings and user-friendly connections ensure quick and error-free wiring.
3. Overload Relay Settings:
   The thermal overload relay can be adjusted to match the motor’s current rating, providing customized protection.
