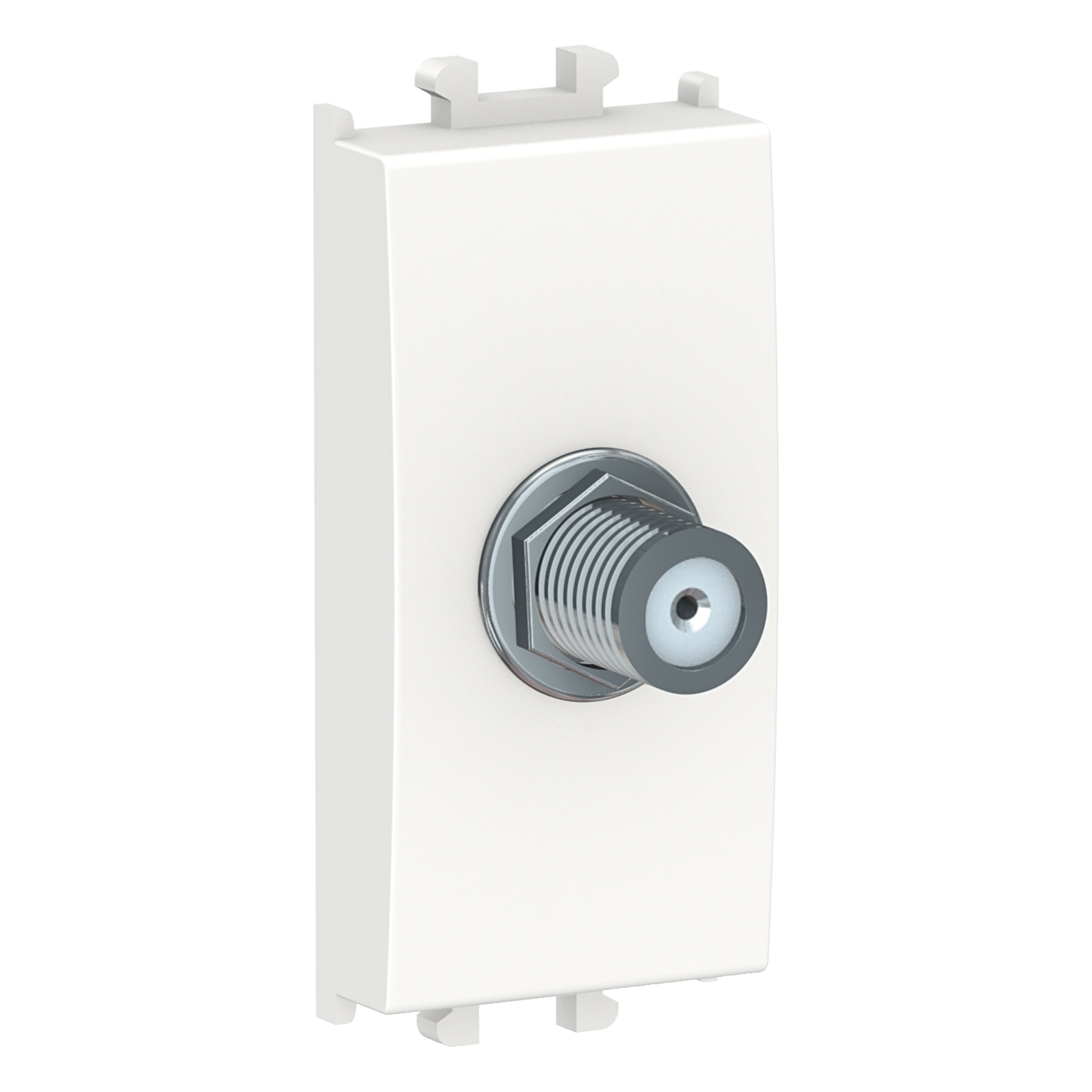

Schneider LMR6128001 | Easy Styl – 1 module Video SAT Socket Outlet – 1 gang – White
. Technical Specifications
-
Brand: Schneider Electric
-
Series: Easy Styl
-
Model Number: LMR6128001
-
Product Type: Video SAT (Satellite) Socket Outlet
-
Connector Type: Coaxial (F-type, female)
-
Signal Type: Satellite TV (SAT)
-
Number of Gangs: 1
-
Module Size: 1 module
-
Color: White (RAL 9003)
-
Mounting Type: Flush-mounted (modular)
-
Impedance: 75 Ohms (standard for satellite signals)
-
Frequency Range: Up to 2400 MHz (suitable for SAT TV)
-
Shielding: High shielding effectiveness for low signal loss
-
Material: UV-resistant thermoplastic
-
IP Rating: IP20 (indoor use only)
-
Operating Temperature: -5°C to +45°C
-
Standards Compliance:
-
IEC 61169-24 (for F-type connectors)
-
CE and RoHS compliant
-
. Key Features
-
F-type coaxial connector for satellite dish and decoder connections
-
Compact 1-module design fits into standard Easy Styl wall frames
-
High-frequency performance supports satellite signal transmission up to 2400 MHz
-
Minimal signal loss and high shielding for consistent TV reception
-
Clean and modern white finish integrates with contemporary interiors
-
Tool-free installation using snap-in modular mounting
. Typical Applications
This socket outlet is ideal for:
-
Home satellite TV systems (direct to decoder or satellite receiver)
-
Apartment buildings and villas with satellite infrastructure
-
Commercial and hospitality installations (hotels, conference rooms)
-
Media rooms and entertainment systems
-
Multi-room TV distribution setups
